Hitachi Part #/MPN: 0F14688
DiscTech Item #: HIT-0F14688-BN-OE
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 171
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 64MB

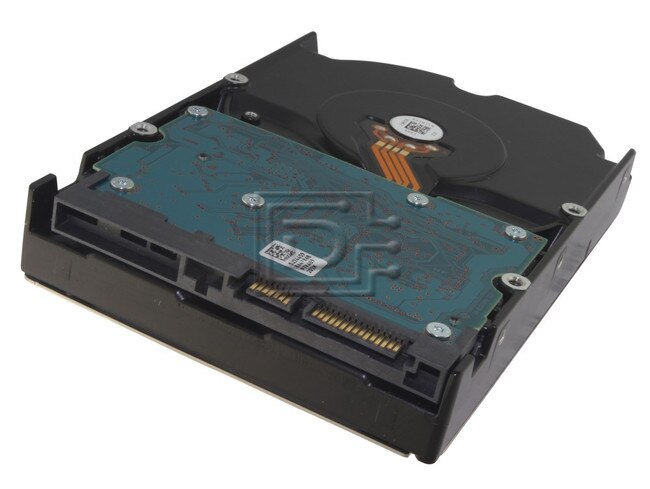

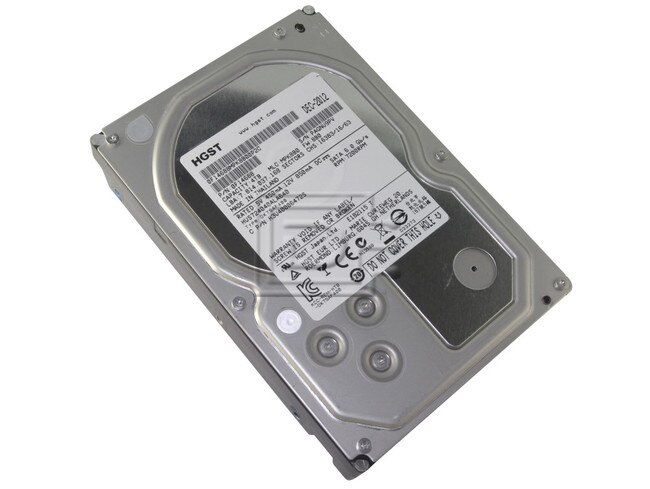

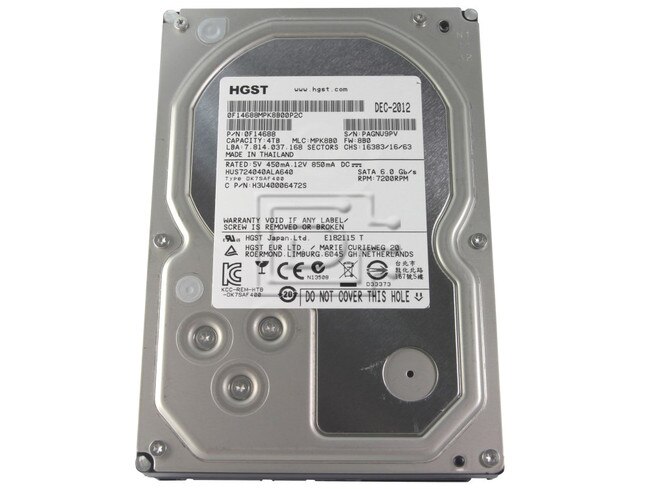

Hitachi Ultrastar 7K4000 0F14688 / HUS724040ALA640 4000GB / 4TB 7.2K SATA Hard Disk Drive - Brand New
Delivering Industry-Leading Quality and Reliability
HGST Ultrastar™ 7K4000 is the world’s first 4TB 7200 RPM hard drive with a 2.0 million hours MTBF specification and backed by a full 5-year warranty. Ultrastar 7K4000 represents the sixth-generation HGST 5-platter design, which has been field proven by top server and storage OEMs and Internet giants. Engineered for the highest quality, the Ultrastar 7K4000 is put through grueling design tests during development and must pass stringent ongoing reliability testing during manufacturing. Ultrastar 7K4000 delivers by reducing downtime, eliminating service calls and minimizing TCO.
Increasing Capacity Density by One Third
To deal with the explosive petabyte (PB) growth, data centers require large amounts of efficient storage. Reducing W/GB without expanding floor space is vital to lowering operating costs. To meet these demands, Ultrastar 7K4000 delivers 33% more capacity in the same footprint at 24% lower W/GB than its predecessor, Ultrastar 7K3000. Now you can get 2.4 PB in the footprint of a standard 19-inch enterprise storage rack by stacking ten 4U, 60- bay enclosures. Ultrastar 7K4000 is an Advanced Format* drive, using 4096-byte sector size to provide enormous capacity earlier than otherwise possible for environments optimized for this technology. Advanced Format drives are backwards compatible with legacy 512-byte sector size by offering built-in 512-byte emulation through the SATA interface.
Combining 7200 RPM Performance and Granular Power Control
Operating at 7200 RPM, Ultrastar 7K4000 offers better overall performance than slower RPM capacity-oriented drives, and does so at impressively low power-consumption rates. The Ultrastar 7K4000 can help data centers achieve lower AC power and HVAC requirements. With five Advanced Power Management modes, the 7K4000 achieves a 59% reduction in watts during low RPM idle mode, and uses less than 1W during standby/sleep modes, freeing up precious headroom for growing enterprise needs.
Innovating for a More Sustainable Environment
The Ultrastar 7K4000, with its halogen-free design and power-efficient operation, qualifies for the HGST EcoTrac classification, which identifies products that minimize environmental impact in the areas of product design, manufacturing, operation and disposal.
Alternate Part Numbers: GCHH1 0GCHH1
This drive is compatible with any system that uses SATA drives.
|Capacity (GB) at 512 Bytes/secotr|
|Sector size (bytes)|
|Max. areal density (Gbits/sq. in)|
|Data buffer (MB)||64|
|Rotational speed (RPM)||7200|
|Interface transfer rate (MB/sec, max)||600|
|Sustained transfer rate (MB/sec, typical)||171|
|Seek time (read, ms, typical)||8.0|
|Error rate (non-recoverable, bits read)||1 in 1015|
|Load/unload cycles (at 40° C)||600,000|
|Availability (hrs/day x days/wk)||24/7|
|Targeted MTBF (M hours)||2.0|
|Idle (Bels, typical)||2.9|
|Requirement||+5 VDC (+/-5%)|
+12 VDC (+10%/-8%)
|Startup current (A, max)||1.2 (+5V), 2.0 (+12V)|
|Unload idle (W)||5.7|
|z-height (mm, max)||26.1|
|Dimensions (width x depth, mm)||101.6 (+/-0.25) x 147|
|Weight (g, typical)||690|
|Ambient temperature||5° to 60° C|
|Shock (half-sine wave 2 ms, G)||70|
|Vibration, random (G RMS 5 to 500 Hz)||0.67 (XYZ)|
|Ambient temperature||-40° to 70° C|
|Shock (half-sine wave 2 ms, G)||300|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUS724040ALA640
Weight: 1.8 lb
Warranty: 1 Year DiscTech
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
