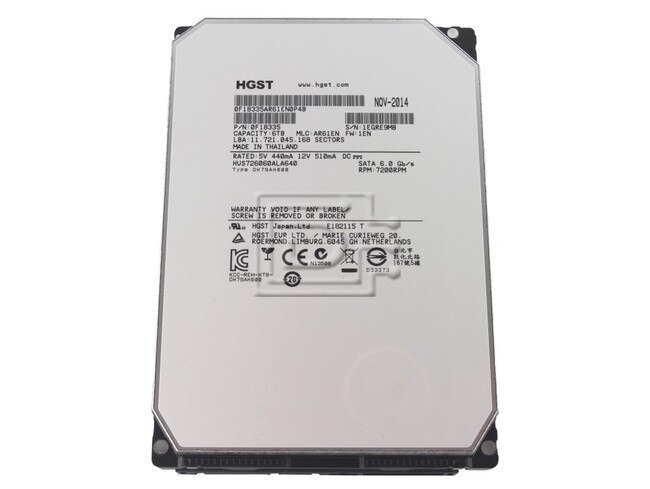

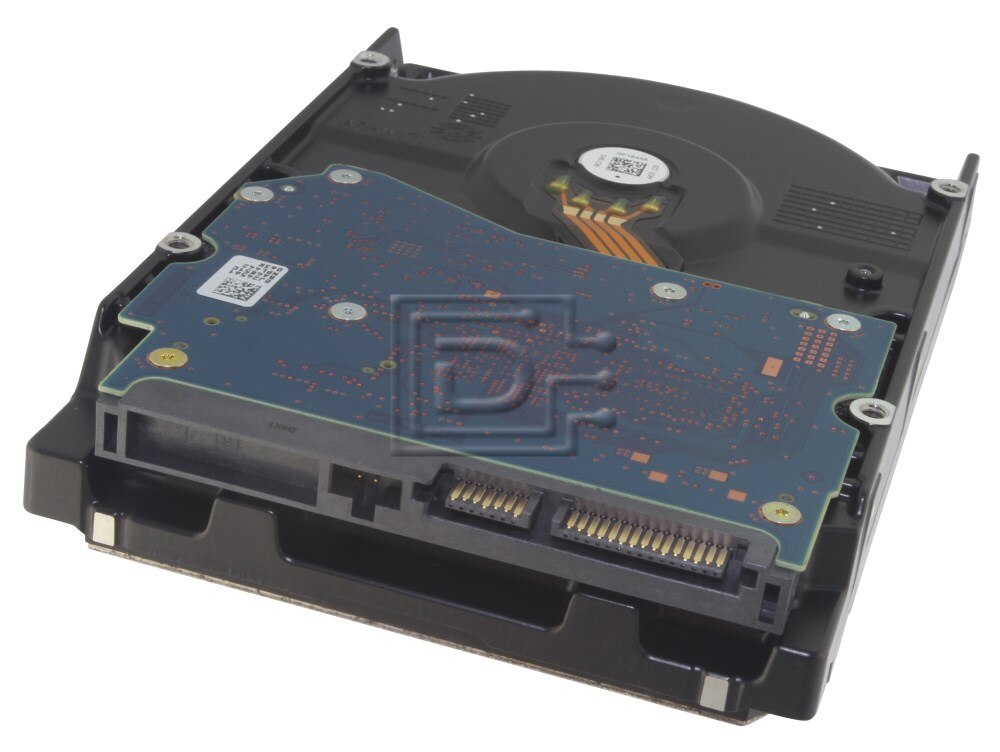

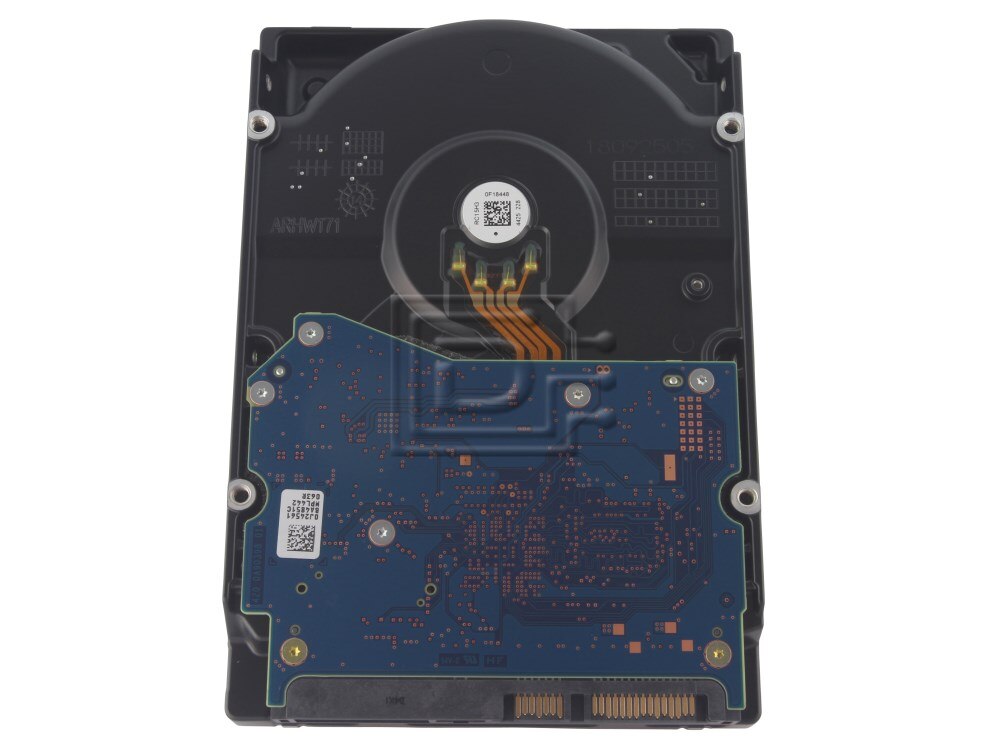

Hitachi Ultrastar He6 0F18335 HUS726060ALA640 6TB SATA Hard Drive
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 6TB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 600 - 6Gbps |
| RAM: | 64MB |
Description
Hitachi Ultrastar He6 0F18335 / HUS726060ALA640 6000GB / 6TB 7.2K SATA Hard Drive - New Pull
Hitachi Ultrastar He6 Enterprise Hard Drive
- World’s first helium HDD – Patented HelioSeal™ technology enables this new building block for future growth
- Industry’s first 6TB HDD – Innovative 7Stac™ disk design enables the world’s highest capacity
- TCOptimized™ platform – Delivers higher capacity, lower power, cooler and quieter operation in a standard 3.5-inch form factor
Innovation for Next-generation, High-density Data Centers
HGST delivers the world’s first hermetically sealed, helium hard drive, the Ultrastar® He6 for massive scale-out environments. Why does helium make a difference? Helium has only one-seventh the density of air. Replacing air with helium inside a hard drive dramatically reduces the turbulence caused by the spinning disk, cuts power consumption and results in a lower temperature within the disk drive.
The reduction in turbulence for the spinning disk allows HGST to offer a seven-disk design in a traditional 3.5-inch form factor. In addition to being the world’s first helium-filled hard drive, HGST Ultrastar He6 is also the first hard drive in the industry to offer a 6 terabyte capacity. This design offers a 50% capacity gain and still reduces the energy needed to run the drive by up to 23%
TCOptimized - Driving Down Data Center TCO with Helium
The amount of data that companies need to store is growing exponentially, but IT budgets remain flat. With 6TB, a low 5.3 idle watts, a reduced weight of 640g, and running at 4-5°C cooler, the new Ultrastar He6 lowers data center TCO on virtually every level. Key TCO benefits when compared to a typical 3.5-inch, five-platter, air-filled 4TB drive include:
- 50% More Capacity
- 23% Lower Idle Power
- 49% Better Watts/TB
- 30% Quieter Operation
- 4° Cooler Operation
- 50g Lighter Weight
HelioSeal
Innovative and patented technology to hermetically seal helium in the HDD
7Stac
Proprietary high-density 7 disks packed in a standard 1-inch high form factor for 3.5-inch HDDs
- Choose Ultrastar He6 for these Enterprise Applications & Environments
- High-density data centers
- Massive scale-out data centers
- Containerized data centers
- Nearline storage applications
- Bulk storage
- Enterprise and data center applications where density and capacity are paramount
Compatibility:
This drive is compatible with any system that uses SATA drives.
Specifications
| Model(s) | HUS726060ALS640 HUS726060ALS641 HUS726060ALS644 | HUS726060ALA640 HUS726060ALA641 |
|---|---|---|
| Interface | SAS 6Gb/s | SATA 6Gb/s |
| Capacity (GB) | 6TB | 6TB |
| Form Factor | 3.5-inch HDD | 3.5-inch HDD |
| Sector Size | 512n | 512n |
Performance | ||
Reliability | ||
| MTBF (M hours) | 2.0 | 2.0 |
Acoustics | ||
| Idle (Bels) | 2.0 | 2.0 |
Power | ||
| Dissipation: Active Idle (W, Avg) | 5.7 | 5.3 |
Physical size | ||
| Z-Height (mm) | 26.1 | 26.1 |
| Dimensions (width x depth, mm) | 101.6(+/-0.25)x147 | 101.6(+/-0.25)x147 |
| Weight (g, max) | 640 | 640 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HUS726060ALA640 HUS726060ALA641
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Condition
New Pull
Warranty
5 Year Manufacturer Warranty
