IBM Part #/MPN: 40K1052
DiscTech Item #: IBM-40K1052-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:5Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 73GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 4.5 / 5.1
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 8MB

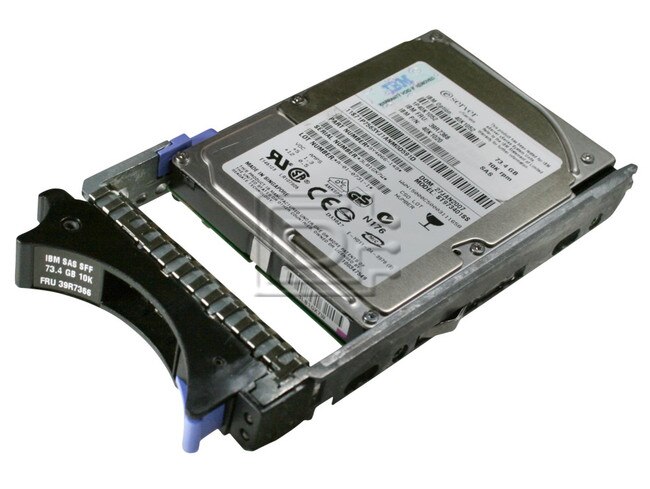

IBM 40K1052 73GB 10K 3.0Gbps SFF Serial SCSI / SAS Hot-Swap Hard Drive - New Pull
This drive is the first 2.5-inch enterprise disc drive, making possible a new class of high I/O, high-density storage solutions. These drives enable space-constrained data centers to achieve higher IOPs (input/output per second) performance in small form factor system configurations while maintaining the highest levels of reliability.
IBM p/n: 39R7393 39R7389
Compatibility:
| System x x3200 | |||
| System x x3200 M2 | System x x3250 | System x x3250 M2 | System x x3350 |
| System x x3400 | System x x3455 | System x x3500 | System x x3550 |
| System x x3600 | System x x3650 | System x x3655 | System x x3700 |
| System x x3755 | System x x3800 | System x x3850 | System x x3850 M2 |
| System x x3950 | System x x3950 M2 | System x x3950E |
| Specifications | 73.4 GB |
|---|---|
| Model Number | 40K1052 |
| Interface | SAS 3Gb/s |
| PHYSICAL | |
| Height (max) | 14.81 mm (0.583 inches) |
| Width (max) | 70.1 mm (2.76 inches) |
| Length (max) | 111.7 mm (4.40 inches) |
| Weight (typical) | 220 grams (0.49 pounds) |
| Cache | 8 MBytes |
| Capacity | 73.4 GB |
| Guaranteed Sectors | 143,374,744 |
| Number of pins on the I/O connector | 7 |
| Total tracks per surface | 51,052 |
| PERFORMANCE | |
| Spindle Speed | 10,000 rpm |
| Average latency | 3.00 msec |
| Random read seek time | 4.70 msec |
| Random write seek time | 5.10 msec |
| RELIABILITY | |
| MTBF | 1,400,000 hours |
| Power-on hours | 8,760 hours |
| Unrecoverable read errors | 1 in 10^15 |
| Recoverable read errors | 10 in 10^12 |
| ENVIRONMENT | |
| Temperature | |
| Ambient operating temperature (min) | 5 degrees C |
| Ambient operating temperature (max) | 55 degrees C |
| Ambient nonoperating temperature (min) | -40 degrees C |
| Ambient nonoperating temperature (max) | 70 degrees C |
| Maximum operating temperature change | 20 degrees C per hour |
| Maximum nonoperating temperature change | 20 degrees C per hour |
| Maximum operating case temperature | 60 degrees C |
| Humidity | |
| Minimum Relative humidity (operating) | 5 % |
| Maximum Relative humidity (operating) | 95 % |
| Minimum Relative humidity (nonoperating) | 5 % |
| Maximum Relative humidity (nonoperating) | 95 % |
| Maximum allowable humidity change | 20 % per hour |
| Altitude | |
| Operating altitude (min) | -305 meters |
| Operating altitude (min) | -1,000 feet |
| Operating altitude (max) | 3,048 meters |
| Operating altitude (max) | 10,000 feet |
| Nonoperating altitude (min) | -305 meters |
| Nonoperating altitude (min) | -1,000 feet |
| Nonoperating altitude (max) | 12,210 meters |
| Nonoperating altitude (max) | 40,000 feet |
| Shock | |
| Vibration | |
| Operating Shock (max) | 20 Gs |
| Operating shock | 2 msec |
| Nonoperating Shock (max) | 275 Gs |
| Nonoperating shock | 2 msec |
| Operating vibration | 1.0 Gs |
| Operating vibration | 5 to 500 Hz |
| Nonoperating vibration | 3.00 Gs |
| Nonoperating vibration | 5 to 500 Hz |
| ACOUSTICS | |
| Acoustics (Idle Volume) | 3.5 bels |
Alternate MPNs: 39R7393 39R7389
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
