IBM 46C9037 ServeRAID MR10i Adapter PCI-E RAID Controller

IBM Part #/MPN: 46C9037

DiscTech Item #: IBM-46C9037-BN-OE


$169.00
$169.00

Interface Types: SAS Serial Attached SCSI, SFF-8087

Electrical Interface: SAS Serial Attached SCSI - 3.0Gbps

On-Board Cache: 256MB

IBM 46C9037 ServeRAID MR10i Adapter PCI-E 3Gbps SAS / SATA RAID Controller 256MB - Brand New IBM 46C9037 ServeRAID MR10i Adapter PCI-E 3Gbps SAS / SATA RAID Controller 256MB - Brand New

The ServeRAID-MR10i SAS/SATA Controller is a low-cost PCIe RAID controller for Internal System RAID 0, 1, 10, 5, 50, 6, and 60.

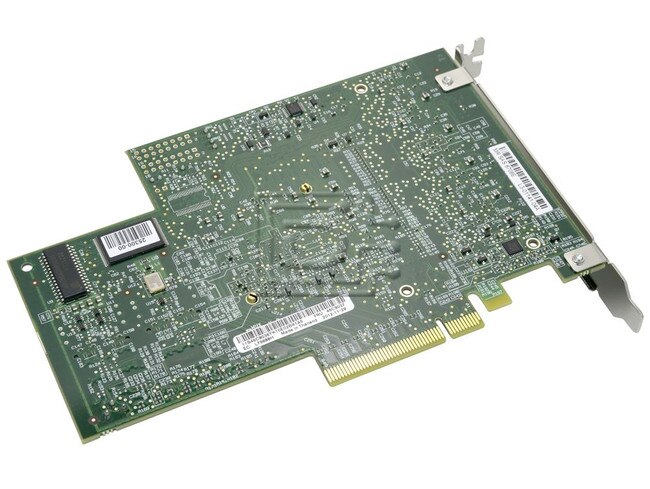

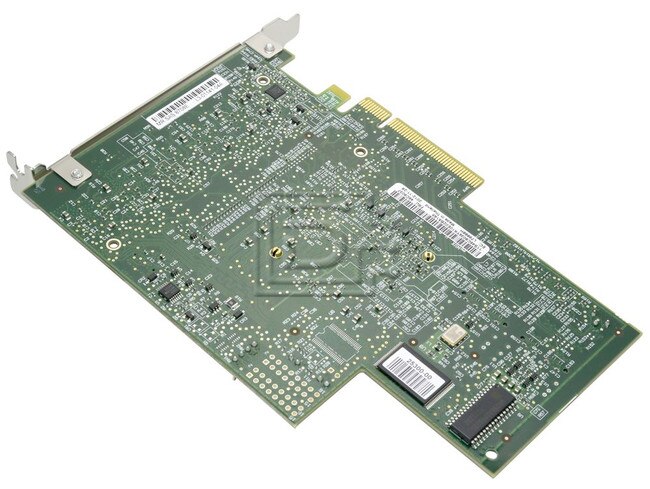

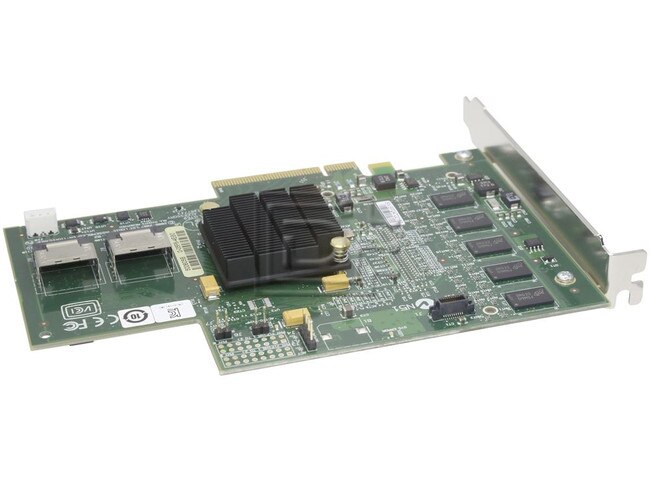

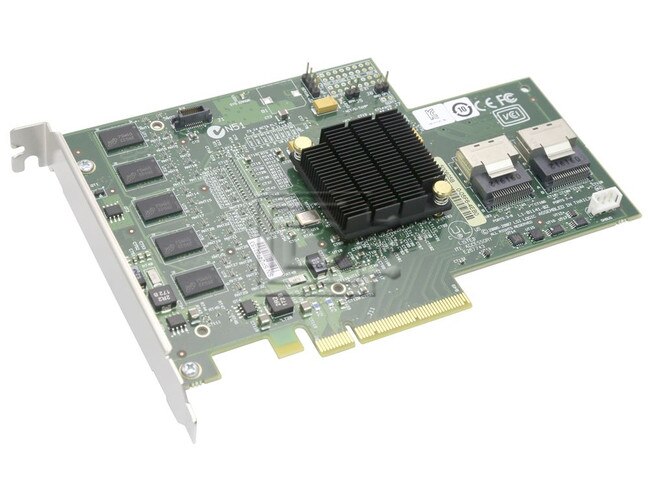

This full-height, half-length adapter uses an LSI 1078 controller with an x8 PCI Express host interface and eight internal SAS/SATA II 3 Gb/s ports. MegaRAID Storage Manager (MSM), included with ServeRAID-MR10i, is a robust RAID management, configuration, and reporting application.

Compatibility:

IBM X3650 M3 (Types 4255, 7945, 7949)
IBM X3550 M3 (Types 4254, 7944)

Specifications

The ServeRAID-MR10i SAS/SATA Controller has the following specifications:
  • Full-height (3U), half-length card
  • Two internal x4 SFF-8087 connectors
  • PCI Express x8 host interface
  • SAS Controller: LSI 1078e
  • 3 Gbps per port data transfer rate
  • Supports SAS 3 Gbps and SATA 2
  • 256 MB cache
  • Optional battery backup; two options: NiMH (now withdrawn from marketing) or Li-Ion (Battery Not Included)
  • Maximum stripe size: 1024 KB
  • RAID levels : RAID 0, 1, 5, 6, 10, 50, and 60
Note: Not all servers that support this controller also support the battery. See ServerProven for details.


Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 43W4297 L3-01141-04A MR-SAS-8708E

Weight: 1.5 lb

Warranty: 1 Year DiscTech

Brand New
