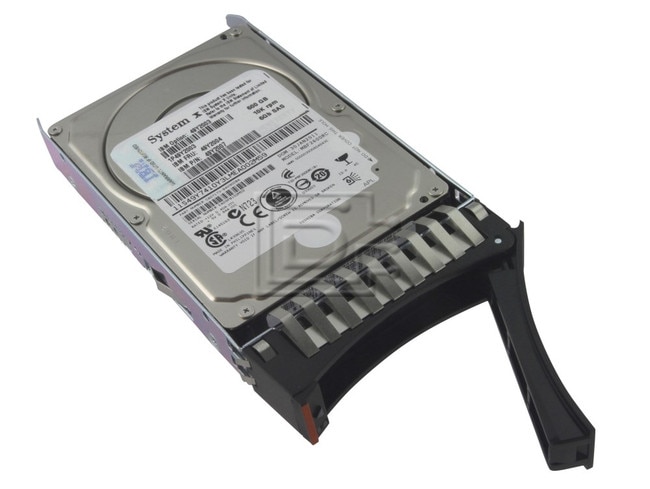

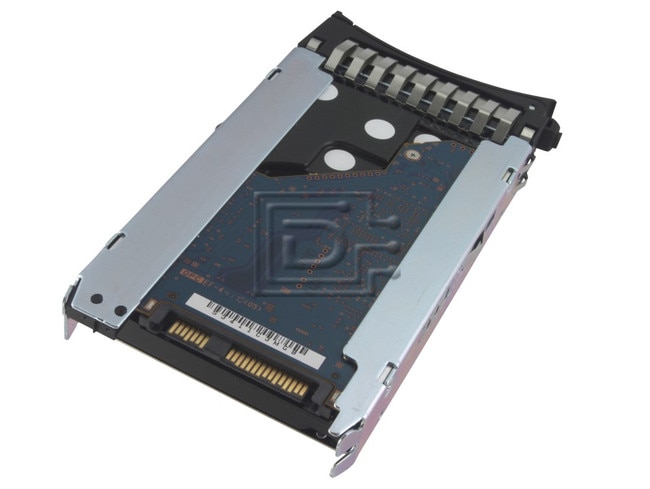

IBM 49Y2003 SFF SAS Hard Drive

IBM Part #/MPN: 49Y2003

DiscTech Item #: IBM-49Y2003-BN-OE


Enterprise Grade

Capacity: 600GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

IBM Original 49Y2003 600GB 10K 6.0Gbps SFF Serial SCSI / SAS Hard Drive - Brand New

This 2.5-inch enterprise disc drive makes possible a new class of high I/O, high-density storage solutions. Space-constrained data centers are enabled to achieve higher IOPs (input/output per second) performance in small form factor system configurations while maintaining the highest levels of reliability.

These drives combine giant magnetoresistive (GMR) heads, partial response/maximum likelihood (PRML) read channel electronics, embedded servo technology, and a Serial Attached SCSI (SAS) interface to provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers. The Serial Attached SCSI interface is designed to meet next-generation computing demands for performance, scalability, flexibility and high-density storage requirements.

Alt PN: 49Y2007 CAD7173-B40900BA 49Y2003KQ02AA9


BladeCenter HS12BladeCenter HS22System x x3100 M4System x x3200 M3
System x x3250 M3System x x3250 M4System x x3300 M4System x x3400 M2
System x X3400 M3System x x3500 M2System x x3500 M3System x x3500 M4
System x x3530 M4System x x3550 M2System x x3550 M3System x x3550 M4
System x x3630 M3System x x3630 M4System x x3650 M2System x x3650 M3
System x x3650 M4System x x3690 X5System x x3750 M4System x x3850 X5
System x x3950 X5

Specifications600 GB
Model Number49Y2003
Interface6-Gb/s SAS
Average Latency3.0 ms
Width (in/mm)2.755/69.68
Depth (in/mm)3.945/100.2
Weight (lb/kg)0.459/0.208

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 49Y2007 CAD7173-B40900BA 49Y2003KQ02AA9 49Y2003-D4

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
