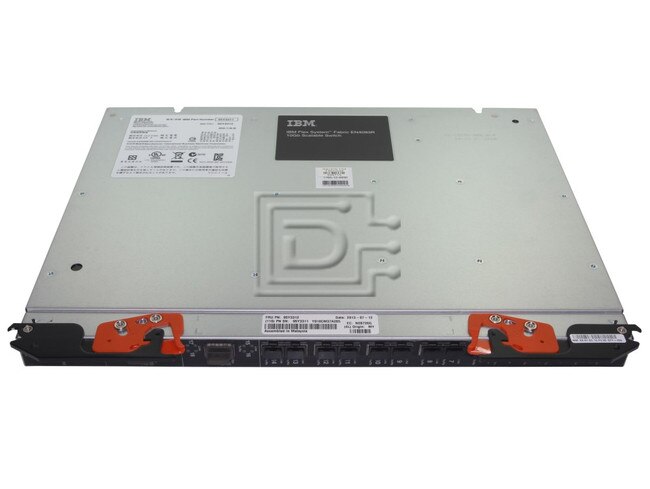

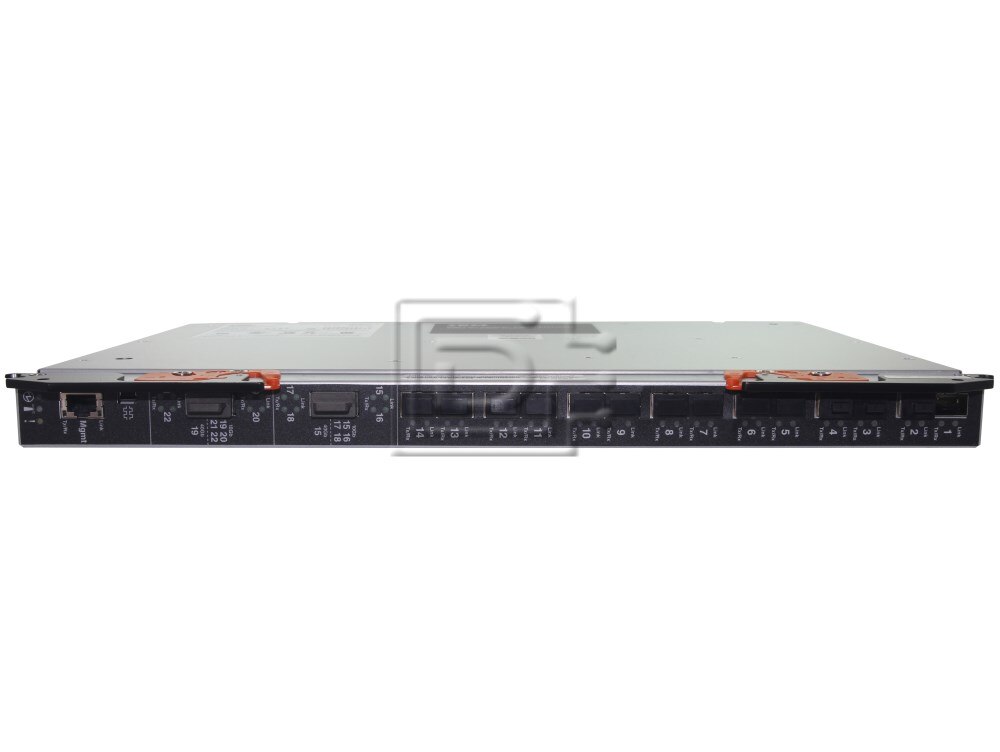

IBM Flex System Fabric EN4093R 95Y3309 10Gb Switch

IBM Part #/MPN: 95Y3309

DiscTech Item #: IBM-95Y3309-NP-OE


$4,850.00
$4,850.00

Interface Types: Ethernet RJ45, SFP

Electrical Interface: Ethernet 10Gigabit - 10Gbps

On-Board Cache: 8MB

Bays/Ports/Slots: 24

IBM Flex System Fabric EN4093R 95Y3309 10Gb Scalable Switch - New Pull

Provides unmatched Ethernet scalability and performance, while delivering innovations to help address a number of networking concerns today and providing capabilities that will better prepare companies for the future.Provides unmatched Ethernet scalability and performance, while delivering innovations to help address a number of networking concerns today and providing capabilities that will better prepare companies for the future.

  • Up to 42 internal 10 Gb ports, 14 external 10 Gb SFP+ ports and two x 40 Gb QSFP+ external uplinks
  • Flexible port mapping offers dynamic configuration of active ports Technology
  • 40 Gb, 10 Gb and 1 Gb Ethernet
  • Industry standards and simple interoperability with existing networks
  • IBM p/n: 95Y3309 95Y3311 95Y3312

      Highlights

  • “Pay-as-you-grow” scalability with the ability to turn on additional 10 Gb or 40 Gb ports
  • Flexible port mapping allows clients to dynamically configure active ports
  • Reduce cost and complexity via network convergence, stacking and Virtual Fabric
  • Performance and low latency with 1.28 Tbps and less than 1 microsecond latency
  • Investment protection when migrating from 1 Gb to 10 Gb and to a converged network
  • Designed for Fibre Channel over Ethernet (FCoE) as a transit switch, where FC is broken out further upstream in the network
  • Your IT department faces a number of challenges in preparing for the future. Some of those key areas are around virtualization and reducing cost and complexity, while automating things like VM mobility. At the same time you need technologies that are more tightly integrated, while also providing investment protection for the transition to cloud computing.

    The IBM® Flex System® Fabric EN4093R 10 Gb Scalable Switch provides unmatched scalability and performance, while also delivering innovations to help address a number of networking concerns today and providing capabilities that will help you prepare for the future.

      Hardware Summary

  • Up to 42 internal 10 Gb ports, 14 external 10 Gb SFP+ ports and two x 40 Gb QSFP+ external ports
  • Flexible port mapping offers dynamic configuration of active ports.
  • 40 Gb, 10 Gb and 1 Gb Ethernet
  • Industry standards and simple interoperability with existing networks
  • General

    Device TypeSwitch - 24 ports - L3 - managed - stackable
    Enclosure TypePlug-in module
    Subtype10 Gigabit Ethernet
    Ports14 x 10 Gigabit Ethernet + 10 x 10 Gigabit Ethernet SFP+ / 1 Gigabit Ethernet SFP+
    PerformanceAggregate throughput : 1.28 Tbps
    CapacityAccess control entries : 128000 Virtual interfaces (VLANs) : 4095 IPv4 routes (static) : 128 IPv4 routing table entries : 2048 IPv6 routes (static) : 128 ACL : 896
    Jumbo Frame Support9216 bytes
    Max Units In A Stack8
    Fibre ChannelFC-BB-5
    Routing ProtocolBGP-4, RIP-1, RIP-2, IGMP, OSPFv2, PIM-SM, PIM-DM, OSPFv3, static IPv4 routing, static IPv6 routing
    Remote Management ProtocolSNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, SSH, CLI
    Authentication MethodRADIUS, TACACS+, LDAP
    FeaturesBOOTP support, LDAP support, VLAN support, IGMP snooping, traffic shaping, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, priority-based flow control, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, IPv4 support, Link Aggregation Control Protocol (LACP), Per-VLAN Rapid Spanning Tree (PVRST), port based access control, static routing, Converged Enhanced Ethernet (CEE), Switch Partition (SPAR), Edge Virtual Bridging (EVB), IGMP filtering, Virtual Station Interface Data Base (VSIDB) support, OpenFlow support
    Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg
    Status IndicatorsLink activity, link OK

    Expansion / Connectivity

    Interfaces10 x 10Gbit LAN - SFP+ - uplink 4 x 10Gbit LAN - SFP+ - Ports on Demand / uplink 2 x 40Gbit LAN - QSFP+ - Ports on Demand / uplink 14 x 10Gbit LAN - downlink 28 x 10Gbit LAN - Ports on Demand / downlink 1 x management (mini-USB) 1 x management (Gigabit LAN)

    Miscellaneous

    Compliant StandardsCISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, FCC CFR47 Part 15 B, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR22:2006 Class A

    Dimensions & Weight

    Width15.8 in
    Depth12.5 in
    Height1.2 in
    Weight8.2 lbs


    Click here to view the manufacturer's item description/brochure

    Alternate MPNs: 95Y3311 95Y3312

    Weight: 15 lb

    Warranty: 1 Year DiscTech

    New Pull

    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
