IBM / Hitachi Fibre / Fiber Channel Hard Drive 08K2096

HGST Part #/MPN: 08K2096

DiscTech Item #: HIT-08K2096-FR-OE


$139.00
$139.00

Enterprise Grade

Capacity: 73GB

Speed: 10,000RPM

Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 4.9 / 5.4

Electrical Interface: FC-AL - 2Gbps

On-Board Cache: 16MB

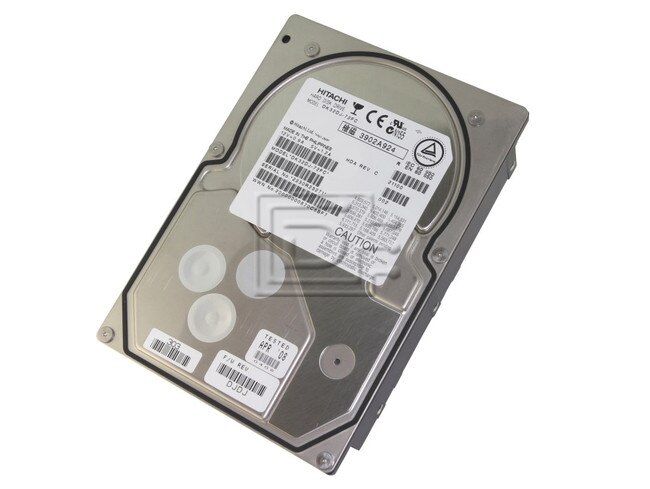

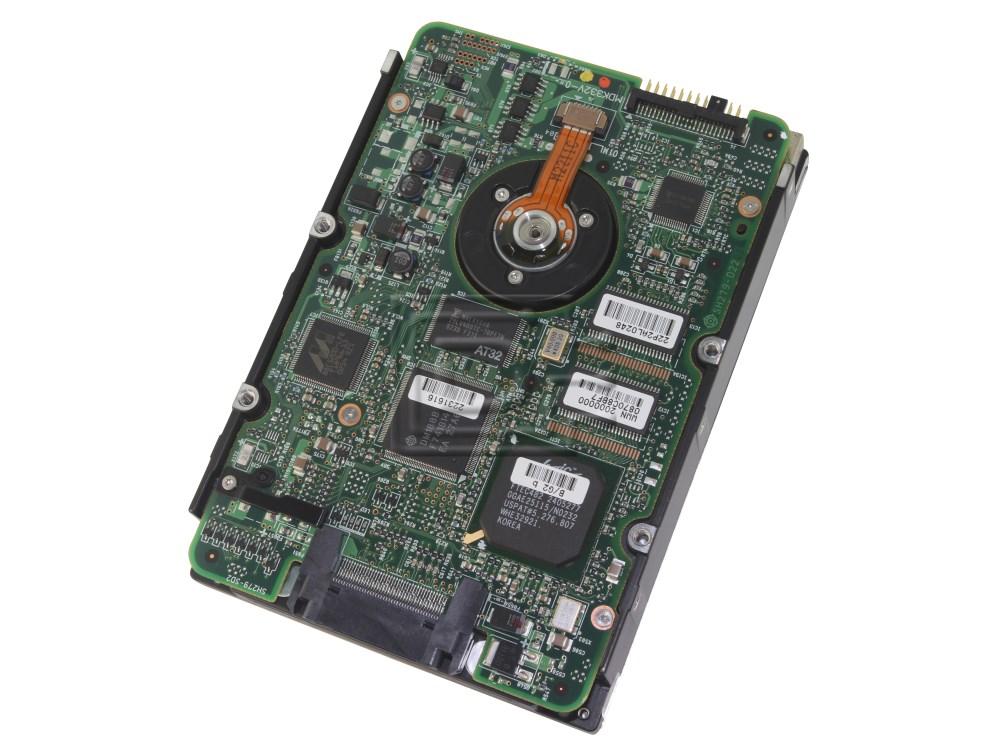

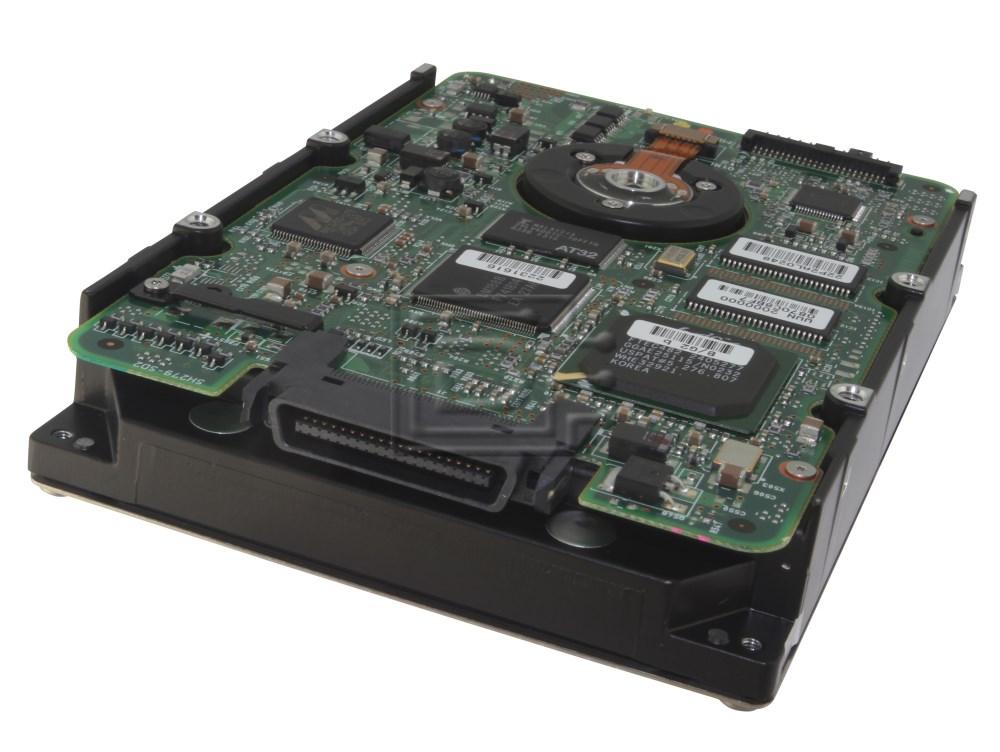

IBM / Hitachi DK32DJ 08K2096 / DK32DJ-72FC 73GB 10K 2Gbps 40pin FC-AL Fibre Channel Hard Drive - Factory Refurbished

Ultrastar DK32DJ 08K2096 / DK32DJ-72FC Hard Drive offers high capacity and a diversity of interface options that are required for today's evolving high-performance storage market. Hitachi delivers both with a 3.5-inch family of drives offering up to 73.9GB capacities using Ultra SCSI, LVD, and Fibre Channel interfaces. The drives are designed for high throughput operating environments, such as network and Internet servers, multimedia production and digital video processing. Features such as MR heads, GMEEPRML read channels and disc speeds of 10,025 RPM enable Hitachi's 3.5-inch drives to support these high data transfer needs.

Model : DK32DJ-72FC / JURA-D


Compatibility:

This drive is compatible with any of our Fibre / Fiber Channel controllers and hot-swap trays.

Specifications
Model number 08K2096 / DK32DJ-72FC
Model Name DK32DJ-72
Formatted Capacity 73 Gbytes
Rotational Speed 10,000 rpm
Default Buffer (cache) Size 16 Mbytes
Number of Discs (physical) 2
Performance
Internal Transfer Rate (max) 74 MB/sec
External (I/O) Transfer Rate (max) 200 MBytes/sec
Average Latency 2.99 msec
Physical
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 26.1 mm
Width 101.6 mm
Length 147.0 mm
Weight 500 g
Environmental
Max Operating Shock (2-msec) 15 Gs
Max Nonoperating Shock (2-msec) 250 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Reliability
Nonrecoverable Read Errors 1 per 10^16 bits read

Click here to view the manufacturer's item description/brochure

Alternate MPNs: DK32DJ-72FC

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
