Hitachi Part #/MPN: 0B22142
DiscTech Item #: HIT-0B22142-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:20Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 73GB
Speed: 15,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 72 - 123
Average Seek Time: 3.6
Electrical Interface: FC-AL - 4Gbps
On-Board Cache: 16MB

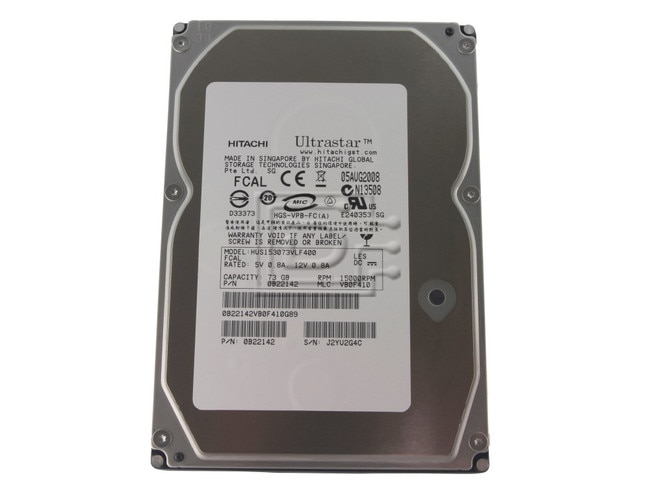

Hitachi 15K300 0B22142 / HUS153073VLF400 73GB 15K 4Gbps 40pin FC-AL Fibre Channel Hard Drive - Brand New
Built upon proven technology
Hitachi’s next-generation 3.5-inch 15,000 RPM hard drive delivers the performance and reliability required for mission-critical enterprise computing environments. Leveraging the proven system architecture and electronics of the previous generation, the Ultrastar™ 15K300 provides up to 300GB capacity, 16MB cache and Ultra320 SCSI, 3Gb/s Serial Attached SCSI (SAS) and 4Gb/s Fibre Channel interfaces. These features make the Ultrastar 15K300 the ideal solution for demanding enterprise computing environments like online transaction processing, intensive data analysis and other multi-user applications. The mature design of the Ultrastar 15K300 helps to ensure shorter qualifi cation times.
Demonstrated reliability
Key reliablility features have been built into the Ultrastar 15K300. Rotational Vibration Safeguard (RVS) technology ensures drive performance in multi-drive systems where rotational vibration is likely to occur. Hitachi’s Thermal Fly-height Control (TFC) capability maintains a consistent fl y-height during the read/write process ensuring a better soft error rate and end-to-end data protection enhances error detection for optimal data integrity. Finally, Hitachi offers the only enterprise-class hard drive utilizing a head load/unload ramp to help minimize drive failures as a result of handling during integration.
Model : HUS153073VLF400 / VIPER-B
Compatibility:
This drive is compatible with any of our Fibre / Fiber Channel controllers and hot-swap trays
| Specifications | |
|---|---|
| Model number | 0B22142 / HUS153073VLF400 |
| Model Name | 15K300 |
| Formatted Capacity | 73 Gbytes |
| Rotational Speed | 15,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Number of Discs (physical) | 1 |
| Number of Heads (physical) | 2 |
| Performance | |
| Internal Transfer Rate (max) | 1441 Mbits/sec |
| External (I/O) Transfer Rate (max) | 425 MBytes/sec |
| Sustained Transfer Rate | 72 - 123 MBytes/sec |
| Average Latency | 2.0 msec |
| Physical | |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.8 mm |
| Width | 101.6 mm |
| Length | 146.2 mm |
| Weight | 745 g |
| Electrical | |
| Power (Idle) | 8.9 watts |
| Power (Operating) | 14.0 watts |
| Environmental | |
| Max Operating Shock (2-msec) | 30 Gs |
| Max Nonoperating Shock (2-msec) | 250 Gs |
| Operating Vibration (max) | 1.2 Gs |
| Nonoperating Vibration (max) | 1.04 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Reliability | |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: HUS153073VLF400
