IBM / Lenovo 00AJ025 240GB SATA Solid State Drive Kit 46M2770

IBM Part #/MPN: 00AJ025

DiscTech Item #: IBM-00AJ025-BN-OE


Enterprise Grade

Capacity: 240GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 500/260

Average Seek Time: 50/65

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

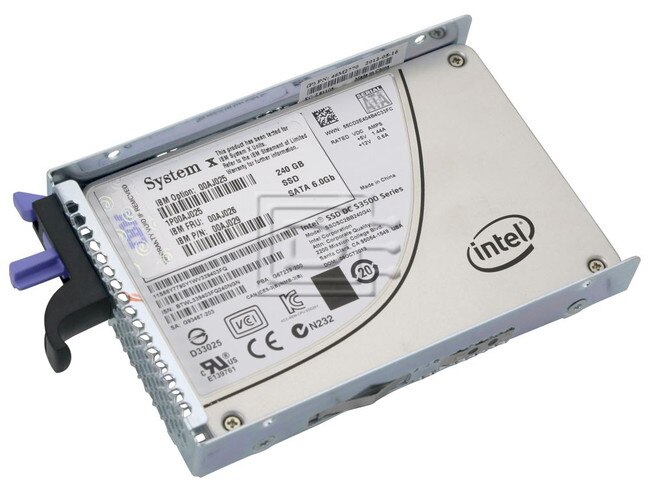

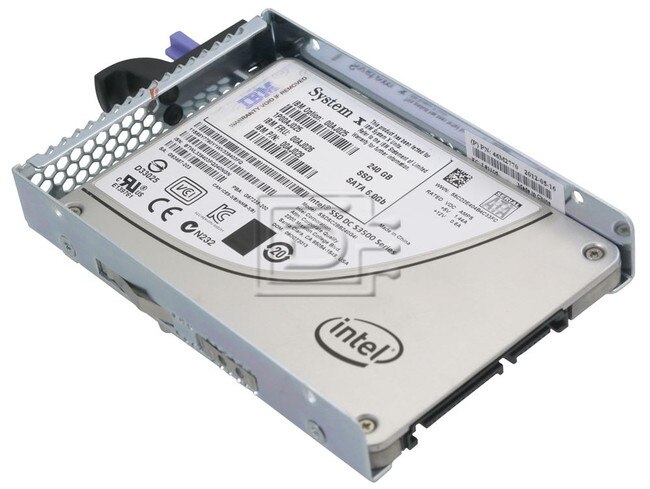

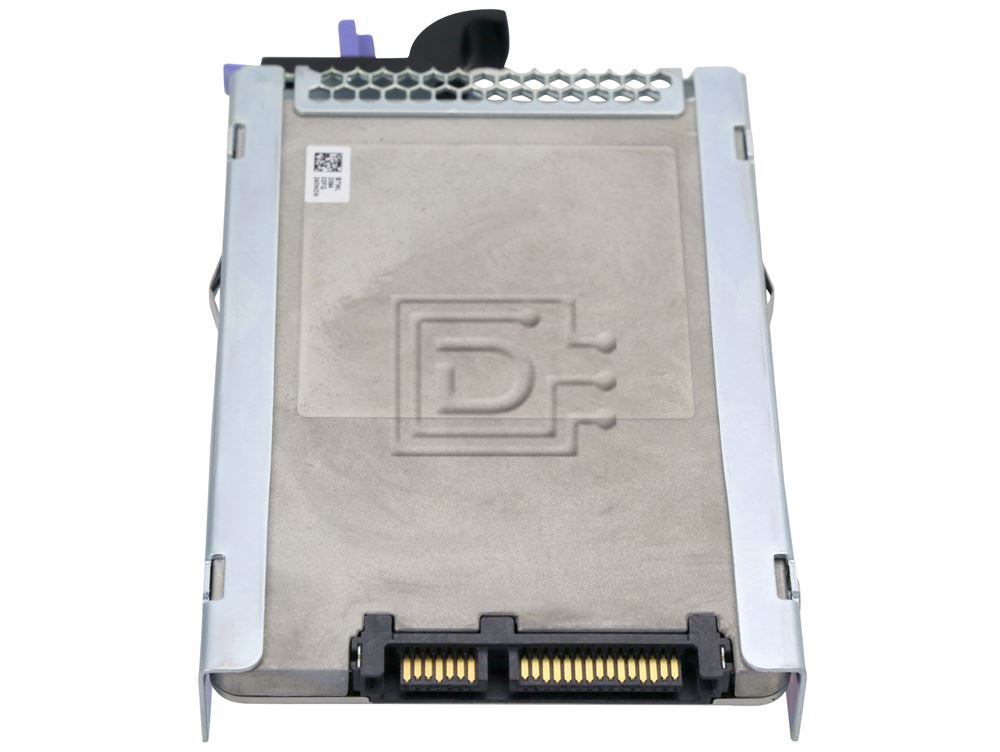

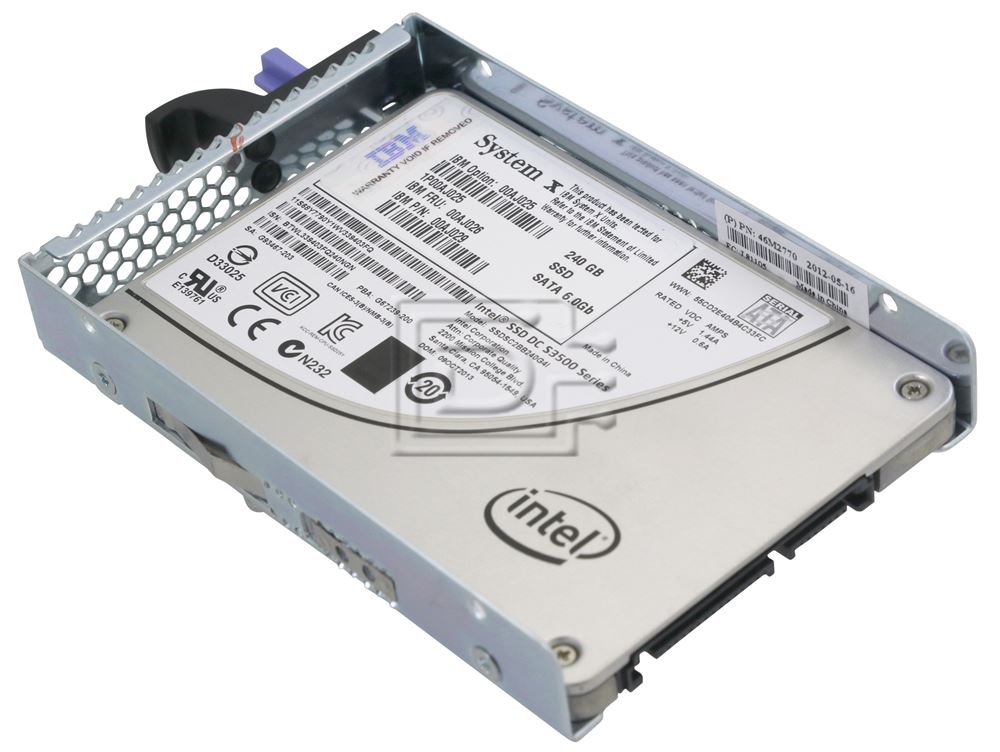

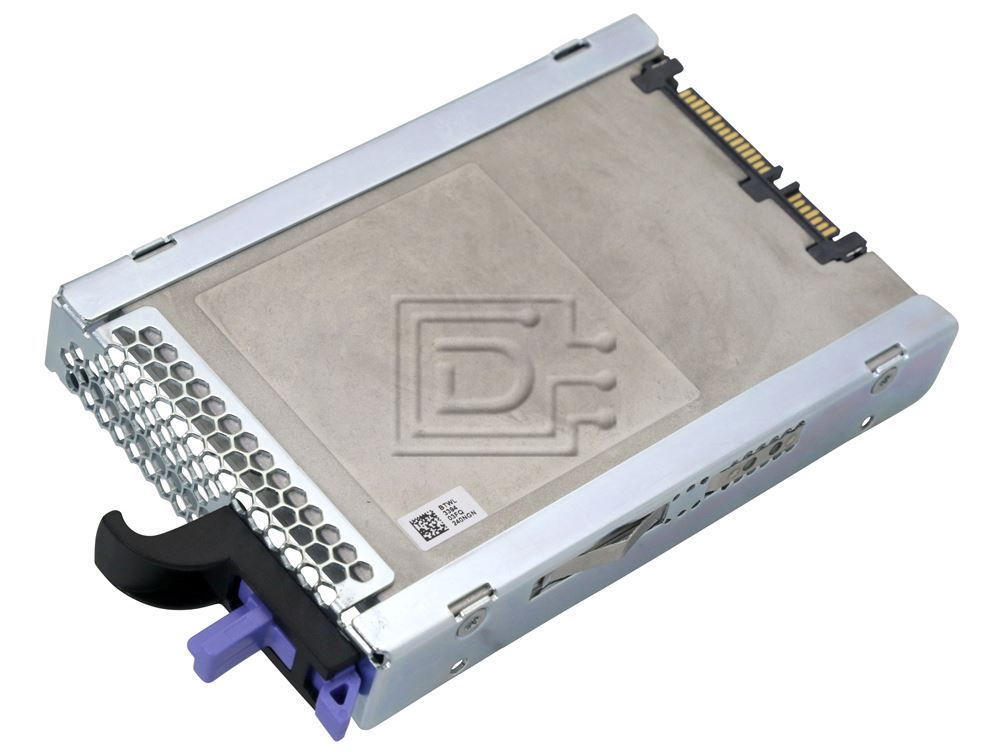

IBM / Lenovo S3500 00AJ025 / 00AJ026 240GB 2.5-Inch SFF eMLC SS Value SATA Solid State Drive kit 46M2770 for Systems x3530 M4, x3650 M4, x3250 M4, dx360 M4 - Brand New

IBM / Lenovo S3500 00AJ025 / 00AJ026 240GB 2.5" Small Form Factor / SFF Enterprise Multi-Level Cell / eMLC Simple Swap / SS Value 0.3 Drive Writes Per Day / DWPD Serial ATA / SATA Solid State Drive / SSD Kit 46M2770 for Systems x3530 M4, x3650 M4, x3250 M4, dx360 M4 - Brand New

The S3500 SATA MLC Enterprise Value solid-state drives (SSDs) for System x® employ MLC NAND flash memory and a 6 Gbps SATA interface to provide an affordable solution with industry leading performance. They are targeted at workloads that require high I/O performance in random read operations, including content delivery, streaming video, and big data analytics.

Did you know?
Unlike client solid-state drives, S3500 SATA MLC Enterprise Value SSDs are designed to operate 24 hours per day, 7 days per week (24x7), and they are equipped with a robust suite of enterprise features, including SMART attributes, hot-plug support, high reliability, enhanced ruggedness, thermal throttling, and enhanced power loss protection. They also leverage full end-to-end data path protection to protect the integrity of the data that is transferred to and from the NAND flash memory or stored in the memory.

S3500 SATA MLC Enterprise Value SSDs provide outstanding IOPS/watt and cost/IOPS for for read-intensive enterprise applications like web serving, content delivery, streaming video, and big data.

Rigorous testing of S3500 SATA MLC Enterprise Value SSDs by Lenovo through the ServerProven® program assures a high degree of confidence in storage subsystem compatibility and reliability.

The part numbers include the following items:

  • One SSD without a drive tray (1.8-inch SSDs) or one SSD with a 2.5-inch hot-swap or simple-swap drive tray (2.5-inch SSDs) or one SSD with a 3.5-inch hot-swap drive tray (3.5-inch SSDs)
  • Support Flyer for SSD
  • Warranty Flyer
  • Important Notices document

The S3500 SATA MLC Enterprise Value SDDs have the following features:

  • Industry standard 1.8-inch, 2.5-inch, or 3.5-inch form factors
  • Support for a conventional 2.5-inch drive bay (2.5-inch SSDs), 3.5-inch drive bay (3.5-inch SSDs), eXFlash drive bay (1.8-inch SSDs), or SSD drive bay (1.8-inch SSDs) on selected System x, iDataPlex®, BladeCenter®, and Flex System™ servers
  • Cost-effective Intel 20 nm MLC NAND flash memory
  • SATA MLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
  • High reliability and enhanced ruggedness
  • Energy saving, with as little as 5 W power consumption per drive
  • Absence of moving parts to reduce potential failure points in the server
  • S.M.A.R.T. support
  • Advanced Encrypting Standard (AES) 256-bit encryption
  • Full end-to-end data path protection
  • Thermal throttling to extend the life of the drive
  • Enhanced power loss data protection

Enterprise Value SSDs and Enterprise SSDs have similar read IOPS performance, but the key differences between them is their endurance (or life expectancy) and write IOPS performance. SSDs have a huge but finite number of program/erase (P/E) cycles, which affect how long they can perform write operations and thus their life expectancy. Enterprise Value SSDs have a better cost per read IOPS ratio but lower endurance and write IOPS performance compared to Enterprise SSDs. SSD write endurance is typically measured by the number of program/erase cycles that the drive can incur over its lifetime, which is listed as TBW in the device specification.

The TBW value that is assigned to a solid-state device is the total bytes of written data that a drive can be guaranteed to complete. Reaching this limit does not cause the drive to immediately fail; the TBW simply denotes the maximum number of writes that can be guaranteed. A solid-state device does not fail upon reaching the specified TBW, but at some point after surpassing the TBW value (and based on manufacturing variance margins), the drive reaches the end-of-life point, at which time the drive goes into read-only mode. Because of such behavior, careful planning must be done to use SSDs in the application environments to ensure that the TBW of the drive is not exceeded before the required life expectancy.

Alternate part numbers:

  • 00AJ026


System DX360 M3System X3550 M5System x3250 M4System x3250 M5

S3500 SATA MLC Enterprise Value SSDs
Alt Part#00AJ026
Hot-swap driveNo
Form factor2.5"
Interface6 Gbps SATA
Endurance140 TB TBW
Data reliability
< 1 in 10e17 bits read
MTBF, hours2,000,000
IOPS reads75,000
IOPS writes7,500
Sequential read rate500 MBps
Sequential write rate260 MBps
Read latency50
Write latency65
Shock, operating1000 g, 0.5 ms
Vibration, operating2.17 g rms 5-700 Hz
Vibration, non-operating3.13 g rms 5-800 Hz
Typical power5W

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 00AJ026

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
