IBM Part #/MPN: 00W1306
DiscTech Item #: IBM-00W1306-BN-OE
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 550/380
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive

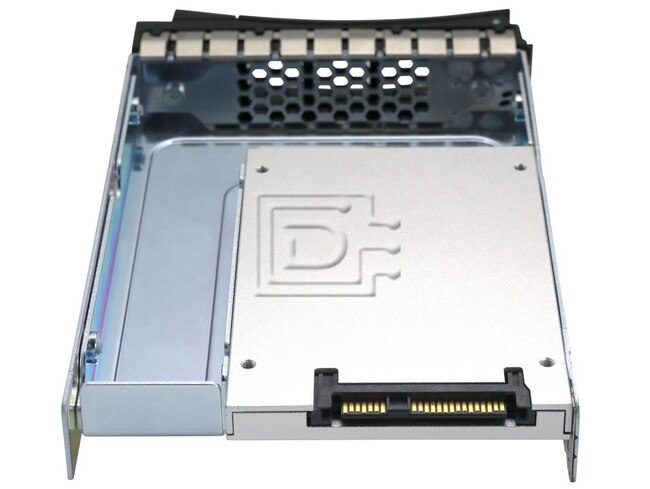

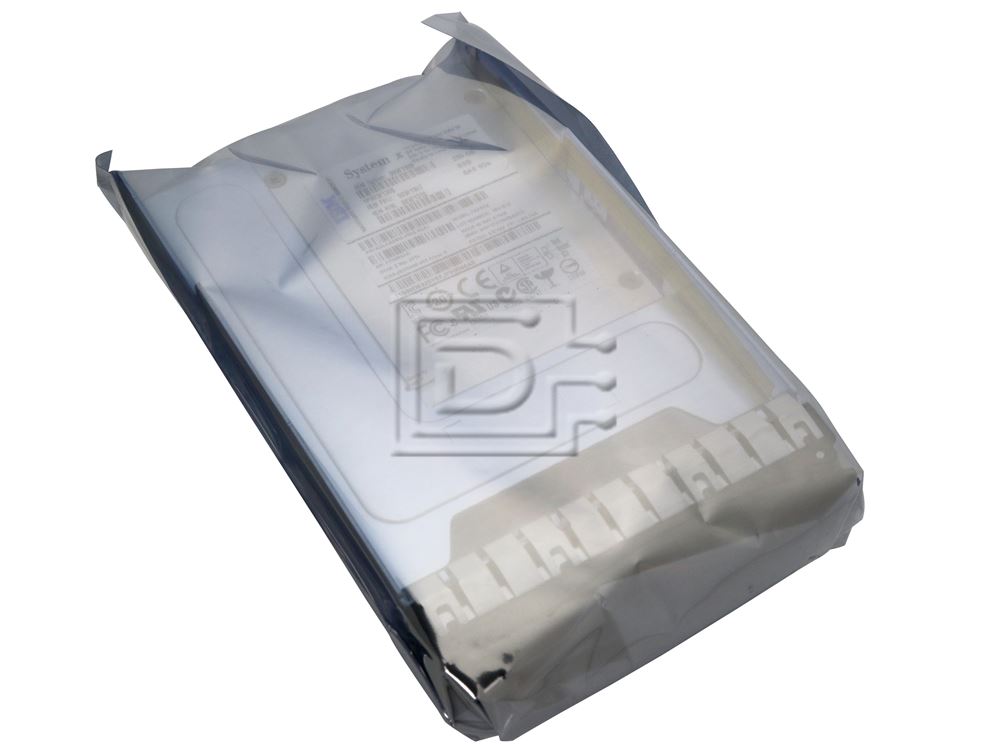

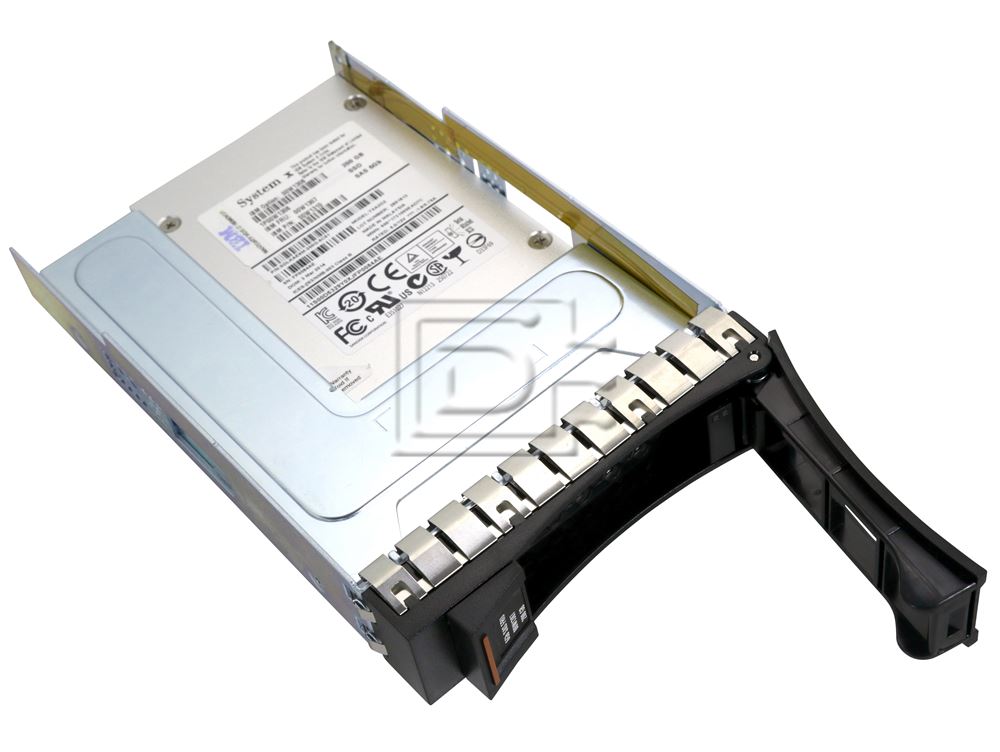

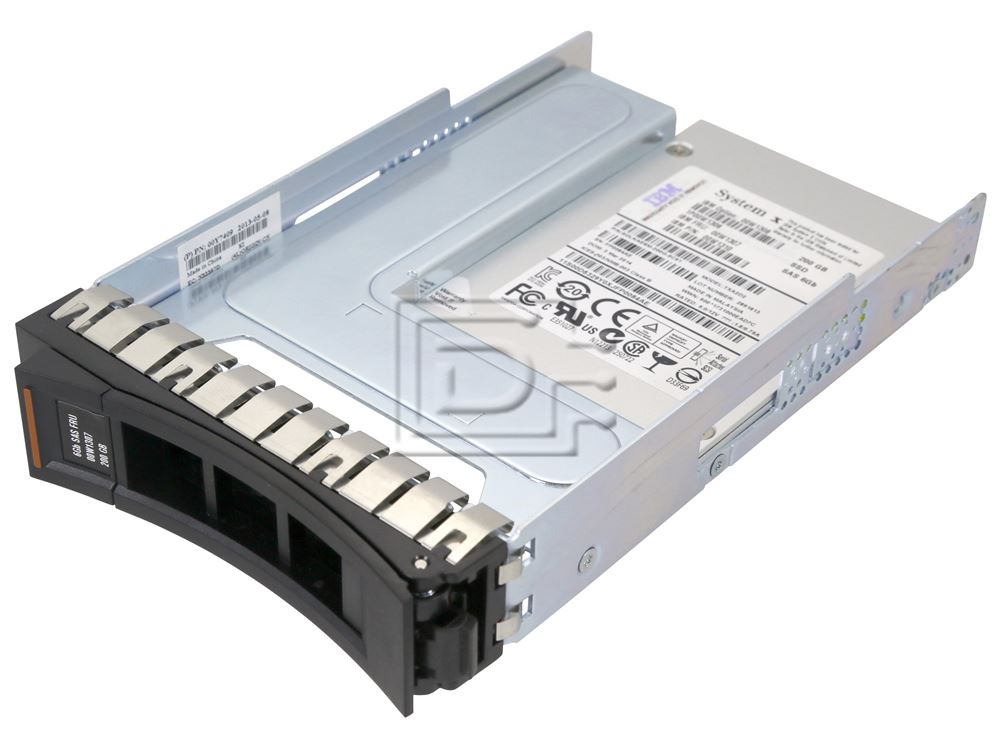

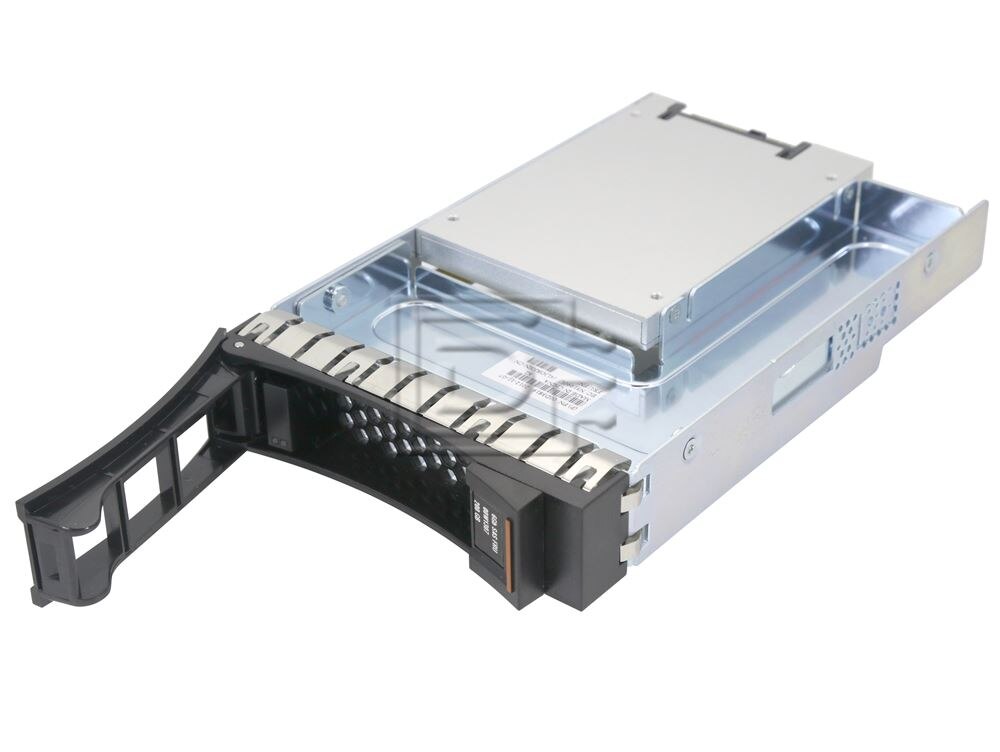

IBM / Lenovo 00W1306 / 00W1307 200GB 3.5-Inch LFF eMLC HS Write Intensive SAS Solid State Drive kit 69Y5284 for Systems x3630 M4 - Brand New
IBM / Lenovo 00W1306 / 00W1307 200GB 3.5" Large Form Factor / LFF Enterprise Multi-Level Cell / eMLC Hot-Swap / HS Mixed Use 10 Drive Writes Per Day / DWPD Serial Attached SCSI / SAS Solid State Drive / SSD kit 69Y5284 for Systems x3630 M4 - Brand New
The SAS MLC Enterprise solid-state drives (SSDs) for System x® employ MLC NAND technology to provide an affordable, but performance-driven solution for applications requiring enterprise workloads with a mix of read/write operations. These industry standard 2.5-inch and 3.5-inch form factor SSDs use a single-chip controller with a SAS interface on the system side and 16 channels of NAND flash internally. They provide outstanding performance, endurance, reliability, and energy efficiency for random read- and write-intensive enterprise workloads such as databases, data warehouses, corporate email and collaboration, actively connected users, caching and tiering applications, and others.
Did you know?
With SanDisk FlashGuard protection, SAS MLC Enterprise SSDs can be fully rewritten up to ten times per day throughout their entire five-year life expectancy. Unlike SATA drives, the SAS interface supports full duplex data transfer for higher performance, as well as dual port connectivity and enterprise-level error recovery for better availability.
Rigorous testing of SAS Enterprise MLC SSDs by Lenovo through the ServerProven® program assures a high degree of confidence in storage subsystem compatibility and reliability.
The part numbers for the SSDs include the following items:
- One SSD with either a hot-swap or simple-swap tray, depending on the part number
- Technical Update Flyer
- Warranty Flyer
- Important Notices document
The SAS MLC Enterprise SSDs have the following features:Industry standard 2.5-inch or 3.5-inch drive form factor
- Aggregated Flash Management
- Advanced Signal Processing
- Enhanced Error Correction
- Full data path protection
- Flexible Redundant Array of Memory Elements (F.R.A.M.E.) data recovery algorithm
The key difference between Enterprise SSDs such as the SAS MLC Enterprise SSDs and other SSDs is their endurance (or life expectancy). SSDs have a huge but finite number of program/erase (P/E) cycles, which affects how long they can perform write operations and thus their life expectancy. Enterprise SSDs have significantly better endurance but higher cost/IOPS ratio compared to Enterprise Value SSDs. SSD write endurance is typically measured by the number of program/erase cycles that the drive can incur over its lifetime, listed as TBW in the device specification.
The TBW value that is assigned to a solid-state device is the total bytes of written data that a drive can be guaranteed to complete. Reaching this limit does not cause the drive to immediately fail; the TBW simply denotes the maximum number of writes that can be guaranteed. A solid-state device will not fail upon reaching the specified TBW, but at some point after surpassing the TBW value (and based on manufacturing variance margins), the drive will reach the end-of-life point, at which time the drive will go into read-only mode. Because of such behavior, careful planning must be done to use SSDs in the application environments to ensure that the TBW of the drive will not be exceeded prior to the required life expectancy.
Alternate part numbers:
|System x3300 M4||System x3500 M4||System x3500 M5||System x3530 M4|
|System x3530 M5||System x3550 M4||System x3550 M5||System x3630 M4|
|System x3630 M5||System x3650 M4||System x3250 M6|
|SAS MLC Enterprise SSD|
|Interface||6 Gbps SAS|
|Endurance(drive writes per day)||10 DWPD|
|Endurance(total bytes written)||3.65 PB PBW / 3,650 TB TBW|
< 1 in 10e17 bits read
|MTBF, hours||2,500,000 hours|
|Sequential read rate||550 MBps|
|Sequential write rate||380 MBps|
|Access time||< 0.1 ms|
|Shock||1000 g, 0.5 ms|
|Vibration||2.17 gRMS 7-800 Hz|
|Typical power||7 W|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 00W1307
Weight: 2.5 lb
Warranty: 1 Year DiscTech
The product is brand new.
