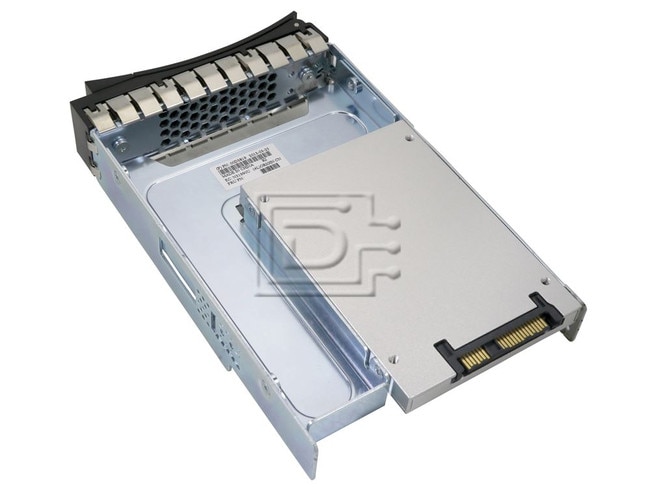

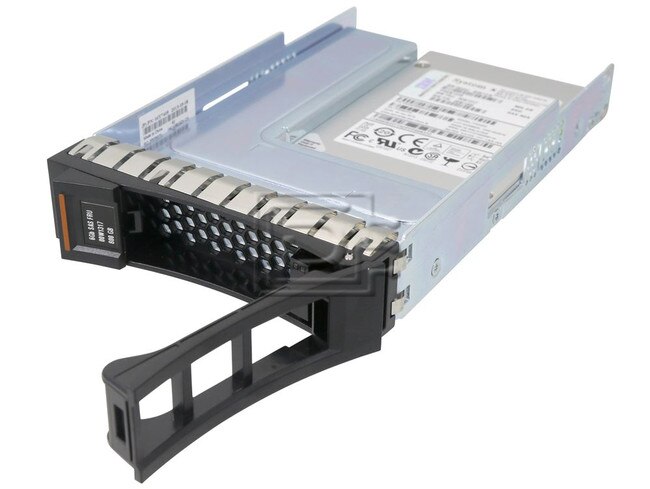

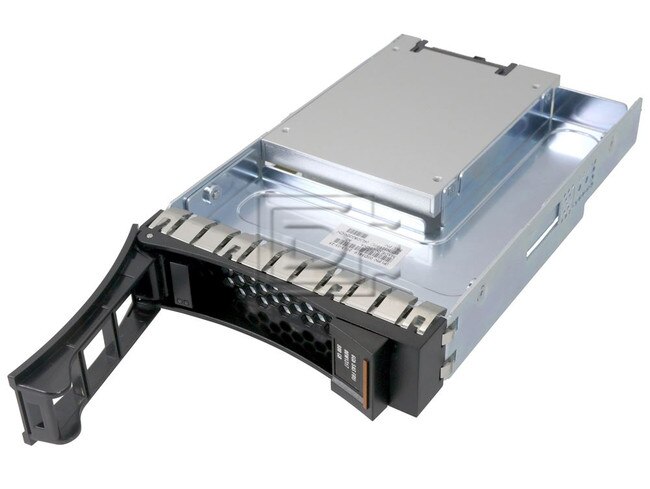

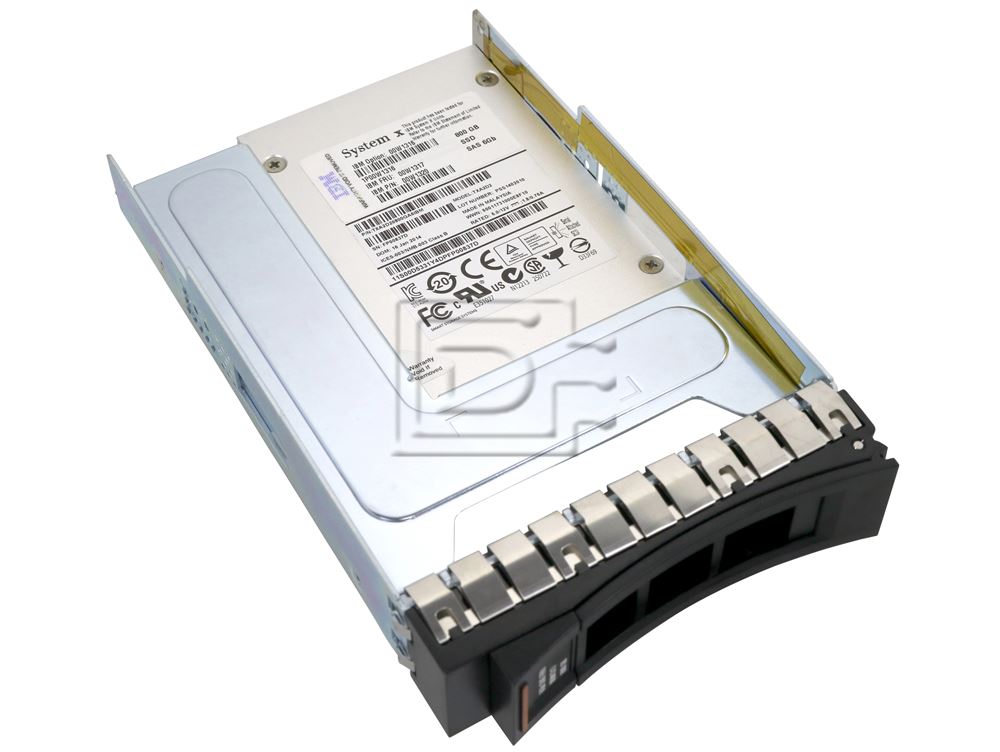

IBM / Lenovo 00W1316 00W1317 800GB SAS Solid State Drive Kit 69Y5284

IBM Part #/MPN: 00W1316

DiscTech Item #: IBM-00W1316-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 800GB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 550/540

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps


SSD Endurance DWPD: Enterprise Mixed Use

IBM / Lenovo 00W1316 / 00W1317 800GB 3.5-Inch LFF eMLC HS Mixed Use SAS Solid State Drive kit 69Y5284 for Systems x3630 M4 - Brand New

IBM / Lenovo 00W1316 / 00W1317 800GB 3.5" Large Form Factor / LFF Enterprise Multi-Level Cell / eMLC Hot-Swap / HS Mixed Use 10 Drive Writes Per Day / DWPD Serial Attached SCSI / SAS Solid State Drive / SSD kit 69Y5284 for Systems x3630 M4 - Brand New

The SAS MLC Enterprise solid-state drives (SSDs) for System x® employ MLC NAND technology to provide an affordable, but performance-driven solution for applications requiring enterprise workloads with a mix of read/write operations. These industry standard 2.5-inch and 3.5-inch form factor SSDs use a single-chip controller with a SAS interface on the system side and 16 channels of NAND flash internally. They provide outstanding performance, endurance, reliability, and energy efficiency for random read- and write-intensive enterprise workloads such as databases, data warehouses, corporate email and collaboration, actively connected users, caching and tiering applications, and others.

Did you know?
With SanDisk FlashGuard protection, SAS MLC Enterprise SSDs can be fully rewritten up to ten times per day throughout their entire five-year life expectancy. Unlike SATA drives, the SAS interface supports full duplex data transfer for higher performance, as well as dual port connectivity and enterprise-level error recovery for better availability.

Rigorous testing of SAS Enterprise MLC SSDs by Lenovo through the ServerProven® program assures a high degree of confidence in storage subsystem compatibility and reliability.

The part numbers for the SSDs include the following items:

  • One SSD with either a hot-swap or simple-swap tray, depending on the part number
  • Technical Update Flyer
  • Warranty Flyer
  • Important Notices document

The SAS MLC Enterprise SSDs have the following features:Industry standard 2.5-inch or 3.5-inch drive form factor

  • Utilizes 19 nm MLC NAND technology
  • Cost-effective MLC SAS drive with high read and write performance to fulfill client needs in the enterprise space
  • High endurance, with up to 29.2 PB of total bytes written (TBW) to withstand applications with intensive read/write workloads
  • Energy saving, with as little as 7 watt power consumption per drive
  • Absence of moving parts to reduce potential failure points in the server
  • S.M.A.R.T. support
  • Advanced Encrypting Standard (AES) 256-bit encryption
  • FlashGuard technology extends the native endurance of commercial-grade MLC flash
    • Aggregated Flash Management
    • Advanced Signal Processing
    • Enhanced Error Correction
  • DataGuard technology protects against data corruption and loss
    • Full data path protection
    • Flexible Redundant Array of Memory Elements (F.R.A.M.E.) data recovery algorithm
  • EverGuard technology protects data in the event of unplanned power outages
  • Static wear leveling evenly distributes data across the drive
  • Bad block management replaces failed blocks with new ones from the spare pool
  • Thermal throttling to extend the life of the drive
  • Data retention management to ensure availability and integrity of stored data
  • Minimal write amplification for efficient flash utilization and extended lifetime
  • The key difference between Enterprise SSDs such as the SAS MLC Enterprise SSDs and other SSDs is their endurance (or life expectancy). SSDs have a huge but finite number of program/erase (P/E) cycles, which affects how long they can perform write operations and thus their life expectancy. Enterprise SSDs have significantly better endurance but higher cost/IOPS ratio compared to Enterprise Value SSDs. SSD write endurance is typically measured by the number of program/erase cycles that the drive can incur over its lifetime, listed as TBW in the device specification.

    The TBW value that is assigned to a solid-state device is the total bytes of written data that a drive can be guaranteed to complete. Reaching this limit does not cause the drive to immediately fail; the TBW simply denotes the maximum number of writes that can be guaranteed. A solid-state device will not fail upon reaching the specified TBW, but at some point after surpassing the TBW value (and based on manufacturing variance margins), the drive will reach the end-of-life point, at which time the drive will go into read-only mode. Because of such behavior, careful planning must be done to use SSDs in the application environments to ensure that the TBW of the drive will not be exceeded prior to the required life expectancy.

    Alternate part numbers:

    • 00W1317


    System x3300 M4System x3500 M4System x3500 M5System x3530 M4
    System x3530 M5System x3550 M4System x3550 M5System x3630 M4
    System x3630 M5System x3650 M4System x3250 M6

    SAS MLC Enterprise SSD
    Alt Part#00W1317
    Hot-swap driveYes
    Form factor3.5"
    Interface6 Gbps SAS
    Endurance(drive writes per day)10 DWPD
    Endurance(total bytes written)14.6 PB PBW / 14,600 TB TBW
    Data reliability
    < 1 in 10e17 bits read
    MTBF, hours2,500,000 hours
    IOPS reads95,000
    IOPS writes40,000
    Sequential read rate550 MBps
    Sequential write rate540 MBps
    Access time< 0.1 ms
    Shock1000 g, 0.5 ms
    Vibration2.17 gRMS 7-800 Hz
    Typical power7 W

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: 00W1317

    Weight: 1.8 lb

    Warranty: 1 Year DiscTech

    Brand New
