ICP VORTEX Part #/MPN: GDT8514RZ
DiscTech Item #: ICP-GDT8514RZ-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Interface Types: SCSI 68pin HD68, SCSI VHDCI, PCI-X
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 128MB

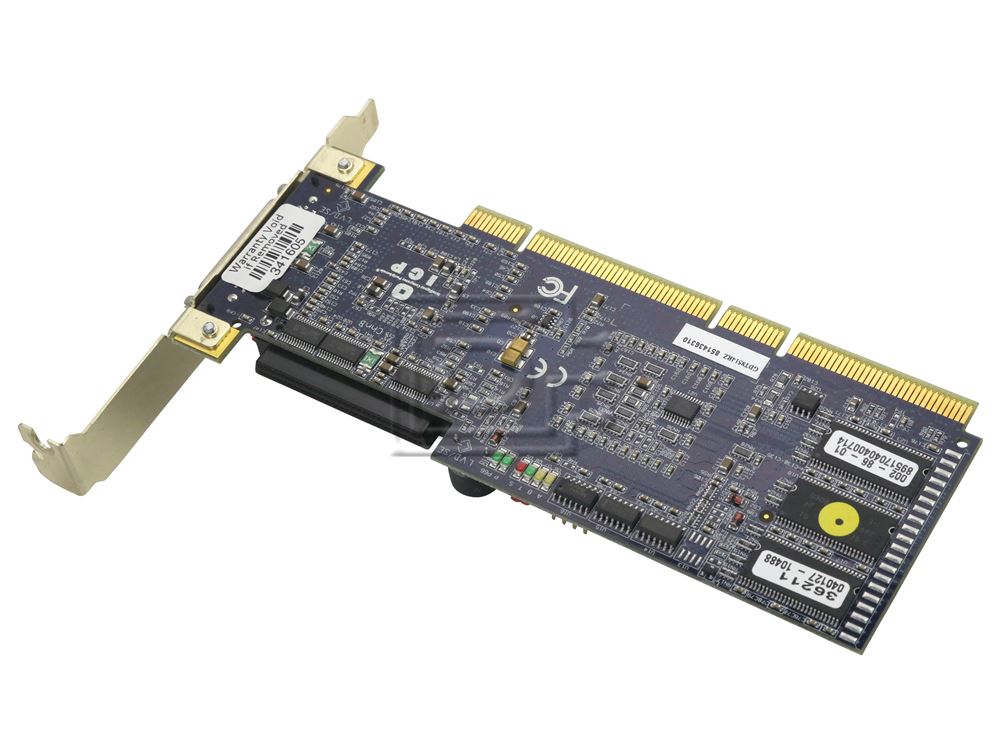

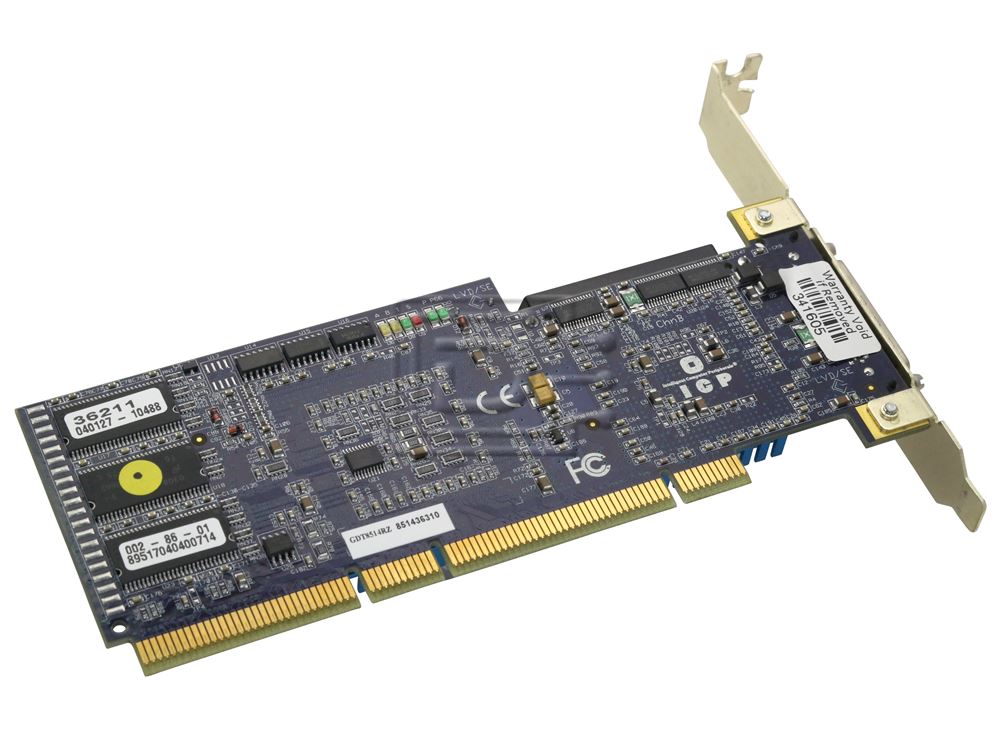

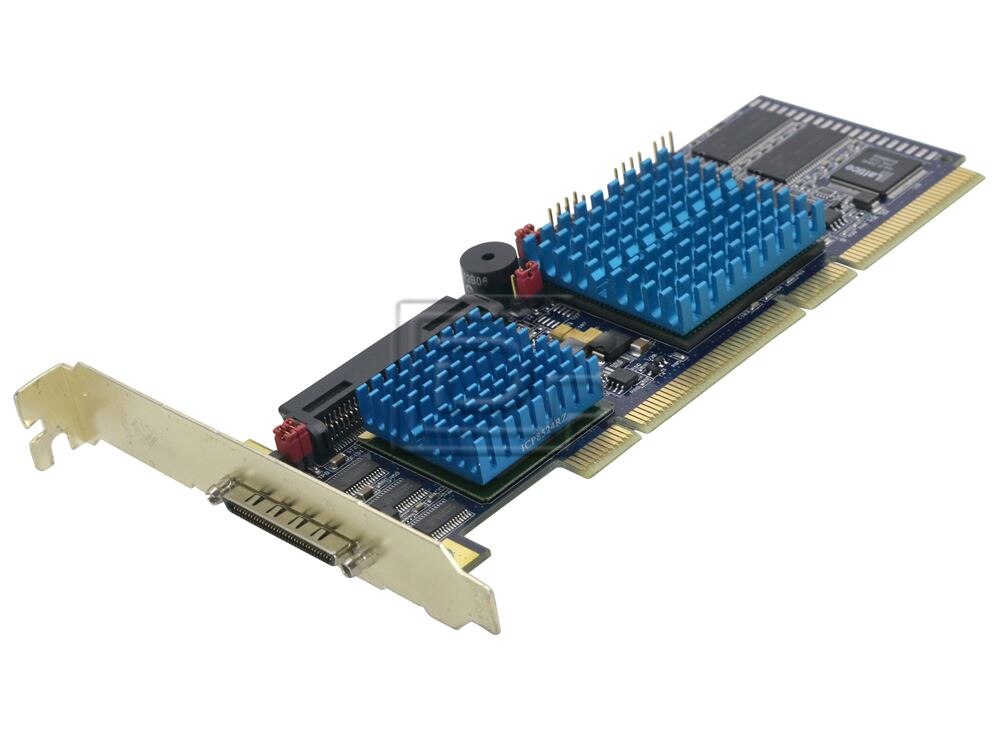

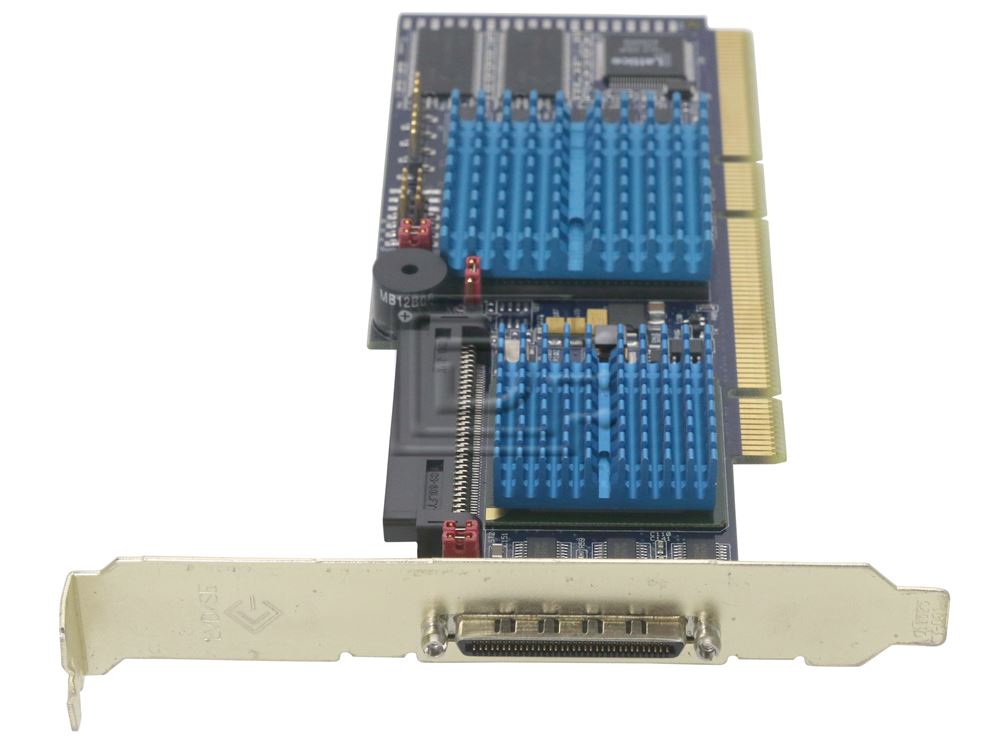

ICP Vortex GDT8514RZ Ultra 320 Dual Channel SCSI LVD Controller Card, VHDCI PCI-X - Refurbished
ICP Vortex GDT8514RZ Ultra 320 Dual Channel Low Profile SCSI LVD Controller Card, VHDCI PCI-X - Refurbished
GDT8xy4RZ - A complete Family
GDT8xy4RZ is a family of 64-bit/66MHz PCI Ultra320 SCSI RAID controllers. There are versions with one and with two external Ultra320 SCSI channels. The controllers feature multiple RAID level support, for example RAID 0/1 for mirroring, or they offer full RAID 0, 1, 4, 5, 10 functionality. They have either no, an optional upgradable or full ICP Battery Backup Unit.
GDT8x14RZ is the 1-channel RAID controller with the functionality of a 2-channel RAID controller. It has both, an internal channel and another independent channel for external use. GDT8x14RZ is ideally suited for blade, rackmount and enterprise servers. Its compact design allows GDT8x14RZ to be used even in low profile systems.
Hardware RAID Controller
- Supports RAID 0/1, or RAID 0/1/4/5/10 depending on the type of controller
- Hot Plug, Auto Hot Plug with SAF-TE support
- Private or Pool Hot Fix drives
- Hardware RAID is totally independent of the host and operating system
- Integrated acoustic alarm
Versatile Connectivity Capabilities
- Support of each one internal and one external Ultra320 SCSI channel or two Ultra320 SCSI channels with two internal and two external connections depending on the type of controller
- Connection of up to 15 devices per channel with software-switchable multi-mode termination (LVD/SE)
- Maximum synchronous data transfer rate of up to 320MB/sec. per channel (LVDS) depending on the attached drives
- Backwards compatible to former SCSI devices
- Supports Ultra320 SCSI features and other SCSI devices
- Cable length up to 12 meters (LVDS) per channel
Multiprocessor RISC Architecture
- 64-bit Intel 80303 I/O processor, > 100 MIPS
- ”Hardware XOR Engine”, integrated coprocessor for optimized RAID 4/5 operations
- Completely offloading the host CPU
PCI Bus Specifications
- 64-bit/66MHz PCI bus interface with up to 528MB/sec. data throughput
- Backwards compatible with 32-bit/33MHz, 64-bit/33MHz and 32-bit/66MHz PCI slots, as well as PCI-X slots
- Supports 5 Volt and 3.3 Volt PCI slots
- Supports PCI Hot Plug functions under Windows 2000 and Novell NetWare (OS driver needed for “hot replacement” and PCI Hot Plug System)
Optimum in Memory Technology
- 64-bit cache RAM, non-buffered PC133 ECC SDRAM, either 128MB onboard with GDT8x14RZ or optional 64 up to 256MB DIMM stick depending on the type of controller
- Intelligent multi-level cache algorithm with adaptive delayed write & read ahead functions
High Configuration Flexibility
- ROM-resident setup (ICP RAID Console) with integrated “Express Setup” function (CTRL+
) - Simultaneous operation of several disk arrays
- Flexible capacity setting
- Online capacity expansion
- Online RAID level migration
- Complete disk array migration
- RAID arrays from other ICP RAID controllers are easily adopted without reconfiguration (Array Roaming)
- Controller switch and controller upgrade without reconfiguration
- Automatic adaptation to changes in SCSI configuration (ID/SCSI channels)
Operating System Support
- Windows XP/2000/2003, Novell NetWare, SCO OpenServer/OpenUnix/UnixWare, Linux and FreeBSD
Integrated RAID Software
- ICP RAID Console - installation and monitoring software, available for all supported operating systems with the same look & feel, text-based graphical interface, remote access via TCP/IP and IPX/SPX protocols
- ICP RAID Navigator - GUI tool for all Windows operating systems above Windows 95, context-sensitive online help, remote access to Windows, Unix, Linux and NetWare servers
- Support for messaging and online diagnosis
- Software updates based on Flash-RAM technology, making Internet downloads easier from www.icp-vortex.com
Delivery Contents
- ICP Disk Array Controller, either with onboard 128MB integrated SDRAM or slot for DIMM stick depending on the type of controller
- Always standard full height PCI bracket assembled, with GDT8x14RZ an additional bracket for low profile PCI slot is enclosed
- User’s Manual and Quick Installation Guide
- CD-ROM with tools and drivers
| ICP Vortex Storage Controller | |
|---|---|
| Model# : | GDT8514RZ |
| GENERAL | |
| Host Bus | PCI 64/66 MHz |
| Manufacturer | ICP vortex Computerssysteme GmbH |
| STORAGE CONTROLLER | |
| Interface | Ultra320 SCSI |
| Data Transfer Rate | 320 MBps |
| Buffer Size | 128 MB |
| Supported Devices | disk array (RAID) |
| Channel Qty | 2 |
| Max Storage Devices Qty | 30 |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 4, RAID 5 |
| Processor | Intel 80303 |
| Buffer Size | 128 MB |
| Interface Type | Ultra320 SCSI |
| POWER DEVICE | |
| Type | none |
| INTERFACE PROVIDED | |
| Qty | 1 |
| Connector Type | 68 pin HD D-Sub (HD-68), 68 pin VHDCI (mini-Centronics) |
| Connector Location | external, internal |
| SYSTEM REQUIREMENTS | |
| OS Required | FreeBSD, Linux, Microsoft Windows 2000 / NT4.0, Microsoft Windows XP, Novell NetWare, SCO OpenServer, UnixWare |
| HEADER | |
| Brand | ICP vortex |
| Product Line | ICP vortex |
| Model | GDT8514RZ |
| Packaged Quantity | 1 |
| Compatibility | PC |
| INTERFACE REQUIRED | |
| Type | none |
| EXPANSION BAYS | |
| Type | none |
| SOFTWARE | |
| Type | Drivers & Utilities |
| SLOT REQUIRED | |
| Type | PCI 64 / 66 MHz |
| Form Factor | low-profile |
| Total Qty | 1 |
| BAY REQUIRED | |
| Type | None |
Weight: 2 lb
