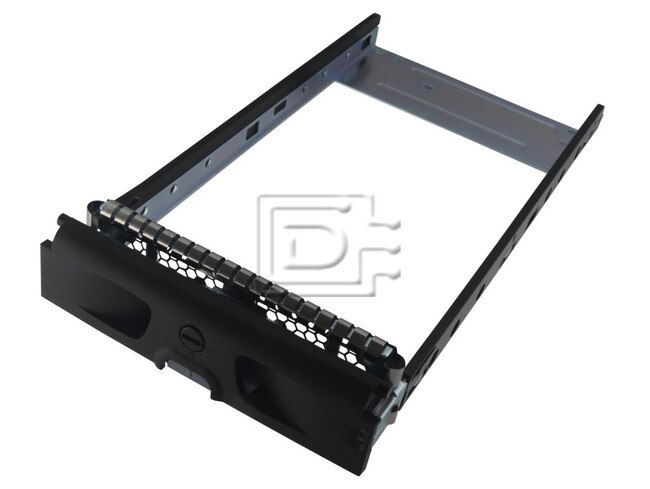

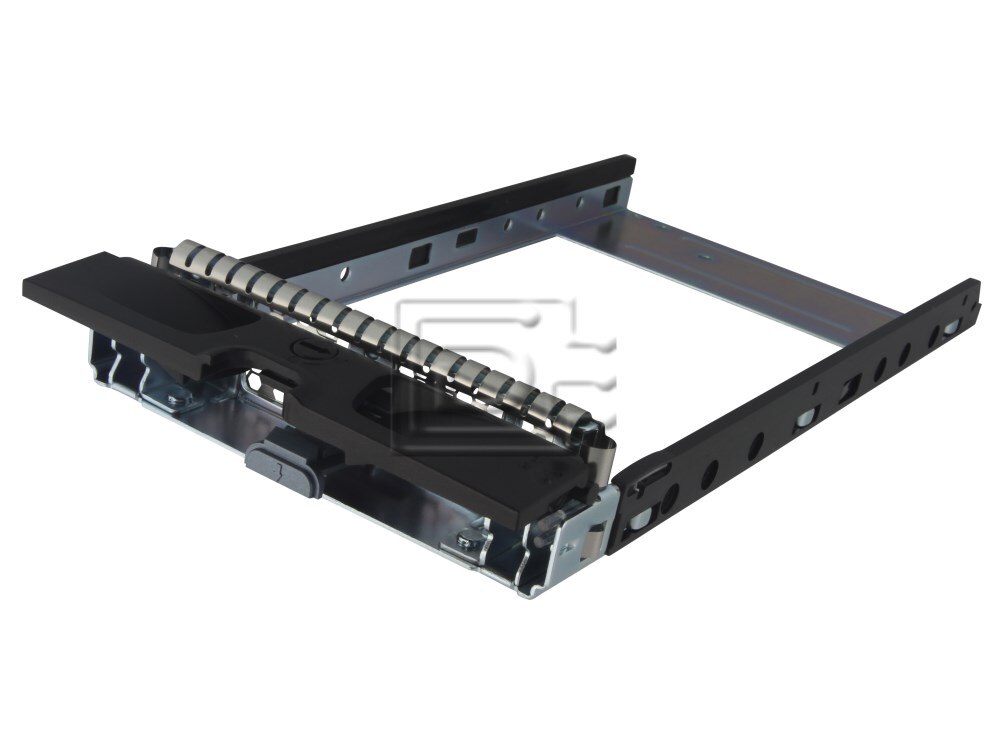

Infortrend IFT-9273CDTRAY SCSI /SAS / SATA Hard Drive Tray/Caddy


DiscTech Item #: IFT-IFT-9273CDTRAY-UP-OE


Interface Types: SAS Serial Attached SCSI, SATA, SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Infortrend IFT-9273CDTRAY SCSI /SAS / SATA 3.5" Hard Drive Tray/Caddy - Used Pull

Infortrend IFT-9273CDTRAY SCSI /SAS / SATA  Tray/Caddy for 3.5-inch hard drives - Used Pull
Drive tray, Type-III bezel and Type-II LED lightpipe.
For use in Infortrend EonStor Disk SubSystems

This tray / caddy attaches to the Infortrend IFT-9273A2N2S1S MUX kit interposer board.


This tray / caddy is compatible with all 3.5" U320 SCSI / SAS or SATA drives

Models supported: (This list may not be complete)
U12U-G4020 / A24U-G2421 SCSI-320 to SCSI-320 Subsystems. / iSCSI to SATA Sub-System /
ES S16E-G1130 / ES S16E-G1240 / ES S16E-R1130 / ES S16E-R1240 / ES S12E-G1133 / ES S12E-R1132 / ES A16E-G2130-4 / ES A12E-G2121 / A24U-G2421 / A16E-G2130-4 / U12U-G4020

Click here to view the manufacturer's item description/brochure

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Used Pull

Condition Levels Explained

The product has been removed from a working system (e.g. server). These products vary in their usage due to age of system & type of service etc.. However, Used System Pulls are fully tested and all handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
