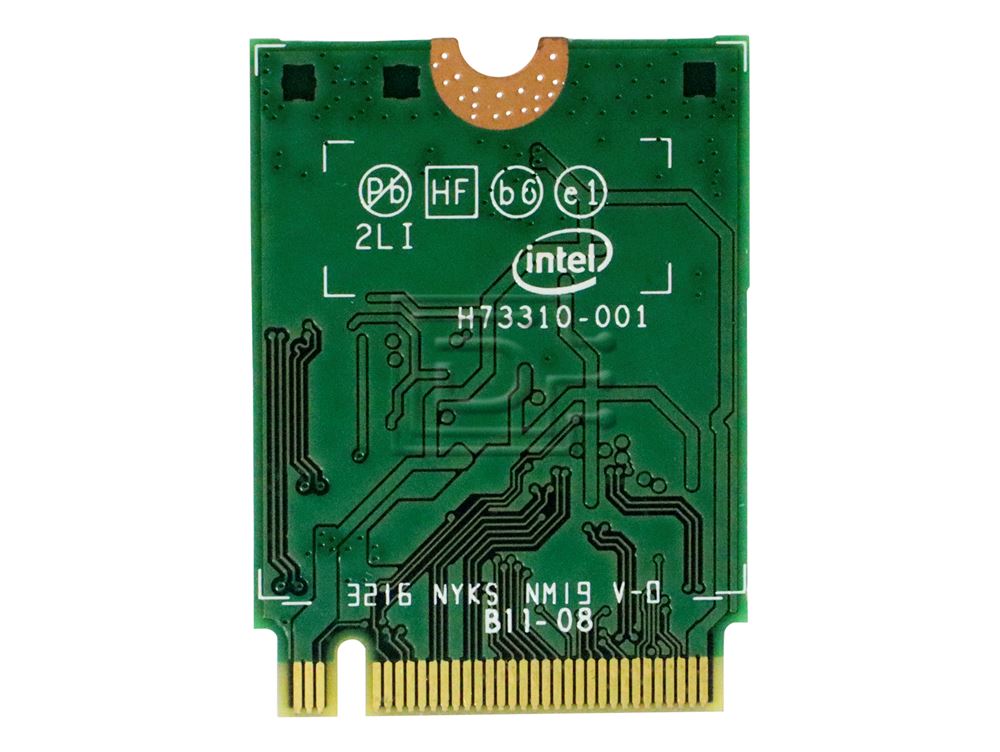

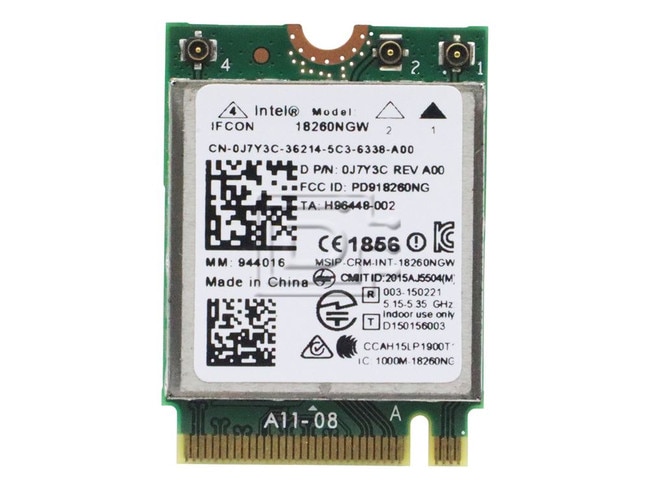

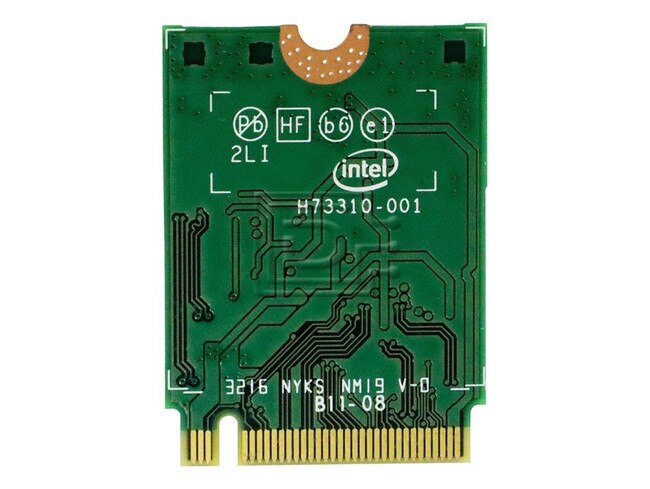

Intel 18260NGW Tri-Band M.2 802.11ac/ad Wireless-AC WiGig Wi-Fi Bluetooth Combo Module / Dell J7Y3C

INTEL Part #/MPN: 18260NGW

DiscTech Item #: INT-18260NGW-BN-OE-DEL


$17.99
$17.99

Interface Types: PCIe

Intel 18260NGW Tri-Band M.2 802.11ac/ad Wireless-AC WiGig / Wi-Fi / Bluetooth Combo Module / Dell J7Y3C - Brand New

Compatible with Dell Latitude E5570 / E5270 / E5470 / E7270 / E7470 / 5289 2-in1 / Inspiron 15 (7570)

Intel 18260NGW Tri-Band M.2 802.11ac/ad Wireless-AC WiGig / Wi-Fi / Bluetooth Combo Module / Dell J7Y3C - Brand New

Product Description

The Intel® Tri-Band Wireless-AC 18260 delivers high-speed, 60 GHz WiGig (802.11ad) wireless docking connectivity for mobile client device (2 in 1, tablet, laptop) with up to 4.7Gbps of bidirectional throughput. It’s available in the smaller M.2 Type 2230 form factor optimized for thinner and lighter mobile device designs. Complemented with the Intel® Wireless Gigabit Sink-M 13100, it enables wire-equivalent user experience for wireless docking, peripherals access and device-to-device communications.

The Intel® Tri-Band Wireless-AC 18260 includes Intel® Dual Band Wireless-AC 8260 for 802.11ac, dual-band, 2x2 Wi-Fi + Bluetooth® connectivity for Wi-Fi speeds up to 867 Mbps, higher capacity, broader coverage and longer battery life. Intel® Tri-Band Wireless-AC 18260 supports innovative Intel-only features including Intel® Wireless Gigabit Docking, Intel® Wireless Display and Intel® vPro™ Technology.

Product NameModel NumberVersion
Intel® Tri-Band Wireless-AC 18260 18260NGW 802.11ad (Channels 1,2,3), 802.11ac 2x2, LTE Coex, Bluetooth 4.1, M.2 2230 1-DP
Intel® Wireless Gigabit (802.11ad)Benefits
Wireless Gigabit Docking (Client) Allows wire-equivalent quality for up to two full HD displays, low-latency human interface (HID) devices, and multi-Gbps IO for on-desk productivity experience
Wireless Access to Peripherals Enabled wire-free multi-Gbps connectivity for any USB 3.0 device, such as storage or HD camera that is WiGig-enabled or connected to a Wireless Gigabit dock station
Device to Device Allows multi-Gbps connectivity between devices
WiGig Display Extension (WDE) WiGig Wireless Display Extension, for visually-lossless, low latency, robust video and HD audio
WiGig Serial Extension (WSE) WiGig Wireless Serial Extension, for efficient, native USB 3.0 transfers including Bulk and Isochronous
Client Dock Management Dedicated, user-friendly Intel® Wireless Gigabit Dock Manager utility on the client to configure the dock settings (password protectable)
Dock Lock Whitelist to allow OEM’s control of client-dock connectivity capabilities
Intel Dual Band Wireless-AC 8260 (802.11ac + Bluetooth®)Benefits
More Speed, Better Coverage, Larger Capacity 802.11ac, Dual Band, 80MHz, 2x2 Delivers dramatically faster Wi-Fi speeds (up to 867 Mbps) than 802.11n, with more bandwidth per stream (433Mbps), more capacity for more users (extended channel bonding 80MHz), broader coverage and better battery life (more data transmit efficiencies reduces power consumption)
Bluetooth® 4.1 Dual-mode Bluetooth® 4.1 connects to the newest low-energy Bluetooth products, as well as your familiar devices, such as headsets, keyboard, mice and more
Experience the Intel Difference
Wire-Like Desktop Connectivity - Intel® Wireless Gigabit Docking Allows wire-equivalent quality for up to two full HD displays, low-latency human interface (HID) devices, and multi-Gbps IO for on-desk productivity experience. Enables seamless connectivity to desktop devices and the Intel® Wireless Gigabit Dock Manager to easily configure Intel® Wireless Gigabit Docking from the client.
Wireless Access to Peripherals Enabled wire-free multi-Gbps connectivity for any USB 3.0 device, such as storage or HD camera that is WiGig-enabled or connected to a Wireless Gigabit dock station
Intel®-vPro™ Technology Supports Intel’s hardware-based security and management features built into Intel® Core™ vPro™ processors and chipsets that enables IT to manage PCs virtually anywhere, anytime while reducing deployment costs, improving security and ROI.
Intel®-Active Management Technology Using integrated platform capabilities and popular third-party management and security applications, Intel® AMT allows IT or managed service providers to better discover, repair, and protect their networked computing assets. Intel AMT is a feature of Intel® Core™ processors with Intel® vPro™ technology.
Intel®-Active Management Technology Using integrated platform capabilities and popular third-party management and security applications, Intel® AMT allows IT or managed service providers to better discover, repair, and protect their networked computing assets. Intel AMT is a feature of Intel® Core™ processors with Intel® vPro™ technology.
Intel Location Based Service Enables seamless and accurage Wi-Fi indoor location service for employees to see campus maps with reference to their location, locate the nearest resource (printer, conference room, elevator, etc.), or for asset tracking.
Intel® Tri-Band Wireless-AC 18260 Module Specifications
Dimensions (H x W x D) M.2 2230: 22mm x 30mm x S3 [1.5mm Max (Top Side) / .01mm Max (Bottom Side)]
Weight 3.7gr
Wi-Fi Diversity Supported
Radio ON/OFF Control Supported in both hardware and software. One HW control is shared between Wi-Fi and WiGig, another one is dedicated for Bluetooth
Connector Interface M.2 Key 1-DP: 2xPCIe, USB, DP. Interface to Intel® Wireless Gigabit-Antenna M10041 Module using X-FL (single coax cable to carry power, IF and control)
LED Output ON/OFF
Operating Temperature (Adapter Shield) 0° to +80°C
Humidity Non-Operating 50% to 80% RH non-condensing (at temperatures of 25°C to 35°C
Operating Systems Microsoft Windows 7, and up with connected standby
Wi-Fi Alliance Wi-Fi CERTIFIED for 802.11ac, Wi-Fi CERTIFIED a/b/g, Wi-Fi CERTIFIED N, WMM, WPA, WPA2, and WPS, WPS2.0, Protected Management Frames, Wi-Fi Direct for peer to peer device connections.
IEEE WLAN Standard IEEE 802.11 abgn, 802.11ac, 802.11ad, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w
Bluetooth® Dual Mode Bluetooth 2.1, 2.1 +EDR, 3.0, 3.0+HS, 4.0 (BLE), 4.1

Alternate MPNs: J7Y3C

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
