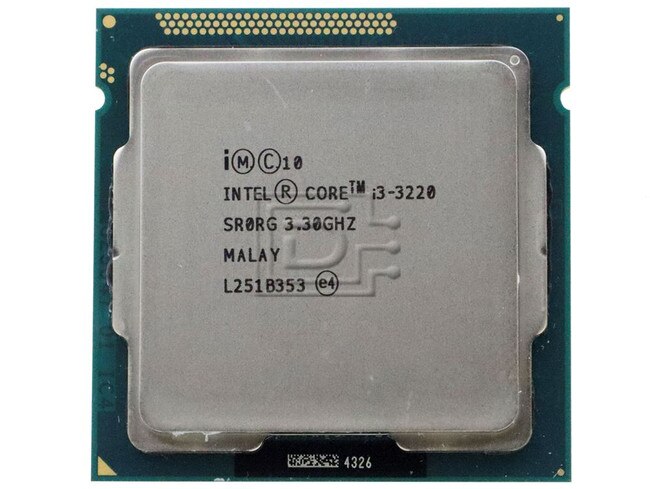

Intel Core i3-3220 / SR0RG / CM8063701137502 3.3 GHz 2-Core 3MB FCLGA1155 CPU Processor
| Interface Types: | Socket FCLGA1155 |
| Electrical Interface: | Clock 3.2 GHz |
Description
Intel Core i3-3220 / SR0RG / CM8063701137502 3.3 GHz 2-Core 3MB Cache FCLGA1155 Socket CPU Processor - New Pull
Intel Core i3-3220 / SR0RG / CM8063701137502 3.3 GHz 2-Core 4-Thread 3MB Cache FCLGA1155 Socket 22nm 55W CPU Processor - New Pull
Supported Socket: FCLGA1155
The Desktop 3rd Generation Intel® Core™ processor family, Desktop Intel® Pentium® processor family, and Desktop Intel® Celeron® processor family are the next generation of 64-bit, multi-core processors built on 22-nanometer process technology. The processors are designed for a two-chip platform. The two-chip platform consists of a processor and a Platform Controller Hub (PCH) and enables higher performance, lower cost, easier validation, and improved x-y footprint. The processor includes an Integrated Display Engine, Processor Graphics, PCI Express ports, and an Integrated Memory Controller. The processor is designed for desktop platforms. The processor offers either 6 or 16 graphic execution units (EUs). The number of EU engines supported may vary between processor SKUs. The processor is offered in an 1155-land LGA package.
Processor Feature Details
• Four or two execution cores
• A 32-KB instruction and 32-KB data first-level cache (L1) for each core
• A 256-KB shared instruction / data second-level cache (L2) for each core
• Up to 8-MB shared instruction / data third-level cache (L3), shared among all cores
Supported Technologies
• Intel® Virtualization Technology (Intel® VT) for Directed I/O (Intel® VT-d)
• Intel® Virtualization Technology (Intel® VT) for IA-32, Intel® 64 and Intel® Architecture (Intel® VT-x) Intel® Active Management Technology (Intel® AMT) 8.0
• Intel® Trusted Execution Technology (Intel® TXT)
• Intel® Streaming SIMD Extensions 4.1 (Intel® SSE4.1)
• Intel® Streaming SIMD Extensions 4.2 (Intel® SSE4.2)
• Intel® Hyper-Threading Technology (Intel® HT Technology)
• Intel® 64 Architecture
• Execute Disable Bit
• Intel® Turbo Boost Technology
• Intel® Advanced Vector Extensions (Intel® AVX)
• Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI)
• PCLMULQDQ Instruction
• RDRAND instruction for random number generation
• SMEP – Supervisor Mode Execution Protection
• PAIR – Power Aware Interrupt Routing
Compatibility:
| Intel® Server Board S1200BTSR | Intel® Server Board S1200BTLR | Intel® Server System R1304BTLSHBNR | Intel® Server System R1304BTLSFANR |
| Intel® Server System R1304BTSSFANR | Intel® Server System P4304BTLSFCNR | Intel® Server System P4304BTSSFCNR | Intel® Server System P4304BTLSHCNR |
Specifications
| ESSENTIALS | |
|---|---|
| PERFORMANCE | |
| SUPPLEMENTAL INFORMATION | |
| PROCESSOR GRAPHICS | |
| MEMORY SPECIFICATIONS | |
| EXPANSION OPTIONS | |
| PACKAGE SPECIFICATIONS | |
| ADVANCED TECHNOLOGIES | |
| SECURITY & RELIABILITY | |
| Product Collection | Legacy Intel® Core™ Processors |
| Code Name | Products formerly Ivy Bridge EN |
| Vertical Segment | Desktop |
| Processor Number | i3-3220 |
| Lithography | 22 nm |
| Number of Cores | 2 |
| Number of Threads | 4 |
| Processor Base Frequency | 3.30 GHz |
| Cache | 3 MB Intel® Smart Cache |
| Bus Speed | 5 GT/s |
| TDP | 55 W |
| Embedded Options Available | Yes |
| Processor Graphics | Intel® HD Graphics 2500 |
| Graphics Base Frequency | 650 MHz |
| Graphics Max Dynamic Frequency | 1.05 GHz |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Flexible Display Interface (Intel® FDI) | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported | 3 |
| Device ID | 0x152 |
| Max Memory Size (dependent on memory type) | 32 GB |
| Memory Types | DDR3 1333/1600 |
| Max Number of Memory Channels | 2 |
| Max Memory Bandwidth | 25.6 GB/s |
| ECC Memory Supported | No |
| PCI Express Revision | 2.0 |
| PCI Express Configurations | up to 1x16, 2x8, 1x8 & 2x4 |
| Sockets Supported | FCLGA1155 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | 2011C |
| TCase | 65.3°C |

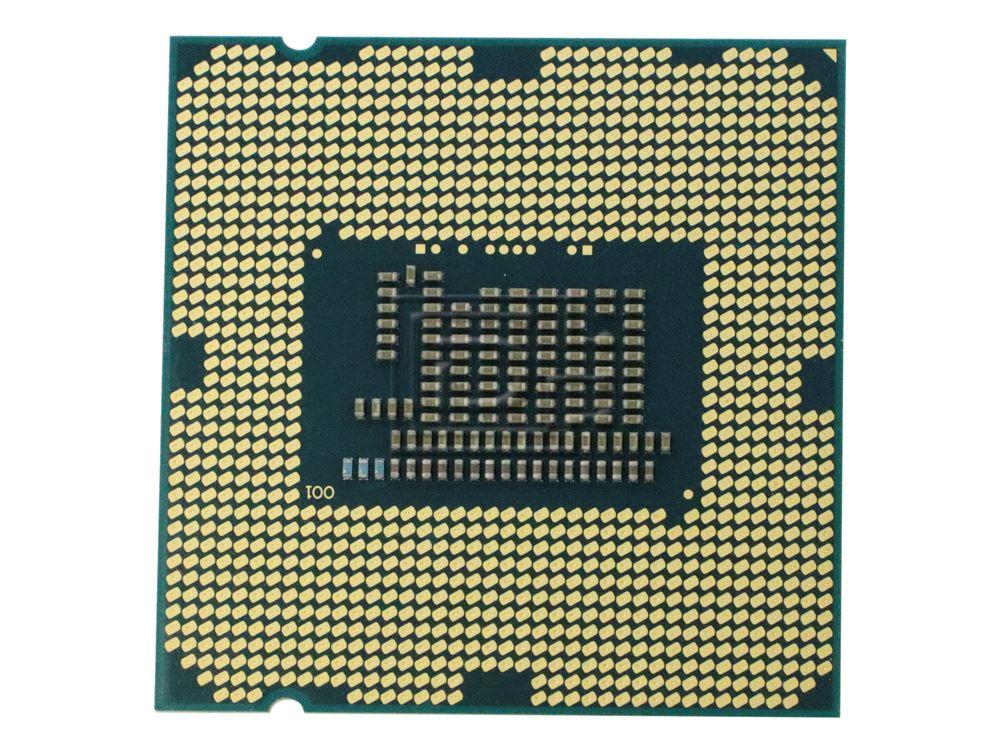

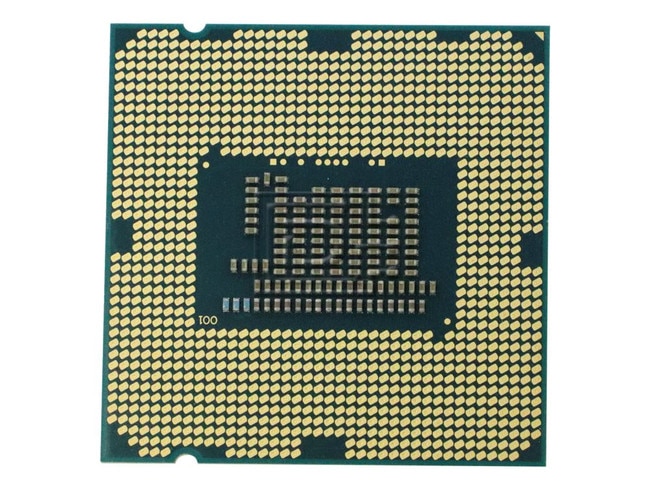

| Package Size | 37.5mm x 37.5mm |
| Intel Turbo Boost Technologies | 2.0 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel Hyper-Threading Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® TSX-NI | No |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Intel Identity Protection Technology | Yes |
| Intel AES New Instructions | No |
| Secure Key | No |
| Intel® OS Guard | Yes |
| Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
ROHS Compliant
Alternate MPNs: SR0RG CM8063701137502
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
