INTEL Part #/MPN: SSDSC2KB240G801
DiscTech Item #: INT-SSDSC2KB240G801-NP-OE
- New Pull
- Warranty:1 Year DiscTech
- Low Stock:Call for ETA
Enterprise Grade
Capacity: 240GB
Speed: Solid State
Interface Types: SATA
Form Factor: 2.5" x 7mm Fits All laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 560/280
Average Seek Time: 36 µs / 37 µs
Electrical Interface: SATA 600 - 6Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Read Intensive / RI

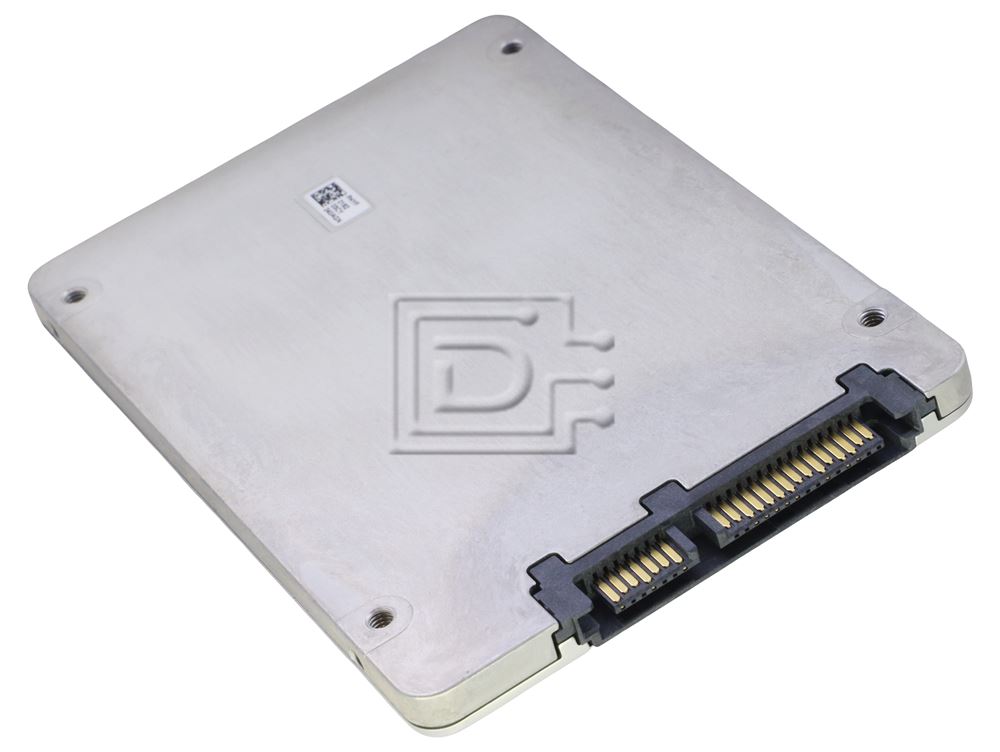

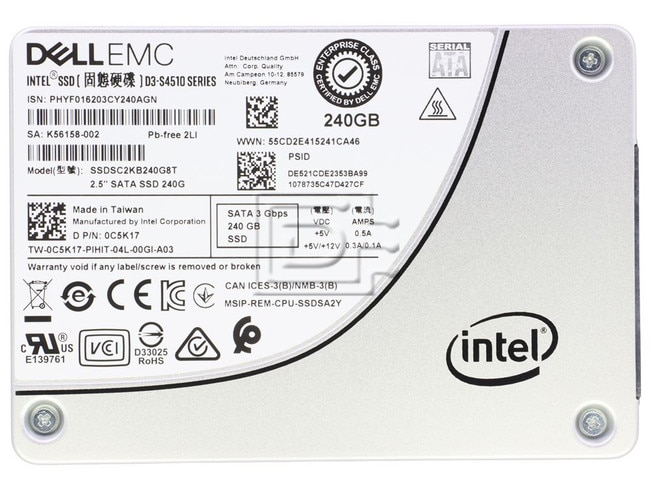

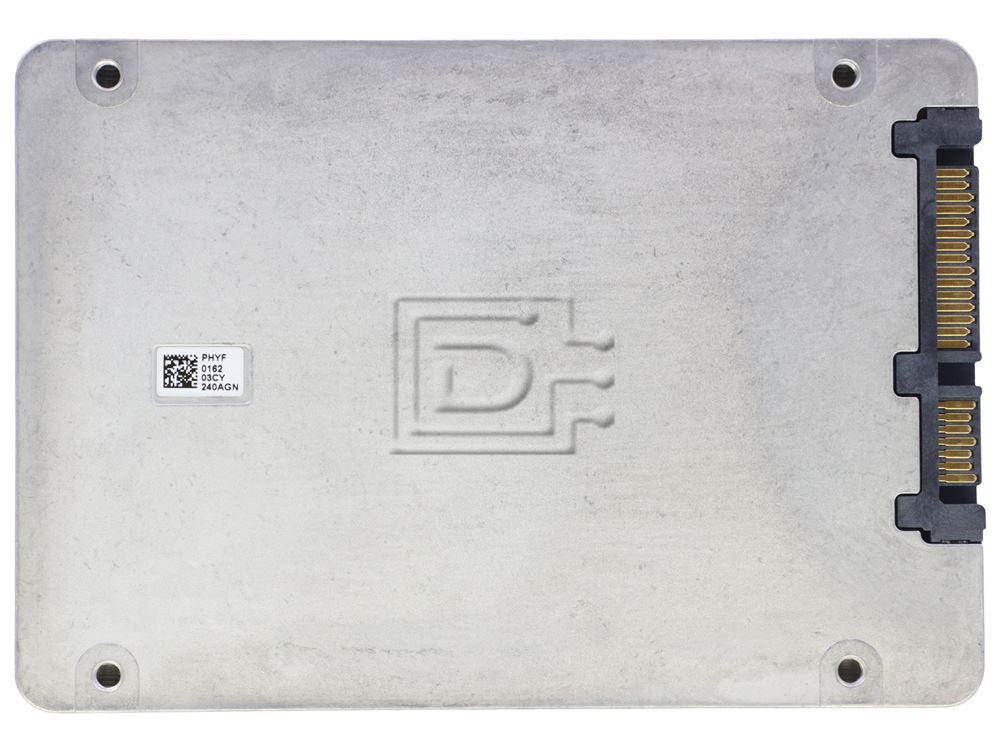

Intel SSDSC2KB240G801 / SSDSC2KB240G8 240GB 2.5-Inch 6Gbps TLC D3 S4510 Series Read Intensive SED SATA Solid State Drive - New Pull
Intel SSDSC2KB240G801 / SSDSC2KB240G8 240GB / 3840GB 2.5" 6.0 Gb/s 3D NAND TLC / Triple Level Cell D3 S4510 Series RI / Read Intensive 2-DWPD / Drive Writes Per Day SED / Self-Encrypting SATA / Serial ATA SSD / Solid State Drive - New Pull
INTEL SSD D3-S4510 SERIES
Storage inspired. Infrastructure optimized.
Replace HDDs with the highly efficient Intel® SSD D3-S4510 Series to reduce storage operating cost, accelerate read-intensive workloads with power efficient performance.
Move to more efficient storage while preserving your legacy infrastructure. Replacing HDDs with the Intel® SSD D3-S4510 and D3-S4610 Series based on 64-layer Intel® 3D NAND TLC, reduces the storage operating cost, accelerates read-intensive workloads at higher service levels, and improves overall system reliability and flexibility.
These reliable SSDs meet demanding service level requirements while increasing server efficiency. Innovative SATA firmware and the latest generation of Intel® 3D NAND make SSD D3-S4510 and D3-S4610 compatible with existing SATA setups for an easy storage upgrade.
Reduce Operating Cost While Preserving Infrastructure Investment
Built for compatibility in legacy infrastructures, the SSD D3-S4510 and D3-S4610 minimize the costs associated with modernizing your data center. Available in a variety of capacities, from 240GB up to 7.68TB, in a standard 2.5-inch form factor, the larger capacity drives consume up to 6x lower power1 and have up to 6x lower cooling1 requirements than 2.5-inch HDDs. The SSD D3-S4510 and D3-S4610 also enable 3.2x more data to be stored in the same amount of space.
Accelerate Read-Intensive Workloads with Power-Efficient Performance
Simply by integrating SSDs into the environment, organizations can improve server agility with up to 300x more IOPS/TB4 than HDDs, supporting more users and better services to grow the business without expanding the server footprint. Additionally, the flex workload feature enables a common drive type to cover more workloads with flexible capacity, flexible endurance, and flexible power-efficient performance.
Improve System Reliability and Flexibility
The reliability of the SSD D3-S4510 and D3-S4610 reduces the need for drive replacement that is necessary with HDDs. With a 4.2x lower annualized failure rate (AFR) compared to HDDs, IT departments will spend less time and expense replacing or upgrading storage devices.3 Equally important, once the SSDs are installed, the innovative SATA firmware completes updates without reset, reducing downtime.
Minimize Service Disruptions
For years, Intel has been a leader in providing trusted data center SSDs that maximize data continuity in enterprise and cloud data centers. That reputation continues with the D3-S4510 and D3-S4610 with key capabilities that help ensure more uptime:
- Consistently delivers durable performance to optimize service level continuity
- End-to-end data protection helps keep data safe—even in the event of a power loss
- Up to 4.2x lower annualized failure rates (AFR) means fewer drive replacements3
- Innovative firmware completes updates without server reset, reducing downtime
- Simplified configurations reduce risk of component failure and streamline maintenance
Compatibility:
This drive is compatible with servers and arrays that accept 2.5” 7mm SATA drives
Intel SSD D3-S4510 Series | |
---|---|
Standard Model Numbers | SSDSC2KB240G801 |
Essentials | |
Product Collection | Intel® SSD D3-S4510 Series |
Code Name | Products formerly Youngsville Refresh |
Capacity | 240 GB |
Status | Launched |
Launch Date | Q3'18 |
Lithography Type | 3D TLC NAND |
Use Conditions | Server/Enterprise |
Performance | |
Sequential Read (up to) | 560 MB/s |
Sequential Write (up to) | 280 MB/s |
Random Read (100% Span) | 90000 IOPS |
Random Write (100% Span) | 16000 IOPS |
Latency - Read | 36 µs |
Latency - Write | 37 µs |
Power - Active | 2.4W |
Power - Idle | 1.0W |
Reliability | |
Vibration - Operating | 2.17 GRMS |
Vibration - Non-Operating | 3.13 GRMS |
Shock (Operating and Non-Operating) | 1000 G/0.5ms |
Operating Temperature Range | 0°C to 70°C |
Endurance Rating (Lifetime Writes) | 0.9PBW |
Mean Time Between Failures (MTBF) | 2 million hours |
Uncorrectable Bit Error Rate (UBER) | 1 sector per 1017 bits read |
Package Specifications | |
Form Factor | 2.5" 7mm |
Interface | SATA 3.0 6Gb/S |
Advanced Technologies | |
Enhanced Power Loss Data Protection | Yes |
Hardware Encryption | AES 256 bit |
High Endurance Technology (HET) | No |
Temperature Monitoring and Logging | Yes |
End-to-End Data Protection | Yes |
Intel® Smart Response Technology | No |
Intel® Rapid Start Technology | No |
Intel® Remote Secure Erase | No |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDSC2KB240G8
Weight: 0.5 lb
Warranty: 1 Year DiscTech
New Pull
1 Year DiscTech Warranty
