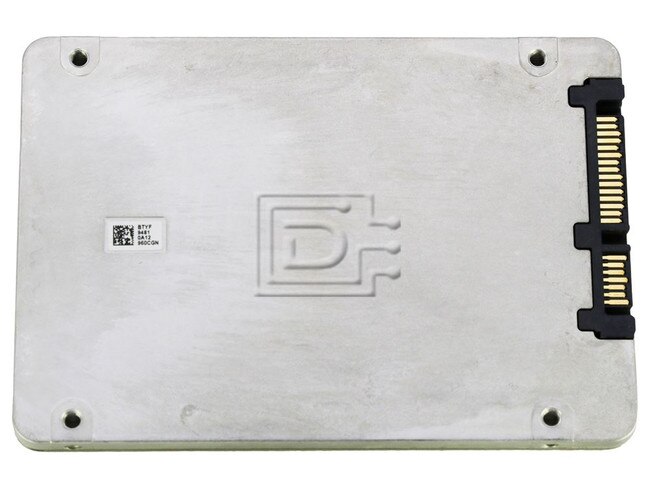

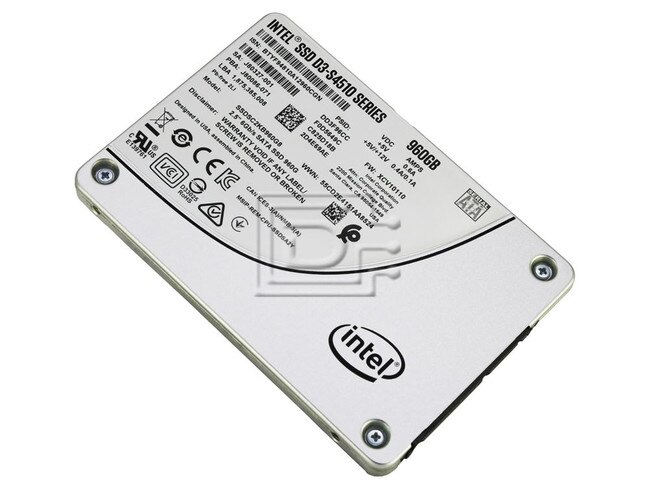

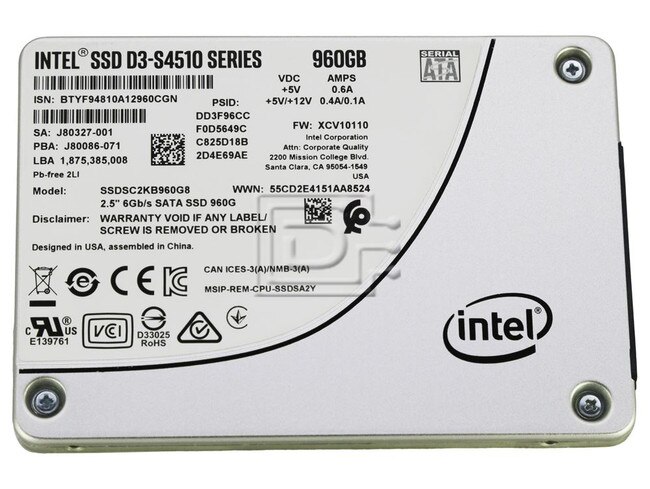

Intel D3 S4510 SSDSC2KB960G801 / SSDSC2KB960G8 960GB SED SATA Solid State Drive


DiscTech Item #: INT-SSDSC2KB960G801-C9-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 960GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx9mm Fits Most laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 560/510

Average Seek Time: 36 µs / 37 µs

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Intel SSDSC2KB960G801 / SSDSC2KB960G8 960GB 2.5" 6Gbps TLC D3 S4510 Series Read Intensive SED SATA Solid State Drive - Certified 95 OEM

Intel SSDSC2KB960G801 / SSDSC2KB960G8 960GB 2.5" 6.0 Gb/s 3D NAND TLC / Triple Level Cell D3 S4510 Series RI / Read Intensive 1.9-DWPD / Drive Writes Per Day SED / Self-Encrypting SATA / Serial ATA SSD / Solid State Drive - Certified 95 OEM

Storage inspired. Infrastructure optimized.

Replace HDDs with the highly efficient Intel® SSD D3-S4510 Series to reduce storage operating cost, accelerate read-intensive workloads with power efficient performance.

Move to more efficient storage while preserving your legacy infrastructure. Replacing HDDs with the Intel® SSD D3-S4510 and D3-S4610 Series based on 64-layer Intel® 3D NAND TLC, reduces the storage operating cost, accelerates read-intensive workloads at higher service levels, and improves overall system reliability and flexibility.

These reliable SSDs meet demanding service level requirements while increasing server efficiency. Innovative SATA firmware and the latest generation of Intel® 3D NAND make SSD D3-S4510 and D3-S4610 compatible with existing SATA setups for an easy storage upgrade.

Reduce Operating Cost While Preserving Infrastructure Investment
Built for compatibility in legacy infrastructures, the SSD D3-S4510 and D3-S4610 minimize the costs associated with modernizing your data center. Available in a variety of capacities, from 240GB up to 7.68TB, in a standard 2.5-inch form factor, the larger capacity drives consume up to 6x lower power1 and have up to 6x lower cooling1 requirements than 2.5-inch HDDs. The SSD D3-S4510 and D3-S4610 also enable 3.2x more data to be stored in the same amount of space.

Accelerate Read-Intensive Workloads with Power-Efficient Performance
Simply by integrating SSDs into the environment, organizations can improve server agility with up to 300x more IOPS/TB4 than HDDs, supporting more users and better services to grow the business without expanding the server footprint. Additionally, the flex workload feature enables a common drive type to cover more workloads with flexible capacity, flexible endurance, and flexible power-efficient performance.

Improve System Reliability and Flexibility
The reliability of the SSD D3-S4510 and D3-S4610 reduces the need for drive replacement that is necessary with HDDs. With a 4.2x lower annualized failure rate (AFR) compared to HDDs, IT departments will spend less time and expense replacing or upgrading storage devices.3 Equally important, once the SSDs are installed, the innovative SATA firmware completes updates without reset, reducing downtime.

Minimize Service Disruptions
For years, Intel has been a leader in providing trusted data center SSDs that maximize data continuity in enterprise and cloud data centers. That reputation continues with the D3-S4510 and D3-S4610 with key capabilities that help ensure more uptime:

  • Consistently delivers durable performance to optimize service level continuity
  • End-to-end data protection helps keep data safe—even in the event of a power loss
  • Up to 4.2x lower annualized failure rates (AFR) means fewer drive replacements3
  • Innovative firmware completes updates without server reset, reducing downtime
  • Simplified configurations reduce risk of component failure and streamline maintenance



This drive is compatible with servers and arrays that accept 2.5” 7mm SATA drives

Intel SSD D3-S4510 Series
Standard Model NumbersSSDSC2KB960G801
Product CollectionIntel® SSD D3-S4510 Series
Code NameProducts formerly Youngsville Refresh
Capacity960 GB
Launch DateQ3'18
Lithography Type3D TLC NAND
Use ConditionsServer/Enterprise
Sequential Read (up to)560 MB/s
Sequential Write (up to)510 MB/s
Random Read (100% Span)95000 IOPS
Random Write (100% Span)36000 IOPS
Latency - Read36 µs
Latency - Write37 µs
Power - Active3.W
Power - Idle1.W
Vibration - Operating2.17 GRMS
Vibration - Non-Operating3.13 GRMS
Shock (Operating and Non-Operating)1000 G/0.5ms
Operating Temperature Range0°C to 70°C
Endurance Rating (Lifetime Writes)3.4PBW
Mean Time Between Failures (MTBF)2 million hours
Uncorrectable Bit Error Rate (UBER)1 sector per 1017 bits read
Package Specifications
Form Factor2.5" 7mm
InterfaceSATA 3.0 6Gb/S
Advanced Technologies
Enhanced Power Loss Data ProtectionYes
Hardware EncryptionAES 256 bit
High Endurance Technology (HET)No
Temperature Monitoring and LoggingYes
End-to-End Data ProtectionYes
Intel® Smart Response TechnologyNo
Intel® Rapid Start TechnologyNo
Intel® Remote Secure EraseNo

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SSDSC2KB960G8

Weight: 1 lb

Warranty: 1 Year DiscTech

Certified 95

Condition Levels Explained

These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
