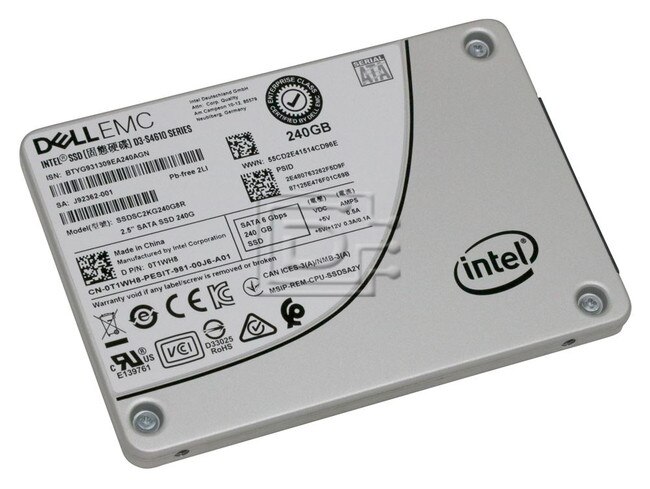

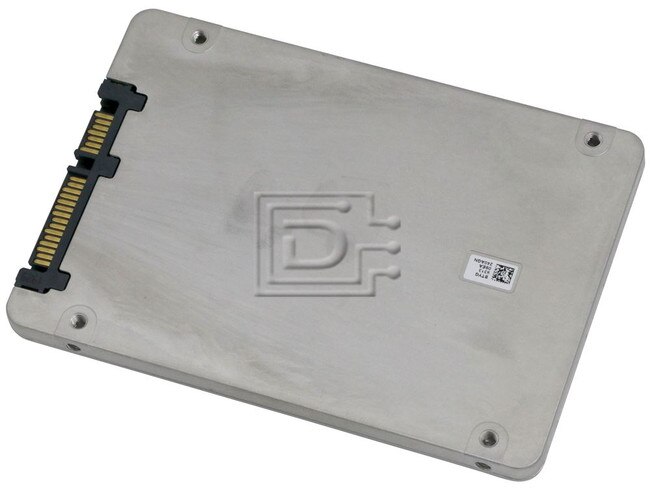

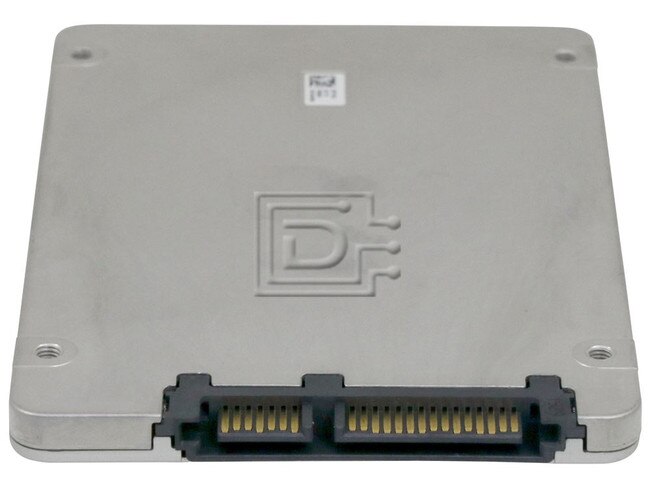

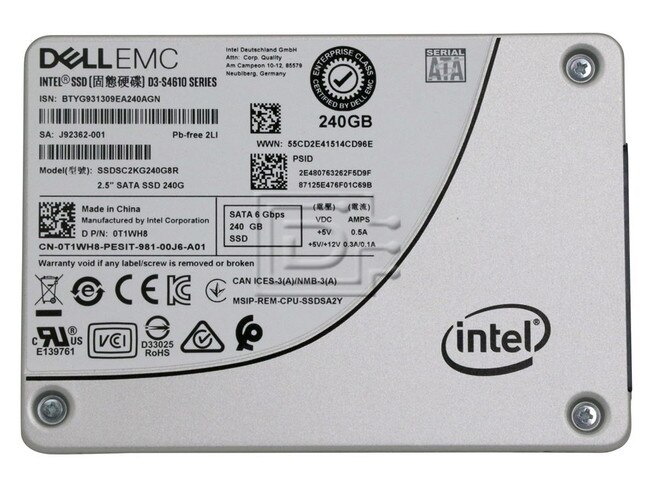

Dell T1WH8 / Intel SSDSC2KG240G8R 240GB 2.5" 6Gbps TLC D3 S4610 Series Mixed Use SED SATA SSD

INTEL Part #/MPN: SSDSC2KG240G8R

DiscTech Item #: INT-SSDSC2KG240G8R-BN-OE-DEL


$119.99
$119.99

Enterprise Grade

Capacity: 240GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 560/320

Average Seek Time: 36 µs / 37 µs

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Mixed Use

Compatible Systems: Dell 15th Gen. R650 / R750, Dell 14th Gen. R640/R740, Dell 14th Gen High Density ME4084/ME484, Dell 13th Gen. R730/T630, Dell 13th Gen. MD3x60 High Density Arrays, Dell 13th Gen. FD332, Dell 12th Gen M420 M620 M640 M820 Blade, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

Dell T1WH8 / Intel SSDSC2KG240G8R 240GB 2.5" 6Gbps TLC D3 S4610 Series Mixed Use SED SATA Solid State Drive - Brand New

Dell T1WH8 / Intel SSDSC2KG240G8R 240GB 2.5" 6Gbps TLC D3 S4610 Series Mixed Use SED SATA Solid State Drive

Dell DP/N: 0T1WH8

INTEL SSD D3-S4610 SERIES

Storage inspired. Infrastructure optimized.

Replace HDDs with the highly efficient Intel® SSD D3-S4510 Series to reduce storage operating cost, accelerate read-intensive workloads with power efficient performance.

Move to more efficient storage while preserving your legacy infrastructure. Replacing HDDs with the Intel® SSD D3-S4510 and D3-S4610 Series based on 64-layer Intel® 3D NAND TLC, reduces the storage operating cost, accelerates read-intensive workloads at higher service levels, and improves overall system reliability and flexibility.

These reliable SSDs meet demanding service level requirements while increasing server efficiency. Innovative SATA firmware and the latest generation of Intel® 3D NAND make SSD D3-S4510 and D3-S4610 compatible with existing SATA setups for an easy storage upgrade.

Reduce Operating Cost While Preserving Infrastructure Investment
Built for compatibility in legacy infrastructures, the SSD D3-S4510 and D3-S4610 minimize the costs associated with modernizing your data center. Available in a variety of capacities, from 240GB up to 7.68TB, in a standard 2.5-inch form factor, the larger capacity drives consume up to 6x lower power1 and have up to 6x lower cooling1 requirements than 2.5-inch HDDs. The SSD D3-S4510 and D3-S4610 also enable 3.2x more data to be stored in the same amount of space.

Accelerate Read-Intensive Workloads with Power-Efficient Performance
Simply by integrating SSDs into the environment, organizations can improve server agility with up to 300x more IOPS/TB4 than HDDs, supporting more users and better services to grow the business without expanding the server footprint. Additionally, the flex workload feature enables a common drive type to cover more workloads with flexible capacity, flexible endurance, and flexible power-efficient performance.

Improve System Reliability and Flexibility
The reliability of the SSD D3-S4510 and D3-S4610 reduces the need for drive replacement that is necessary with HDDs. With a 4.2x lower annualized failure rate (AFR) compared to HDDs, IT departments will spend less time and expense replacing or upgrading storage devices.3 Equally important, once the SSDs are installed, the innovative SATA firmware completes updates without reset, reducing downtime.

Minimize Service Disruptions
For years, Intel has been a leader in providing trusted data center SSDs that maximize data continuity in enterprise and cloud data centers. That reputation continues with the D3-S4510 and D3-S4610 with key capabilities that help ensure more uptime:

  • Consistently delivers durable performance to optimize service level continuity
  • End-to-end data protection helps keep data safe—even in the event of a power loss
  • Up to 4.2x lower annualized failure rates (AFR) means fewer drive replacements3
  • Innovative firmware completes updates without server reset, reducing downtime
  • Simplified configurations reduce risk of component failure and streamline maintenance


Compatibility:

This drive is compatible with servers and arrays that accept 2.5” 7mm SATA drives

Intel SSD D3-S4610 Series
Standard Model NumbersSSDSC2KG240G8R
Essentials
Product CollectionIntel® SSD D3-S4610 Series
Code NameProducts formerly Youngsville Refresh
Capacity240 GB
StatusLaunched
Launch DateQ3'18
Lithography Type3D TLC NAND
Use ConditionsServer/Enterprise
Performance
Sequential Read (up to)560 MB/s
Sequential Write (up to)320 MB/s
Random Read (100% Span)92000 IOPS
Random Write (100% Span)28000 IOPS
Latency - Read36 µs
Latency - Write37 µs
Power - Active2.4W
Power - Idle1.0W
Reliability
Vibration - Operating2.17 GRMS
Vibration - Non-Operating3.13 GRMS
Shock (Operating and Non-Operating)1000 G/0.5ms
Operating Temperature Range0°C to 70°C
Endurance Rating (Lifetime Writes)1.4PBW
Mean Time Between Failures (MTBF)2 million hours
Uncorrectable Bit Error Rate (UBER)1 sector per 1017 bits read
Package Specifications
Form Factor2.5" 7mm
InterfaceSATA 3.0 6Gb/S
Advanced Technologies
Enhanced Power Loss Data ProtectionYes
Hardware EncryptionAES 256 bit
High Endurance Technology (HET)No
Temperature Monitoring and LoggingYes
End-to-End Data ProtectionYes
Intel® Smart Response TechnologyNo
Intel® Rapid Start TechnologyNo
Intel® Remote Secure EraseNo

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: T1WH8 0T1WH8

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
