INTEL Part #/MPN: SSDPE2KX010T8
DiscTech Item #: INT-SSDPE2KX010T8-BN-OE-DEG
- Brand New
- Warranty:1 Year DiscTech
- Low Stock:Call for ETA
Enterprise Grade
Capacity: 1TB
Speed: Solid State
Interface Types: NVMe U.2, PCIe
Form Factor: 2.5" SFF Server Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 2850/1100
Average Seek Time: 77 µs / 18 µs
Electrical Interface: PCIe - v3.1 -16GBps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Read Intensive / RI

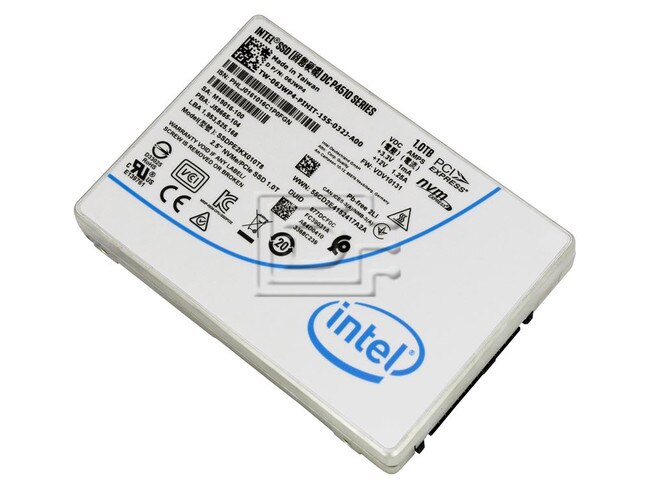

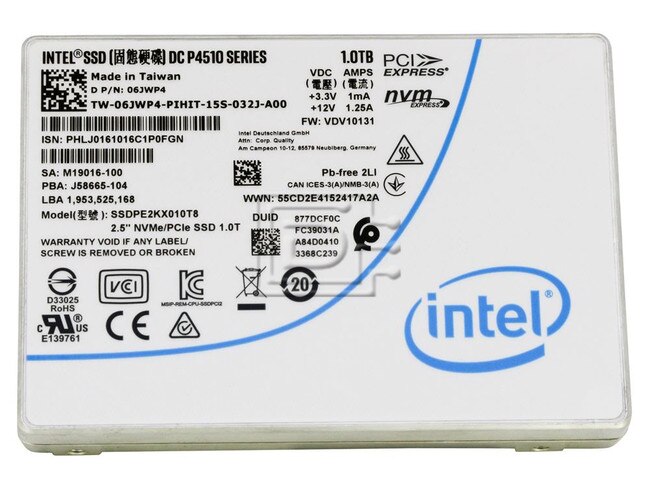

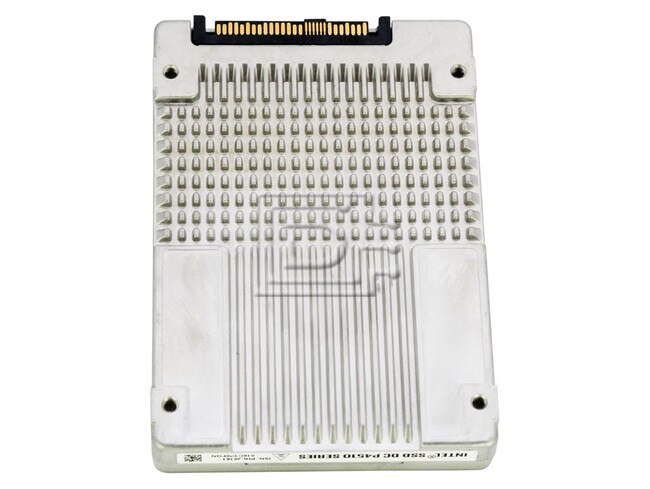

Intel DC P4510 Series SSDPE2KX010T8 / Dell 6JWP4 1TB 2.5" SFF TLC Read Intensive U.2 PCIe 3.1 NVMe Solid State Drive - Brand New OEM
Intel DC P4510 Series SSDPE2KX010T8 / SSDPE2KX010T801 / Dell 06JWP4 / 6JWP4 1TB / 1000GB 2.5" SFF / Small Form Factor 3D TLC NAND / Triple Level Cell DC P4510 Series Read Intensive 1-DWPD / Drive Writes Per Day U.2 PCIe / PCI Express 3.1 x4 NVMe / NVM Express SSD / Solid State Drive - Brand New OEM
Intel SSD DC P4510 Series
Cloud Inspired. Storage Optimized.
Designed to meet today’s increasingly demanding service levels and support broader cloud workloads, while reducing storage costs.
Built from the success of its cloud-inspired predecessor – the Intel® SSD DC P4500 Series – and architected with 64-layer, TLC, Intel® 3D NAND technology, the Intel® SSD DC P4510 Series delivers performance, Quality of Service (QoS), and capacity improvements to further optimize storage efficiency, enabling data centers to do more per server, minimize service disruptions, and efficiently manage at scale.
Built on NVMe* specification 1.2, these PCIe* SSDs are available in 1TB, 2TB, 4TB, and 8TB in the U.2 2.5” (15mm) form factor.
An SSD Built for Cloud Storage Architectures
Multi-cloud has become a core element for any enterprise strategy, and top cloud providers have responded by openly embracing PCIe/NVMe-based SSDs with scalable performance, low latency, and continued innovation.
As software-defined and converged infrastructures are swiftly adopted, the need increases to maximize efficiency, revitalize existing hardware, deploy new workloads, and yet reduce operational expenditures.
The Intel SSD DC P4510 Series meets these requirements. It significantly increases server agility and utilization, and accelerates applications across a wide range of cloud workloads.
Do More per Server
Intel’s 64-layer, TLC, 3D NAND technology enables the DC P4510 to double the capacity available compared to its immediate predecessor, the Intel SSD DC P4500. This increased density is the key to supporting broader workloads, allowing cloud service providers to increase users and improve data service levels. Better QoS is ensured with an intelligent firmware algorithm that keeps host and background data read/write at an optimum balance.
With the DC P4510, host applications will not only have access to double the capacity, but will also be serviced at up to 80% faster write rate1, up to 2x better random write IOPS/TB2, and up to 10x reduction of service time (compared to the DC P4500) at a QoS metric of 99.99% availability for random access workload.
With this level of workload ability and agility, data centers can refresh existing hardware and reduce operational expenditures.
Minimize Service Disruptions
To ensure telemetry information without disrupting ongoing I/Os, the DC P4510 includes enhanced SMART monitoring of drive health and status, using an in-band mechanism and out-of-band access. A power loss imminent (PLI) protection scheme with a built-in self-test guards against data loss if system power is suddenly cut.
Coupled with our industry-leading end-to-end data path protection scheme , PLI features enable ease of deployment into resilient data centers where data corruption from system-level glitches is not tolerated. The DC P4510 combines firmware enhancements with new 3D NAND features to prioritize host workload and ensure better service levels. The result: 6x workload support at a given service level response time.
Efficiently Manage at Scale
To help data centers make the most of increased SSD capacity per server, dynamic namespace management delivers the flexibility to enable more users and scale deployment. The DC P4510 also provides security features like TCG Opal* 2.0 and built-in AES-XTS 256-bit encryption engine, required by some secure platforms.
With the capability to manage multiple firmware versions on a drive and to support updates without a reset, the DC P4510 improves integration and increases the ease and efficiency of deploying at scale.
Choose the DC P4510 for Data Center Storage
With the increased density of Intel 64-layer 3D NAND and enhanced firmware features, the DC P4510 is built to handle read-intensive workloads and beyond. The DC P4510 creates greater Quality of Service, bandwidth, and performance to lead data centers through their evolving transformation.
Compatibility:
This drive is compatible with servers and arrays that accept 2.5” 15mm SFF PCIe drives
Intel® SSD DC P4510 Series | |
---|---|
Model Number | SSDPE2KX010T8 |
Essentials | |
Product Collection | Intel SSD DC P4510 Series |
Code Name | Products formerly Cliffdale Refresh |
Capacity | 1TB / 1000GB |
Status | Launched |
Launch Date | Q3'17 |
Lithography Type | 64-Layer 3D TLC NAND |
PERFORMANCE | |
Sequential Read | (up to) 2850 MB/s |
Sequential Write | (up to) 1100 MB/s |
Random Read | (100% Span) 465000 IOPS |
Random Write | (100% Span) 70000 IOPS |
Latency | Read 77 µs |
Latency | Write 18 µs |
Power - Active | 10 |
Power - Idle | 5 |
RELIABILITY | |
Vibration - Operating | 2.17GRMS(5-700MHz) |
Vibration - Non-Operating | 3.13GRMS(5-800MHz) |
Shock (Operating and Non-Operating | 1000 G/0.5 ms |
Operating Temperature Range | 0°C to 70°C |
Endurance Rating (Lifetime Writes) | 1.92 PBW / 1920 TBW |
Mean Time Between Failures (MTBF) | 2 million hours |
Uncorrectable Bit Error Rate (UBER) | 1E-17 |
PACKAGE SPECIFICATIONS | |
Weight | 139g / 0.31lbs |
Form Factor | 2.5" 15mm |
Interface | PCIe NVMe 3.0 x4 U.2 |
ADVANCED TECHNOLOGIES | |
Enhanced Power Loss Data Protection | Yes |
Hardware Encryption | AES 256 bit |
Temperature Monitoring and Logging | Yes |
End-to-End Data Protection | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 06JWP4 6JWP4
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
1 Year DiscTech Warranty
