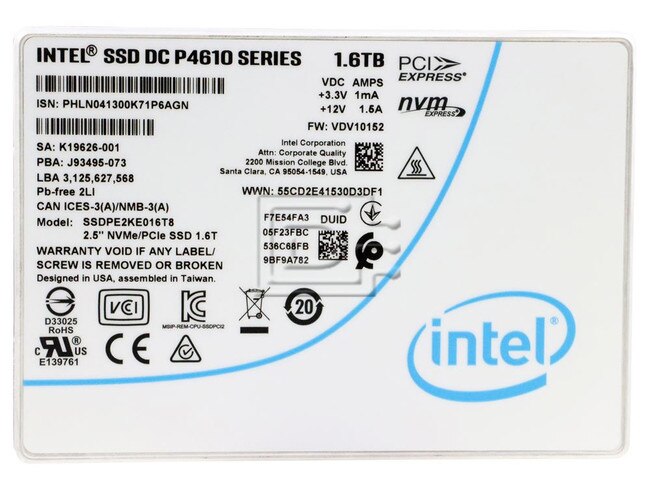

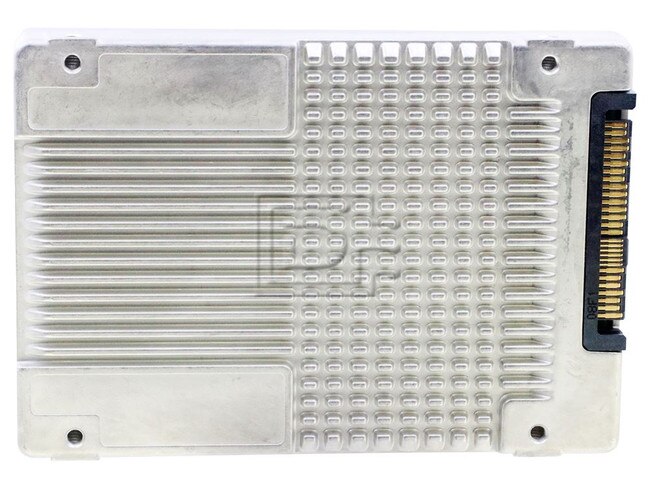

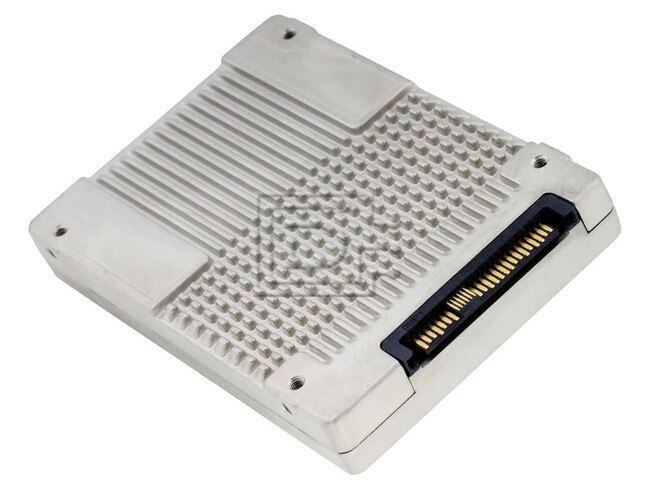

Intel DC P4610 SSDPE2KE016T801 1.6TB TLC SED PCIe NVMe Solid State Drive

- Brand NewCondition Levels Explained
The product is brand new.
- Special Order - Ships in 3-5 business daysSpecial Order - Ships in 3-5 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
Capacity: | 1.6TB |
Speed: | Solid State |
Interface Types: | NVMe U.2 |
Form Factor: | 2.5" SFF Server Drive |
SSD Endurance DWPD: | Enterprise Mixed Use / MU |
Electrical Interface: | PCIe - v3.1 -16GBps |
Description
Intel SSDPE2KE016T801 1.6TB 2.5" SFF TLC DC P4610 Series Mixed Use SED PCIe NVMe 3.1 Solid State Drive - Brand New
Intel SSDPE2KE016T801 1.6TB / 1600GB U.2 2.5" SFF / Small Form Factor TLC / Triple-Level Cell DC P4610 Series MU / Mixed Use 4-DWPD / Drive Writes Per Day SED / Self-Encrypting PCIe / PCI Express 3.1 x4 NVMe / NVM Express 1.2 SSD / Solid State Drive - Brand New
INTEL SSD DC P4610 SERIES
Designed to meet today’s increasingly demanding service levels and support broader cloud workloads, while reducing storage costs.
7.68TB / 7680GB 2.5in PCIe 3.1 x 5 3D2 TLC
- 7.68 TB Capacity
- U.2 15mm Form Factor
- PCIe NVMe 3.1 x4 Interface
Built from the success of its cloud-inspired predecessor – the Intel® SSD DC P4600 Series – and architected with 64-layer TLC Intel® 3D NAND Technology, the Intel® SSD DC P4610 Series delivers performance, quality of service (QoS), and capacity improvements to further optimize storage efficiency, enabling data centers to do more per server, minimize service disruptions, and efficiently manage at scale. Built on NVMe* specification 1.2, these PCIe* SSDs are available in 1.6TB, 3.2TB, 6.4TB, and 7.68TB in the U.2 2.5” (15mm) form factor.
- An SSD Built for Cloud Storage Architectures
- Do More Per Server
- Minimize Service Disruptions
- Efficiently Manage at Scale
- Choose the DC P4610 for Data Center Storage
- Capacity
- 1.6TB / 1600GB
- 3.2TB / 3200GB
- 6.4TB / 6400GB
- 7.68TB / 7680GB
- Performance
- 128k Sequential Read/Write: Up to 3200/3200 MB/s
- Random 4KB Read/Write: Up to 654K/220K IOPs
- Reliability
- End-to-end data protection from silent data corruption
- Uncorrectable bit error rate < 1 sector per 1017 bits read
- Interface
- PCIe 3.1 x4
- NVMe 1.2
- Form Factor
- Media
- Intel 3D NAND Technology, 64-layer, TLC
- Endurance
- Up to 3 DWPD (JESD219 worklad)
- Power
- this is the final line
An SSD Built for Cloud Storage Architectures
Multi-cloud has become a core element for any enterprise strategy, and top cloud providers have responded by openly embracing PCIe*/NVMe*-based SSDs with scalable performance, low latency, and continued innovation. As software-defined and converged infrastructures are swiftly adopted, the need increases to maximize efficiency, revitalize existing hardware, deploy new workloads, and yet reduce operational expenditures. The SSD DC P4610 Series meets these requirements. It significantly increases server agility and utilization, and accelerates applications across a wide range of cloud workloads.
Do More Per Server
Intel’s 64-layer TLC 3D NAND technology enables the DC P4610 to increase available capacity up to 20% more compared to its immediate predecessor, the Intel® SSD DC P4600.1 This increased density is the key to supporting broader workloads, allowing cloud and enterprise service providers to increase users, and improve data service levels. Better QoS is ensured with an intelligent firmware algorithm that keeps host and background data reads and writes at an optimum balance.
With the DC P4610, host applications will not only have access to higher capacity, but will also be serviced at up to 35% faster write rate, up to 35% more endurance per drive, and up to 4x reduction of service time at a QoS metric of 99.99% availability for random access workload.
With this level of workload ability and agility, data centers can refresh existing hardware and reduce operational expenditures.
Minimize Service Disruptions
To ensure telemetry information without disrupting ongoing I/Os, the DC P4610 includes enhanced SMART monitoring of drive health and status, using an in-band mechanism and out-of-band access. A power loss imminent (PLI) protection scheme – with a built-in self-test – guards against data loss if system power is suddenly cut.
Coupled with our industry-leading end-to-end data path protection scheme, PLI features enable ease of deployment into resilient data centers where data corruption from system-level glitches is not tolerated.5 The DC P4610 combines firmware enhancements with new 3D NAND features to prioritize host workload and ensure better service levels.
Efficiently Manage at Scale
To help data centers make the most of increased SSD capacity per server, dynamic namespace management delivers the flexibility to enable more users and scale deployment. The DC P4610 also provides security features like TCG Opal* 2.0 and built-in AES-XTS 256-bit encryption engine, required by some secure platforms.
With the capability to manage multiple firmware versions on a drive and to support updates without a reset, the DC P4610 improves integration and increases the ease and efficiency of deploying at scale.
Choose the DC P4610 for Data Center Storage
With the increased density of 64-layer Intel® 3D NAND and enhanced firmware features, the DC P4610 is built to handle mixed workloads and beyond. The DC P4610 creates greater quality of service, bandwidth, and performance, leading data centers through their evolving transformation
FEATURES AT-A-GLANCE
- U.2 23.5” x 15mm (for serviceability, hot-plug, and density)
- Up to 15 Watt
Compatibility:
This drive is compatible with servers and arrays that accept 2.5” 15mm U.2 SFF PCIe NVMe drives
Specifications
Intel® SSD DC P4610 Series | |
---|---|
Model Number | SSDPE2KE016T801 |
Essentials | |
Product Collection | Intel SSD DC P4610 Series |
Code Name | Products formerly Cliffdale Refresh |
Capacity | 1.6TB / 1600GB |
Status | Launched |
Launch Date | Q2'18 |
Lithography Type | 64-Layer 3D TLC NAND |
Use Conditions | Server/Enterprise |
PERFORMANCE | |
Sequential Read | (up to) 3200 MB/s |
Sequential Write | (up to) 2100 MB/s |
Random Read | (100% Span) 620000 IOPS |
Random Write | (100% Span) 200000 IOPS |
Latency | Read 77 µs |
Latency | Write 18 µs |
Power - Active | 13.3W |
Power - Idle | 5W |
RELIABILITY | |
Vibration - Operating | 2.17GRMS |
Vibration - Non-Operating | 3.13GRMS |
Shock (Operating and Non-Operating | 1000G |
Operating Temperature Range | 0°C to 55°C |
Endurance Rating (Lifetime Writes) | 12.25 PBW / 12,250 TBW |
Mean Time Between Failures (MTBF) | 2 million hours |
Uncorrectable Bit Error Rate (UBER) | 1 sector per 10-17 bits read |
PACKAGE SPECIFICATIONS | |
Weight | 139g / 0.31lbs |
Form Factor | U.2 15mm |
Interface | PCIe NVMe 3.1 x4 |
ADVANCED TECHNOLOGIES | |
Enhanced Power Loss Data Protection | Yes |
Hardware Encryption | AES 256 bit |
High Endurance Encryption | Yes |
Temperature Monitoring and Logging | Yes |
End-to-End Data Protection | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
