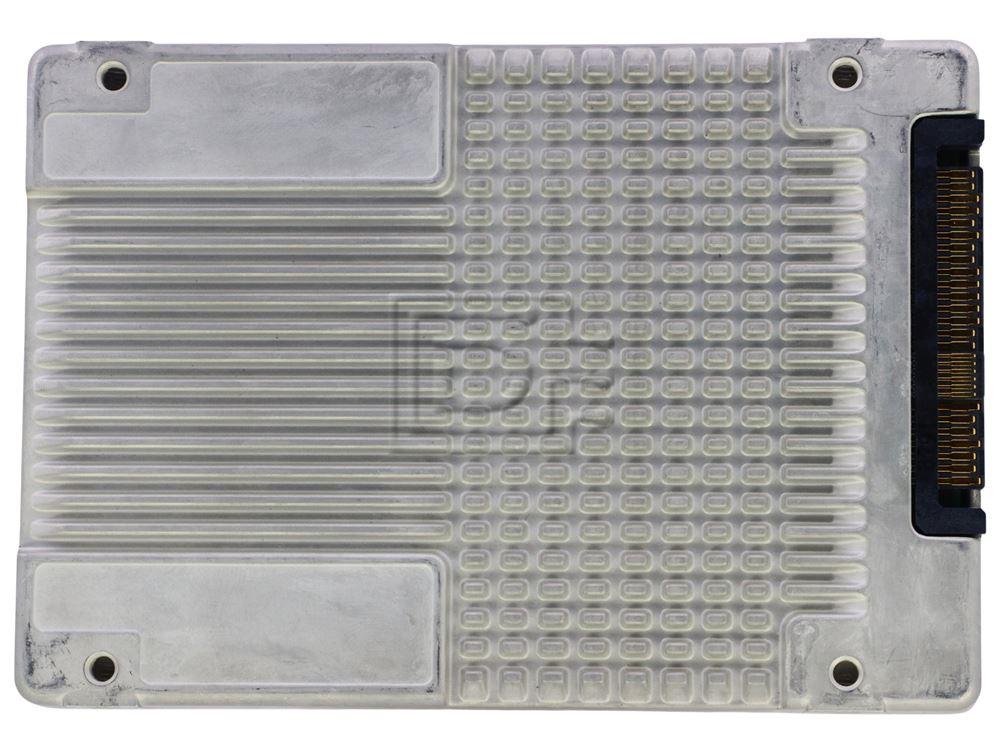

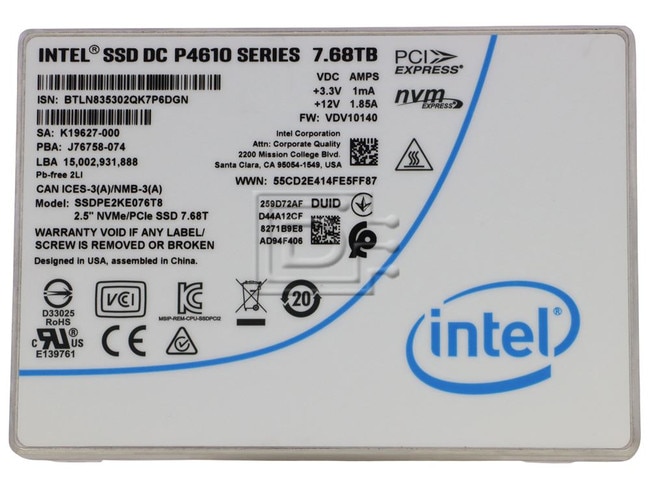

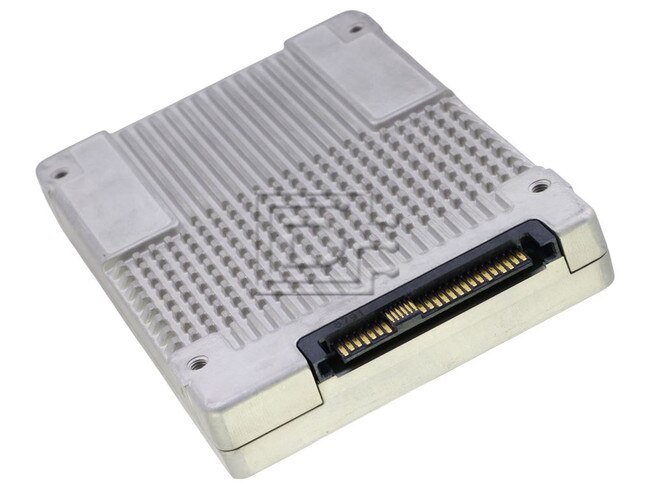

Intel DC P4610 SSDPE2KE076T801 7.68TB TLC SED PCIe NVMe Solid State Drive


DiscTech Item #: INT-SSDPE2KE076T801-BN-5Y

  • Special Order - Ships in 3-5 business days
    Special Order - Ships in 3-5 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Enterprise Grade

Capacity: 7.68TB

Speed: Solid State Memory

Interface Types: NVMe U.2, PCIe

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 3200/3000

Average Seek Time: 77 µs / 18 µs

Electrical Interface: PCIe - v3.1 -16GBps


SSD Endurance DWPD: Enterprise Mixed Use

Intel SSDPE2KE076T801 7.68TB 2.5-Inch SFF TLC DC P4610 Series Mixed Use SED PCIe NVMe 3.1 Solid State Drive - Brand New

Intel SSDPE2KE076T801 7.68TB / 7680GB U.2 2.5" SFF / Small Form Factor TLC / Triple-Level Cell DC P4610 Series MU / Mixed Use 3-DWPD / Drive Writes Per Day SED / Self-Encrypting PCIe / PCI Express 3.1 x4 NVMe / NVM Express 1.2 SSD / Solid State Drive - Brand New

Designed to meet today’s increasingly demanding service levels and support broader cloud workloads, while reducing storage costs.

7.68TB / 7680GB 2.5in PCIe 3.1 x 5 3D2 TLC

  • 7.68 TB Capacity
  • U.2 15mm Form Factor
  • PCIe NVMe 3.1 x4 Interface

Built from the success of its cloud-inspired predecessor – the Intel® SSD DC P4600 Series – and architected with 64-layer TLC Intel® 3D NAND Technology, the Intel® SSD DC P4610 Series delivers performance, quality of service (QoS), and capacity improvements to further optimize storage efficiency, enabling data centers to do more per server, minimize service disruptions, and efficiently manage at scale. Built on NVMe* specification 1.2, these PCIe* SSDs are available in 1.6TB, 3.2TB, 6.4TB, and 7.68TB in the U.2 2.5” (15mm) form factor.

  1. An SSD Built for Cloud Storage Architectures
  2. Do More Per Server
  3. Minimize Service Disruptions
  4. Efficiently Manage at Scale
  5. Choose the DC P4610 for Data Center Storage
  6. An SSD Built for Cloud Storage Architectures
    Multi-cloud has become a core element for any enterprise strategy, and top cloud providers have responded by openly embracing PCIe*/NVMe*-based SSDs with scalable performance, low latency, and continued innovation. As software-defined and converged infrastructures are swiftly adopted, the need increases to maximize efficiency, revitalize existing hardware, deploy new workloads, and yet reduce operational expenditures. The SSD DC P4610 Series meets these requirements. It significantly increases server agility and utilization, and accelerates applications across a wide range of cloud workloads.

    Do More Per Server
    Intel’s 64-layer TLC 3D NAND technology enables the DC P4610 to increase available capacity up to 20% more compared to its immediate predecessor, the Intel® SSD DC P4600.1 This increased density is the key to supporting broader workloads, allowing cloud and enterprise service providers to increase users, and improve data service levels. Better QoS is ensured with an intelligent firmware algorithm that keeps host and background data reads and writes at an optimum balance.

    With the DC P4610, host applications will not only have access to higher capacity, but will also be serviced at up to 35% faster write rate, up to 35% more endurance per drive, and up to 4x reduction of service time at a QoS metric of 99.99% availability for random access workload.

    With this level of workload ability and agility, data centers can refresh existing hardware and reduce operational expenditures.

    Minimize Service Disruptions
    To ensure telemetry information without disrupting ongoing I/Os, the DC P4610 includes enhanced SMART monitoring of drive health and status, using an in-band mechanism and out-of-band access. A power loss imminent (PLI) protection scheme – with a built-in self-test – guards against data loss if system power is suddenly cut.

    Coupled with our industry-leading end-to-end data path protection scheme, PLI features enable ease of deployment into resilient data centers where data corruption from system-level glitches is not tolerated.5 The DC P4610 combines firmware enhancements with new 3D NAND features to prioritize host workload and ensure better service levels.

    Efficiently Manage at Scale
    To help data centers make the most of increased SSD capacity per server, dynamic namespace management delivers the flexibility to enable more users and scale deployment. The DC P4610 also provides security features like TCG Opal* 2.0 and built-in AES-XTS 256-bit encryption engine, required by some secure platforms.

    With the capability to manage multiple firmware versions on a drive and to support updates without a reset, the DC P4610 improves integration and increases the ease and efficiency of deploying at scale.

    Choose the DC P4610 for Data Center Storage
    With the increased density of 64-layer Intel® 3D NAND and enhanced firmware features, the DC P4610 is built to handle mixed workloads and beyond. The DC P4610 creates greater quality of service, bandwidth, and performance, leading data centers through their evolving transformation


    • Capacity
      • 1.6TB / 1600GB
      • 3.2TB / 3200GB
      • 6.4TB / 6400GB
      • 7.68TB / 7680GB
    • Performance
      • 128k Sequential Read/Write: Up to 3200/3200 MB/s
      • Random 4KB Read/Write: Up to 654K/220K IOPs
        • Reliability
          • End-to-end data protection from silent data corruption
          • Uncorrectable bit error rate < 1 sector per 1017 bits read
        • Interface
          • PCIe 3.1 x4
          • NVMe 1.2
        • Form Factor
          • U.2 23.5” x 15mm (for serviceability, hot-plug, and density)
        • Media
          • Intel 3D NAND Technology, 64-layer, TLC
        • Endurance
          • Up to 3 DWPD (JESD219 worklad)
        • Power
          • Up to 15 Watt

    • this is the final line


This drive is compatible with servers and arrays that accept 2.5” 15mm U.2 SFF PCIe NVMe drives

Intel® SSD DC P4610 Series
Model Number SSDPE2KX020T801
Product CollectionIntel SSD DC P4610 Series
Code NameProducts formerly Cliffdale Refresh
Capacity7.68TB / 7680GB
Launch DateQ2'18
Lithography Type64-Layer 3D TLC NAND
Use ConditionsServer/Enterprise
Sequential Read(up to) 3200 MB/s
Sequential Write(up to) 3200 MB/s
Random Read(100% Span) 640000 IOPS
Random Write(100% Span) 220000 IOPS
LatencyRead 77 µs
LatencyWrite 18 µs
Power - Active14.8W
Power - Idle5W
Vibration - Operating2.17GRMS
Vibration - Non-Operating3.13GRMS
Shock (Operating and Non-Operating1000G
Operating Temperature Range0°C to 55°C
Endurance Rating (Lifetime Writes)44.25 PBW / 44,250 TBW
Mean Time Between Failures (MTBF) 2 million hours
Uncorrectable Bit Error Rate (UBER)1 sector per 10^-17 bits read
Weight139g / 0.31lbs
Form Factor2.5" 15mm
InterfacePCIe NVMe 3.1 x4
Enhanced Power Loss Data ProtectionYes
Hardware EncryptionAES 256 bit
High Endurance EncryptionYes
Temperature Monitoring and LoggingYes
End-to-End Data ProtectionYes
