INTEL Part #/MPN: SSDSC2BB300G4R
DiscTech Item #: INT-SSDSC2BB300G4R-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Average Seek Time: 50 µs / 65 µs
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

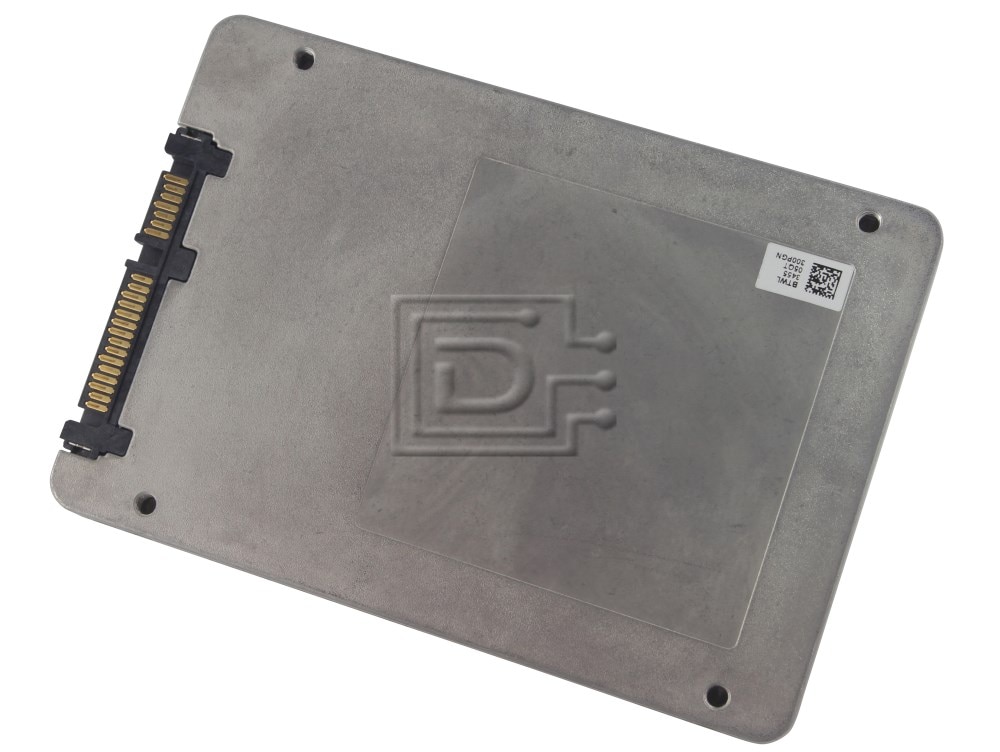

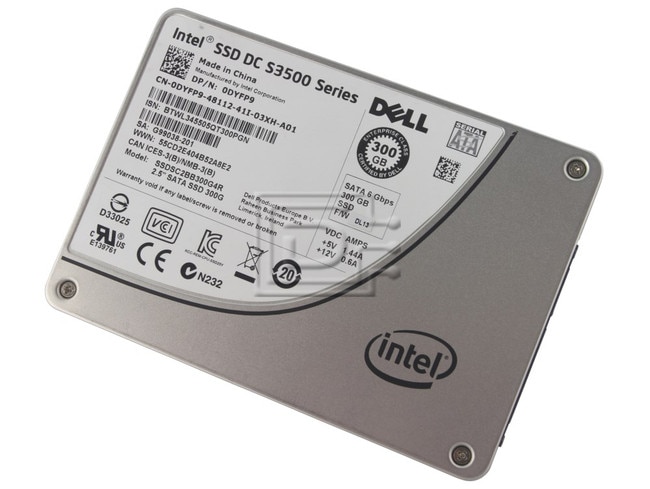

Intel DC S3500 Series SSDSC2BB300G4R / DYFP9 300GB 6Gbps 2.5in MLC SATA SSD - New Pull OEM
Intel DC S3500 Series SSDSC2BB300G4R / DYFP9, 0DYFP9 300GB 6.0Gbps 2.5"x7mm MLC SATA Solid State Drive - New Pull OEM
Alt DPNs: DYFP9, 0DYFP9
Compatibility:
This drive is compatible with servers and laptops that accept 2.5"x7mm SATA drives.
Specifications | |
---|---|
Model Number | SSDSC2BB300G4R |
Capacity | 300 GB |
Form Factor | 2.5" 7mm |
Interface | SATA 3.0 6Gb/S |
Lithography Type | 20 nm |
Sequential - Read - Write | - 500 MB/s - 315 MB/s |
Random (100% Span) - Read - Write | - 75000 IOPS - 9000 IOPS |
Latency - Read - Write | - 50 µs - 65 µs |
Power - Active - Idle | - 3.5W - 0.9W |
Vibration - Operating - Non-Operating | - 2.17 GRMS (5-700 Hz) Max - 3.13 GRMS (5-800 Hz) Max |
Shock (Operating and Non-Operating) | 1,000 G (Max) at 0.5 msec |
Weight | : 72 grams ± 2 grams |
Endurance Rating (Lifetime Writes) | 170 TBW |
Mean Time Between Failures (MTBF) | 2,000,000 Hours |
Uncorrectable Bit Error Rate (UBER) | 1 sector per 10^17 bits read |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: DYFP9 0DYFP9
Weight: 0.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
