Intel SSDSC2BB800G4R / Dell 04FR9D 800GB 2.5" SATA Enterprise SSD


DiscTech Item #: INT-SSDSC2BB800G4R-BN-OE-DEL


Enterprise Grade

Capacity: 800GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 450-500

Average Seek Time: 50 µs/65 µs

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

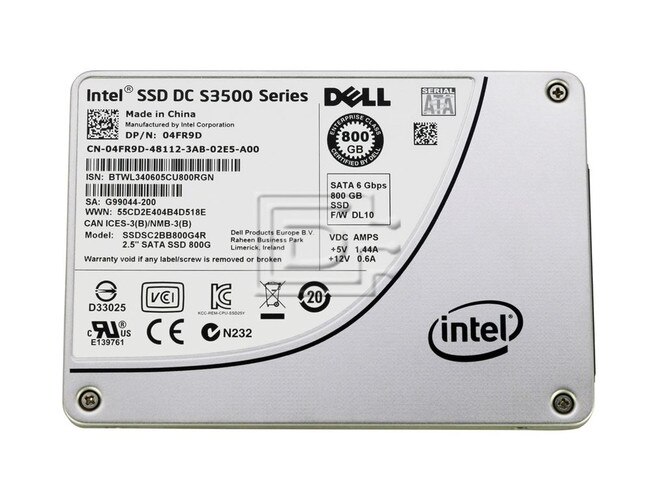

Intel DC S3500 Series SSDSC2BB800G4R / Dell 04FR9D / 4FR9D 800GB 2.5" 6Gbps SATA MLC Enterprise Class SSD - Brand New OEM

Intel DC S3500 Series SSDSC2BB800G4R / Dell 04FR9D / 4FR9D 800GB 6Gbps SATA / Serial ATA 2.5inch SFF MLC / Multi-Level Cell Enterprise Class SSD / Solid State Drive - Brand New OEM

The Intel® SSD DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50µs typical (500µs max for 99.9% of the time) along with a tight distribution of up to 75,000 input/output per second (IOPS)1 delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades.

Key features and benefits of this drive include an Intel® 3rd generation controller, industry-leading 20nm multi-level cell (MLC) NAND flash technology, full end-to-end data protection, enhanced power-loss data protection, and a broad range of capacities up to 800GB.



Windows 7Windows 8 − Windows Server 2012Windows Server 2008 Enterprise 32/64bit SP2
Windows Server 2008 R2 SP1Windows Server 2003 Enterprise R2 64bit SP2Red Hat Enterprise Linux 5.5, 5.6, 6.1, 6.3SUSE Linux Enterprise Server 10, 11 SP1
CentOS 64bit 5.7, 6.3Intel® SSD Toolbox with Intel® SSD Optimizer

DC S3500 Series Specifications
Part Number04FR9D
Form Factor2.5"
Interface Speed6Gbps
LatencyRead 50 µs
Write 45 µs
ThroughputRead 500Mb/s
Write 450Mb/s
Random 4KBReads: 75,000IOPS
Writes: 11,500IOPS

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 04FR9D 4FR9D

Weight: 0.5 lb

Warranty: 1 Year DiscTech

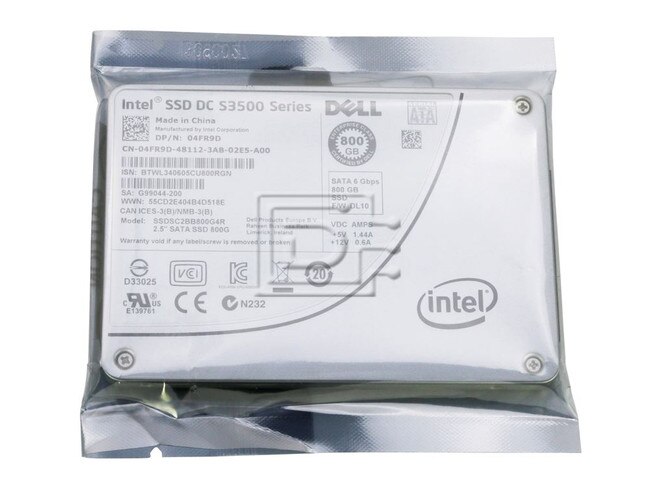

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
