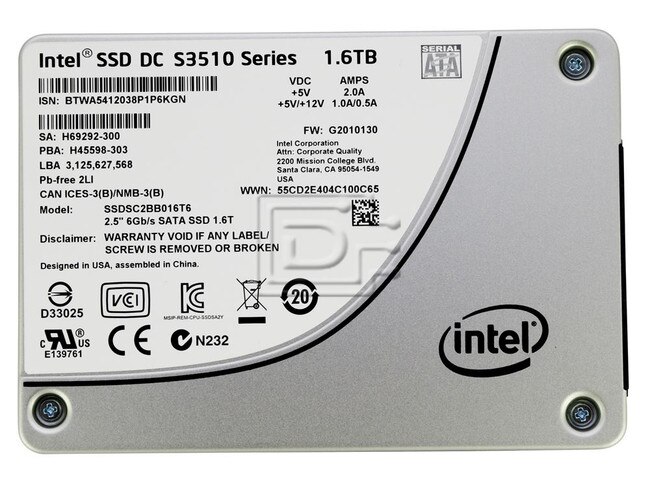

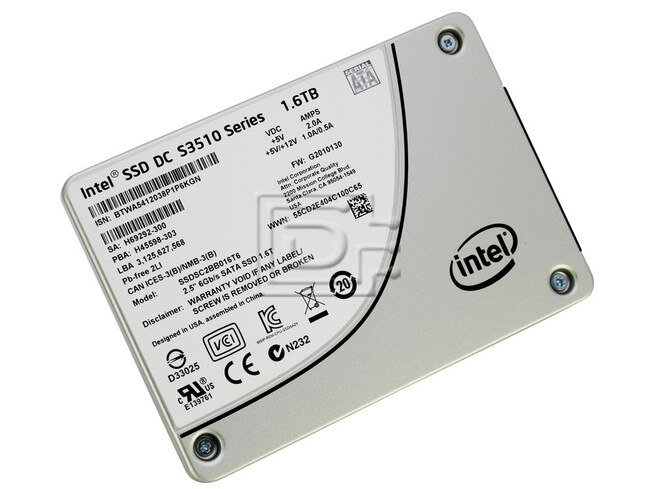

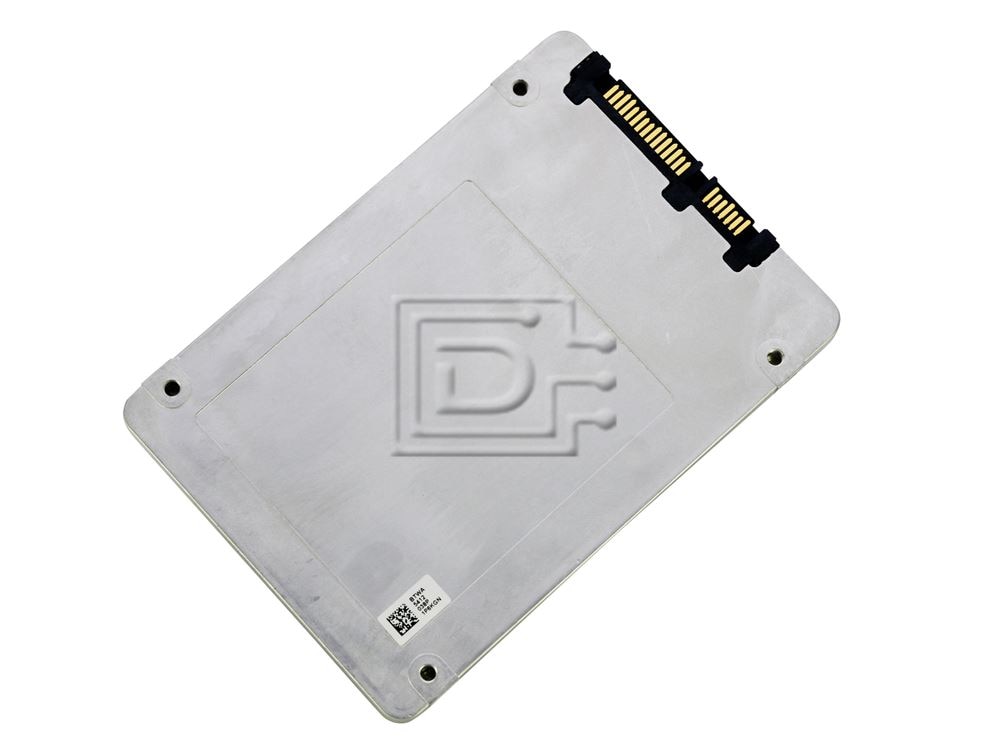

Intel S3510 SSDSC2BB016T601 1.6TB SATA RI SED SSD


DiscTech Item #: INT-SSDSC2BB016T601-BN-OE


Enterprise Grade

Capacity: 1.6TB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 500 / 430

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Enterprise Read Intensive

Intel DC S3510 Series SSDSC2BB016T601 / SSDSC2BB016T6 1.6TB 2.5" MLC SATA 6Gbps Enterprise RI SED SSD - Brand New

Intel DC S3510 Series SSDSC2BB016T601 / SSDSC2BB016T6 1.6TB / 1600GB 2.5-inch 7mm SFF MLC SATA 6Gbps Enterprise RI / Read Intensive SED / Self Encrypting Drive SSD / Solid State Drive - Brand New OEM

The Intel® Solid State Drive Data Center Family for SATA expands with the Intel® SSD DC S3510 Series. The Intel SSD DC S3510 Series offers the next generation of data center SSDs optimized for mixed read-write performance, endurance, and strong data protection.

The Intel SSD DC S3510 Series accelerates data center performance with read/write throughput speeds up to 500/430 megabytes per second (MB/s) and 4K random read/write input/output operations per second (IOPs) up to 65,000/15,200. Applications benefit from 55 μs typical latency with max read latencies2 of 500 μs 99.9 percent3 of the time. Combining performance with low typical active power (less than 6.8 watts1 4) the Intel SSD DC S3510 Series improves data center efficiency with superior quality of service and reduced energy costs.


This drive is compatible with any server or laptop that accepts 2.5"x7mm SATA drives.

Capacity1.6TB / 1600 GB
Form Factor2.5" 7mm
InterfaceSATA 3.0 6Gb/S
Lithography Type16 nm
Performance Specifications
- Read
- Write

- 500MB/s
- 430MB/s
- Read
- Write

- 65000 IOPS
- 15200 IOPS
- Read
- Write

- 55 µs
- 66 µs
- Active
- Idle

- 5.59 W
- 0.7 W
Weight94 grams +-2 grams
Vibration - Operating1000 G/0.5 msec
Vibration - Non-Operating1000 G/0.5 msec
Shock (Operating and Non-Operating)1000 G/0.5 msec
Operating Temperature Range0°C to 70°C
Endurance Rating (Lifetime Writes)880 TBW
Mean Time Between Failures (MTBF)2000000
Uncorrectable Bit Error Rate (UBER)1 sector per 10^17 bits read
Advanced Technologies
Enhanced Power Loss Data ProtectionYes
Hardware EncryptionAES 256 bit
High Endurance Technology (HET)No
Temperature Monitoring and LoggingYes
End-to-End Data ProtectionYes
Intel® Smart Response TechnologyNo
Intel® Rapid Start TechnologyNo

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SSDSC2BB016T6

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
