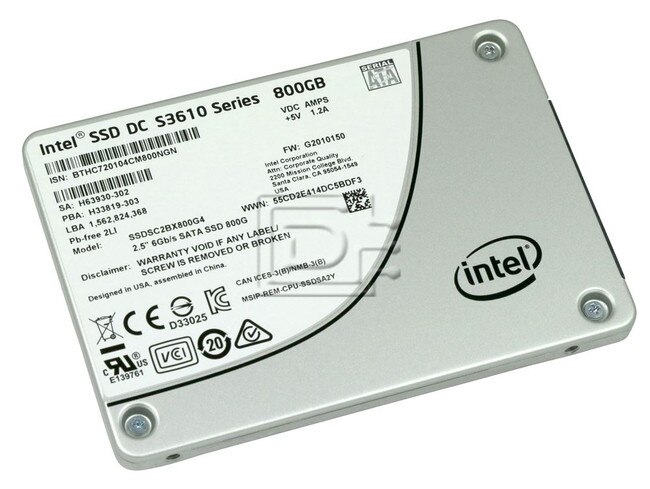

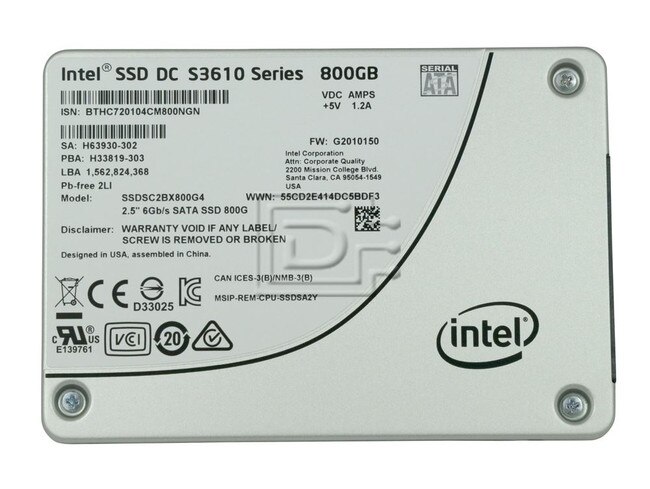

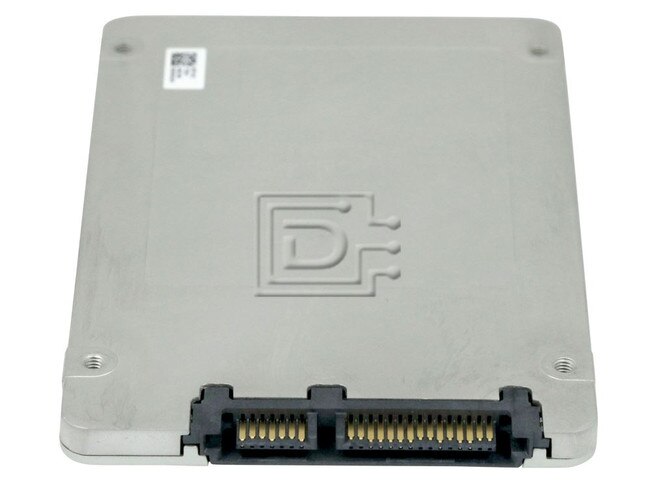

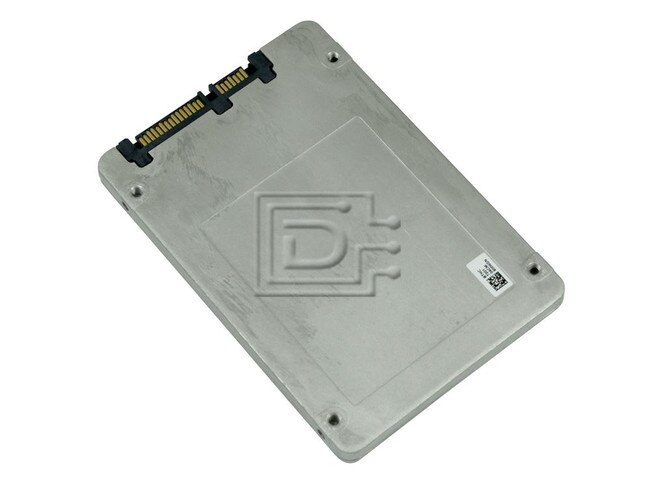

Intel DC S3610 SSDSC2BX800G401 800GB SED SATA Solid State Drive

INTEL Part #/MPN: SSDSC2BX800G401

DiscTech Item #: INT-SSDSC2BX800G401-BN-OE

$379.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$379.00

Enterprise Grade

Capacity: 800GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 550/520

Average Seek Time: 55 µs / 66 µs

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Mixed Use

Intel DC S3610 SSDSC2BX800G401 / SSDSC2BX800G4 800GB 2.5-Inch 6Gbps MLC Mixed Use SED SATA Solid State Drive - Brand New

Intel DC S3610 SSDSC2BX800G401 800GB 2.5" 6.0 Gb/s 20 nm MLC / Multi-Level Cell Mixed Use 3-DWPD / Drive Writes Per Day SED / Self Encrypting SATA / Serial ATA SSD / Solid State Drive - Brand New

The intel SSD DC S3610 Series delivers excellent performance and Quality of Service with high reliability for Serial Advanced Technology Attachment (SATA)-based computers in capacities of 100GB, 200GB, 400GB, 480GB, 800GB, 1.2TB and 1.6TB

By combining 20nm Intel NAND Flash Memory technology with SATA 6Gb/s interface support, the Intel SSD DC S3610 Series delivers Sequential Read speeds of up to 550 MB/s and Sequential Write speeds of up to 520 MB/s. The Intel SSD DC S3610 Series also delivers 4k Read speeds of up to 84,000 IOPS and Random 4k Write speeds of up to 28,000 IOPS, and Quality of Service of 500 µs for random 4KB reads measured at a queue depth of 1.

The industry-standard 2.5-inch and 1.8-inch form factor enable interchangeability with existing hard disk drives (HDDs) and native SATA HDD drop-in replacement with the enhanced performance, reliability, ruggedness, and power saving offered by an SSD.

Intel SSD DC S3610 Series offers these key features:

  • Standard Endurance Technology
  • High I/O and throughput performance
  • Consistent I/O latency
  • Enhanced power-loss data protection
  • End-to-End data protection
  • Thermal throttling
  • Temperature Sensor
  • Inrush current management
  • Low power
  • High reliability
  • Temperature monitor and logging
  • Power loss protection capacitor self-test

Compatibility:

This drive is compatible with servers and arrays that accept 2.5” 7mm SATA drives

Full LBA Range, IOMeter Queue Depth 32
  • Random 4KB Reads: Up to 84,000 IOPS
  • Random 4KB Writes: Up to 28,000 IOPS
  • Random 8KB Reads: Up to 52,000 IOPS
  • Random 8KB Writes: Up to 14,000 IOPS
    • Intel Solid State Drive DC S3610 Series
    Standard Model NumbersSSDSC2BX800G401
    Essentials
    Capacity800GB
    Components
  • Intel 20nm NAND Flash Memory
  • High Endurance Technology (HET) Multi-Level Cell (MLC)
    • Form Factor2.5-inch
    Read and Write IOPS
    Bandwidth Performance
  • Sustained Sequential Read: Up to 550 MB/s
  • Sustained Sequential Write: Up to 520 MB/s
    • Endurance 3 Drive Writes Per Day for 5 Years - 5.3PBW / 5300TBW
    Latency (average sequntial)
  • Read: 55 µs
  • Write: 66 µs
    • Quality of ServiceRead/ Write: 500 µs / 5 ms (99.9%)
    Performance ConsistencyRead/Write: Up to 90%/90% (99.9%)
    Self-Encrypting Drive (SED)AES 256-bit Encryption
    Altitude
  • Operating: -1,000 to 10,000 Ft
  • Operating: 10,000 to 15,000 ft
  • Non-operating: -1,000 to 40,000 ft
    • Product Ecological ComplianceRoHS
    Compliance
  • SATA Revision 3.0; compatible with SATA 6Gb/s, 3Gb/s and 1.5Gb/s Interface Rates
  • ATA/ATAPI Command Set - 2 (ACS-2 Rev 7); includes SCT (Smart Command Transport and device statistics log support
  • Enhanced SMART ATA feature set
  • Native Command Queuing (NCQ) command set
  • Data set management Trim command
    • Power Management
  • 5V or 5V+12V SATA Supply Rail
  • SATA interface Power Mangement
  • OS-aware hot plug/removal
  • Enhanced power-loss data protection feature
    • Power
  • Active: Up to 6.8 W (TYP)
  • Idle: 600 mW
    • Weight88 grams +/- 2 grams
    Temperature
  • Operating: 0°C to 70°C
  • Non-Operating: -55°C to 95°C
  • Temperature monitoring and logging
  • Thermal throttling
    • Shock (operating and non-operating):1,000 G/0.5 ms
    Vibration
  • Operating: 2.17 Grms (5-700 Hz)
  • Non-Operating: 3.13 Grms (5-800 Hz)
    • Reliability
  • Uncorrectable Bit Error Rate (UBER): 1 sector per 1017 bits read
  • Mean Time Between Failures (MTBF): 2 million hours
  • End-to-End data protection
    • Certifications and Declarations
  • UL
  • CE
  • C-Tick
  • BSMI
  • KCC
  • Microsoft WHCK
  • VCCI
  • SATA-IO
    • Compatibility
  • Windows 7, Windows 8, and Windows 8.1
  • Windows server 2012 R2
  • Windows Server 2012
  • Windows Server 2008 Enterprise 32/64bip SP2
  • Windows Server 2008 R2 SP1
  • Windows Server 2003 Enterprise R2 64bit SP2
  • VMWare 5.1, 5.5
  • Read Hat Enterprise Linus 5.5, 5.6, 6.1, 6.3, 7.0
  • SUSE Linux Enterprise Server 10, 11, SP1
  • CentOS 64bit .5.7, 6.3
  • Intel SSD Toolbox with Intel SSD Optimizer
    • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: SSDSC2BX800G4

    Weight: 1 lb

    Warranty: 1 Year DiscTech

    Brand New

    Condition Levels Explained

    The product is brand new.

    1 Year DiscTech Warranty

    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty
