INTEL Part #/MPN: E3-1270
DiscTech Item #: INT-E3-1270-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Socket FCLGA1155
Electrical Interface: Clock 3.4 GHz
On-Board Cache: 8MB

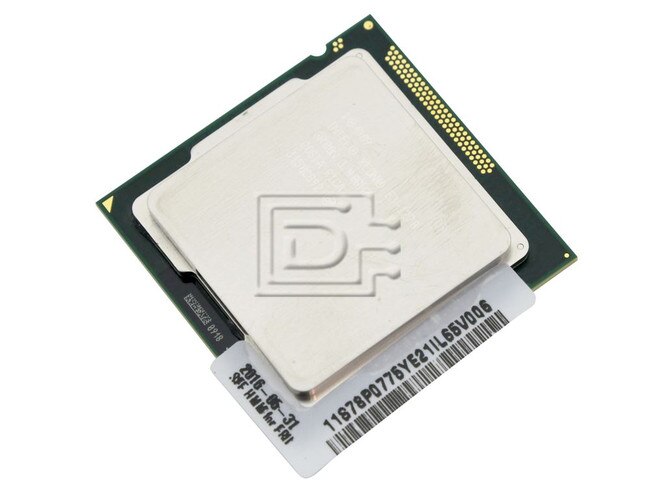

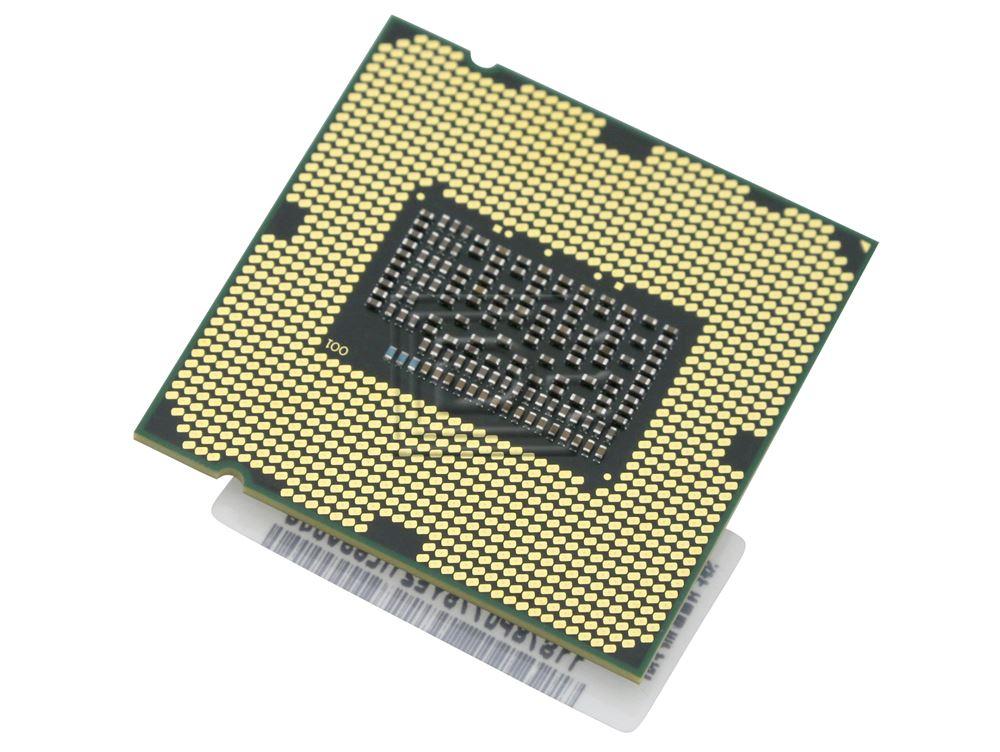

Intel E3-1270 Xeon Quad Core 8M SmartCache 3.40 Ghz Processor - Socket LGA1155 - Brand New
Intel E3-1270 Xeon Quad Core / 4 Core 8M SmartCache 3.40 Ghz Processor - Socket LGA1155 - Brand New
Supported Socket: LGA1155
Alt MPN: 69Y5149, CM8062307262403
Data Center Graphics with Intel® Xeon® Processor E3 Family
Discover the new Intel® Xeon® processor E3 family
Elevating graphics performance in data centers - Data center–based graphics take a huge step forward with the new Intel® Xeon® processor E3-1200 v3 product family. Featuring new Intel® processor microarchitecture (formerly Haswell), these powerful processors transform server capabilities to create vast new possibilities for your data center. Now you can deliver rich visuals and consistently smooth user experiences, while also streamlining your data center.
Optimize graphics in the cloud - New processors from the Intel Xeon processor E3 family are built to support an extended range of cloud-based graphics demands. From virtual hosted desktops to cloud gaming to workstations in the cloud, you can deliver cutting-edge performance per watt and more efficient rendering in the cloud. That’s great news for applications, such as outsourced encoding at scale and device and cloud partitioning.
Stream media to any connected device - Take care of a diverse range of media needs right from your data center. Integrated processor capabilities make smooth work of transcoding various formats for content on demand, user-generated media, live broadcasting, and video conferencing. And by eliminating a hardware component—a discrete graphics card—you’ll capture significant performance efficiencies per watt and benefit from the greater density of video streams.
Run complex video analytics - Go beyond video processing to measure, analyze, and interpret streaming content. For companies investing in big data analytics, new processors deliver the computing power to capture valuable metrics, gain insights, and perform data-intensive tasks like video search indexing, digital surveillance, and automated ads that react to scene changes.
Compatibility:
| BD82C216 PCH | BD82C206 PCH | BD82C204 PCH | BD82C202 PCH |
| Server System R1304BTLSFAN | Server System R1304BTLSFANR | Server System R1304BTLSHBN | Server System R1304BTLSHBNR |
| Server System R1304BTSSFANR | Server System P4304BTLSFCNR | Server System P4304BTLSHCN | Server System P4304BTLSHCNR |
| Server System P4304BTSSFCN | Server System P4304BTSSFCNR | Server Board S1200BTL | Server Board S1200BTLR |
| Server Board S1200BTLRM | Server Board S1200BTS | Server Board S1200BTSR | Server Board S1200KP/td> |
| Server Board S1200KPR |
| ESSENTIALS | |
|---|---|
| Product Collection | Intel® Xeon® Processor E3 Family |
| Code Name | Products formerly Sandy Bridge |
| Vertical Segment | Server |
| Processor Number | E3-1270 |
| Lithography | 32 nm |
| PERFORMANCE | |
| Number of Cores | 4 |
| Number of Threads | 8 |
| Processor Base Frequency | 3.40 GHz |
| Max Turbo Frequency | 3.80 GHz |
| Cache | 8 MB SmartCache |
| Bus Speed | 5 GT/s DMI |
| TDP | 80 W |
| SUPPLEMENTAL INFORMATION | |
| Embedded Options Available | No |
| MEMORY SPECIFICATIONS | |
| Max Memory Size (dependent on memory type) | 32 GB |
| Memory Types | DDR3 1066/1333 |
| Max Number of Memory Channels | 2 |
| Max Memory Bandwidth | 21 GB/s |
| ECC Memory Supported | Yes |
| PROCESSOR GRAPHICS | |
| Intel Quick Sync Video | No |
| Intel InTru 3D Technology | No |
| Intel Flexible Display Interface (Intel FDI) | No |
| Intel Clear Video HD Technology | No |
| EXPANSION OPTIONS | |
| PCI Express Revision | 2.0 |
| Max Number of PCI Express Lanes | 20 |
| PACKAGE SPECIFICATIONS | |
| Sockets Supported | LGA1155 |
| Max CPU Configuration | 1 |
| TCase | 69.1°C |
| package Size | 37.5mm x 37.5mm |
| ADVANCED TECHNOLOGIES | |
| Intel Turbo Boost Technologies | 2.0 |
| Intel vPro Technology | Yes |
| Intel Hyper-Threading Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Instruction Set | 64-bit |
| Intel Set Extensions | Intel SSE4.1 Intel SSE4.2 Intel AVX |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Demand Based Switching | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Fast Memory Access | Yes |
| Intel® Flex Memory Access | Yes |
| Intel Identity Protection Technology | Yes |
| INTEL DATA PROTECTION TECHNOLOGY | |
| Intel AES New Instructions | Yes |
| Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 69Y5149 CM8062307262403
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
