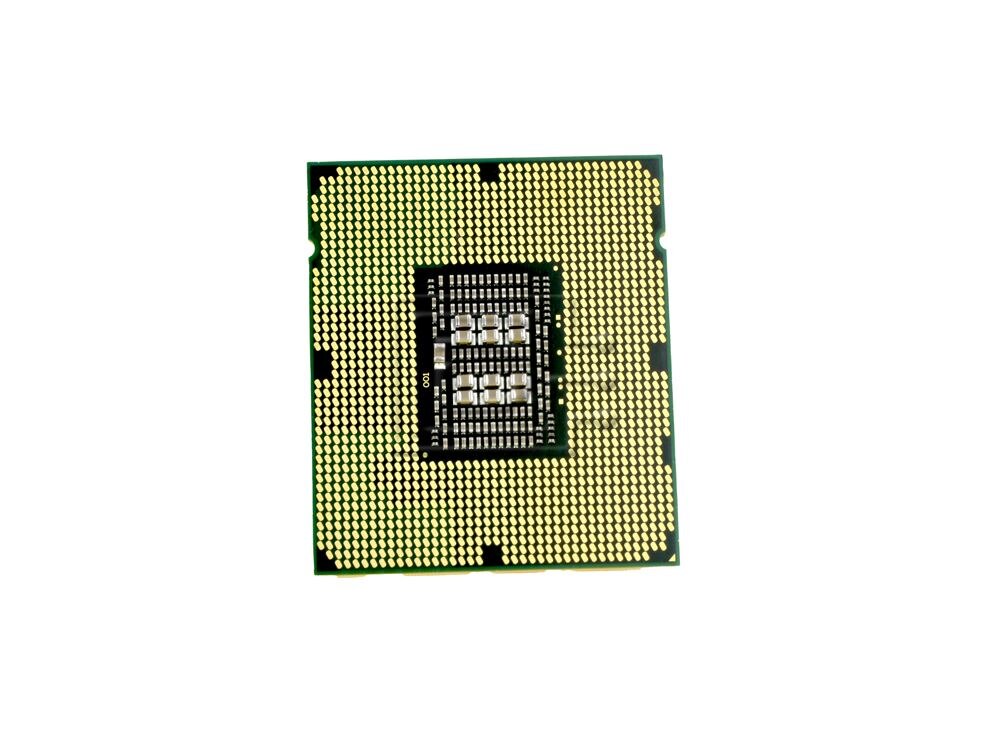

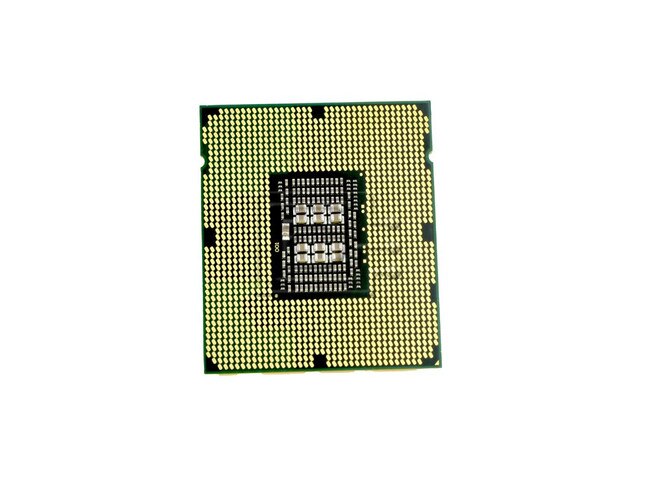

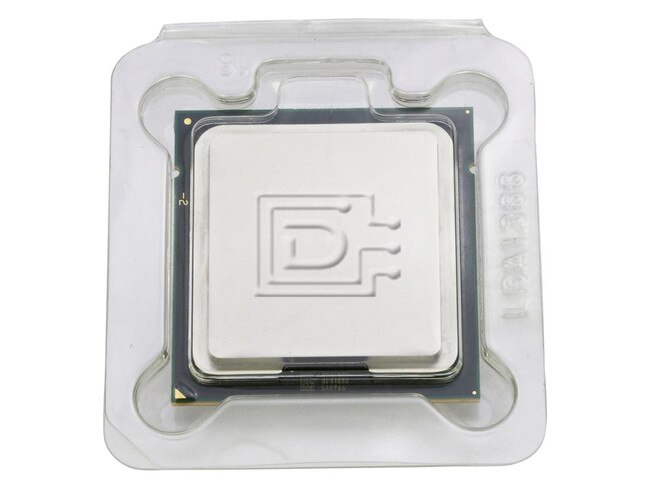

Intel E5-2420 Xeon 6 Core 15MB SmartCache 1.90 Ghz LGA 1356 15 MB L3 Processor

INTEL Part #/MPN: E5-2420

DiscTech Item #: INT-E5-2420-NP-OE


Interface Types: Socket FCLGA1356

Electrical Interface: Clock 1.8 GHz

On-Board Cache: 10MB

Intel E5-2420 Xeon 6 Core 15MB SmartCache 1.90 Ghz LGA 1356 15 MB L3 Processor - New Pull

Intel E5-2407 v2 Xeon 4 Core 10MB SmartCache 2.40 Ghz LGA 1356 10 MB L3 Processor - New Pull

Supported Socket: FCLGA1356

Alt MPN: 319-0185, V0DXP, 0V0DXP

The Intel® Xeon® processor E5-2400 product family is the next generation of 64- bit, multi-core enterprise processors built on 22-nanometer process technology. Throughout this document, the Intel® Xeon® processor E5-2400  product family may be referred to as simply the processor. Based on the low-power/high performance processor microarchitecture, the processor is designed for a two-chip platform as opposed to the traditional three-chip platforms (processor, MCH, and ICH). The twochip platform consists of a processor and the Platform Controller Hub (PCH) and enables higher performance, easier validation, and improved x-y footprint.

The Intel® Xeon® processor E5-2400 product family is designed for server, embedded and storage applications.

This processor features one Intel® QuickPath Interconnect point-to-point link capable of up to 8.0 GT/s, up to 24 lanes of PCI Express 3.0 links capable of 8.0 GT/s, and 4 lanes of DMI2/PCI Express* 2.0 interface with a peak transfer rate of 5.0 GT/s. The processor supports up to 46 bits of physical address space and 48-bit of virtual address space.

Included in this family of processors is an integrated memory controller (IMC) and integrated I/O (IIO) (such as PCI Express and DMI2) on a single silicon die. This single die solution is known as a monolithic processor.


Server System R1304BB4DCServer System R1208BB4DCServer System R1208BB4GS9Server System R1304BB4GS9
Server System R1304SP2SFBNServer System R1304SP2SHBNServer System R1304SP4SHOCServer System R2000BB4GS9
Server System R2208BB4GCServer System R2208BB4GS9Server System R2216BB4GCServer System R2224BB4GCSAS
Server System R2308BB4GCServer System R2312BB4GS9td>Server System R2308SC2SHDRServer System R2308SC2SHFN
Server System R2312SC2SHGRServer System P4304SC2SHDRServer System P4308SC2MHGCServer Board S1400FP2
Server Board S1400FP4Server Board S1400SP2Server Board S1400SP4Server Board S2400BB4
Server Board S2400EP2Server Board S2400EP4Server Board S2400LPServer Board S2400SC2

Product CollectionIntel® Xeon® Processor E5 v2 Family
Code NameProducts formerly Ivy Bridge EN
Vertical SegmentEmbedded
Processor NumberE5-2407V2
Lithography22 nm
Number of Cores6
Number of Threads12
Processor Base Frequency1.90 GHz
Max Turbo Frequency2.40 GHz
Cache15 MB SmartCache
Bus Speed7.2 GT/s QPI
Number of QPI Links1
VID Voltage Range0.65-1.30V
Embedded Options AvailableNo
Max Memory Size (dependent on memory type)384 GB
Memory TypesDDR3 800/1066/1333/1600
Max Number of Memory Channels3
Max Memory Bandwidth38.4 GB/s
Physical Address Extensions32-bit
ECC Memory SupportedYes
Scalability2S Only
PCI Express Revision3.0
PCI Express Configurationsx4, x8, x16
Max Number of PCI Express Lanes24
Sockets SupportedFCLGA1356
Max CPU Configuration2
Package Size45mm x 42.5mm
Intel Turbo Boost Technologies1.0
Intel Hyper-Threading TechnologyYes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® TSX-NINo
Intel 64Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel AVX
Enhanced Intel SpeedStep TechnologyYes
Intel® Demand Based SwitchingYes
Thermal Monitoring TechnologiesYes
Intel® Flex Memory AccessNo
Intel Identity Protection TechnologyNo
Intel AES New InstructionsYes
Secure KeyYes
Intel® OS GuardYes
Trusted Execution TechnologyYes
Execute Disable BitYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 319-0185 V0DXP 0V0DXP

Weight: 1 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
