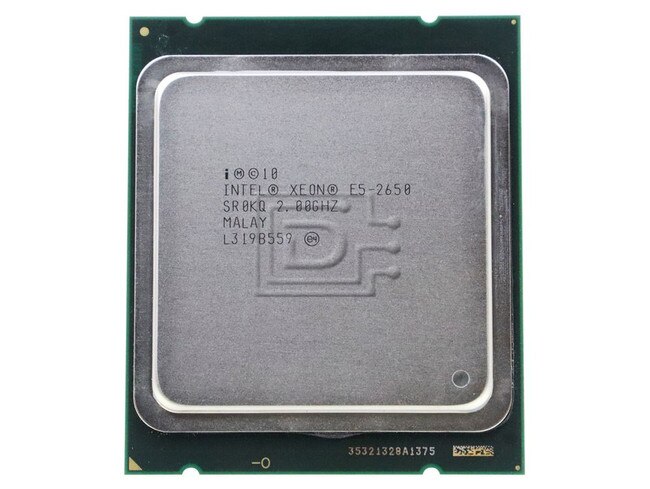

Intel E5-2650 V1 8 Core 20MB 2Ghz Processor

INTEL Part #/MPN: E5-2650

DiscTech Item #: INT-E5-2650-BN-OE


Interface Types: Socket FCLGA1356

Electrical Interface: Clock 2 GHz

On-Board Cache: 20MB

Intel E5-2650 V1 Xeon 8 Core 20MB SmartCache 2.0Ghz Processor - Socket FCLGA2011 - Brand New

Intel E5-2650 V1 Xeon 8 Core 20MB SmartCache 2.0Ghz Processor - Socket FCLGA2011 - Brand New

Supported Socket: FCLGA2011


The Intel® Xeon® processor E5-2600 v2 product family is the next generation of 64- bit, multi-core enterprise processors built on 22-nanometer process technology. Throughout this document, the Intel® Xeon® processor E5-2600 v2 product family may be referred to as simply the processor. Based on the low-power/high performance processor microarchitecture, the processor is designed for a two-chip platform as opposed to the traditional three-chip platforms (processor, MCH, and ICH). The twochip platform consists of a processor and the Platform Controller Hub (PCH) and enables higher performance, easier validation, and improved x-y footprint.

The Intel® Xeon® processor E5-2600 v2 product family is designed for server, embedded and storage applications.

This processor features one Intel® QuickPath Interconnect point-to-point link capable of up to 8.0 GT/s, up to 24 lanes of PCI Express 3.0 links capable of 8.0 GT/s, and 4 lanes of DMI2/PCI Express* 2.0 interface with a peak transfer rate of 5.0 GT/s. The processor supports up to 46 bits of physical address space and 48-bit of virtual address space.

Included in this family of processors is an integrated memory controller (IMC) and integrated I/O (IIO) (such as PCI Express and DMI2) on a single silicon die. This single die solution is known as a monolithic processor.


Server System R1304BB4DCServer System R1208BB4DCServer System R1208BB4GS9Server System R1304BB4GS9
Server System R1304SP2SFBNServer System R1304SP2SHBNServer System R1304SP4SHOCServer System R2000BB4GS9
Server System R2208BB4GCServer System R2208BB4GS9Server System R2216BB4GCServer System R2224BB4GCSAS
Server System R2308BB4GCServer System R2312BB4GS9td>Server System R2308SC2SHDRServer System R2308SC2SHFN
Server System R2312SC2SHGRServer System P4304SC2SHDRServer System P4308SC2MHGCServer Board S1400FP2
Server Board S1400FP4Server Board S1400SP2Server Board S1400SP4Server Board S2400BB4
Server Board S2400EP2Server Board S2400EP4Server Board S2400LPServer Board S2400SC2

Product CollectionIntel® Xeon® Processor E5 Family
Code NameProducts formerly Sandy Bridge EP
Vertical SegmentServer
Processor NumberE5-2650
Lithography32 nm
Number of Cores8
Number of Threads16
Processor Base Frequency2.00 GHz
Max Turbo Frequency2.80 GHz
Cache20 MB SmartCache
Bus Speed8 GT/s QPI
Number of QPI Links2
VID Voltage Range0.60-1.35V
Embedded Options AvailableNo
Max Memory Size (dependent on memory type)384 GB
Memory TypesDDR3 800/1066/1333/1600
Max Number of Memory Channels3
Max Memory Bandwidth51.2 GB/s
Physical Address Extensions46-bit
ECC Memory SupportedYes
Scalability2S Only
PCI Express Revision3.0
PCI Express Configurationsx4, x8, x16
Max Number of PCI Express Lanes24
Sockets SupportedFCLGA2011
Max CPU Configuration2
Package Size52.5mm x 45mm
Intel Turbo Boost Technologies2.0
Intel Hyper-Threading TechnologyYes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® TSX-NINo
Intel 64Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel AVX
Enhanced Intel SpeedStep TechnologyYes
Intel® Demand Based SwitchingYes
Thermal Monitoring TechnologiesYes
Intel® Flex Memory AccessNo
Intel Identity Protection TechnologyNo
Intel AES New InstructionsYes
Secure KeyYes
Intel® OS GuardYes
Trusted Execution TechnologyYes
Execute Disable BitYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SR0KQ BX80621E52650

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New
