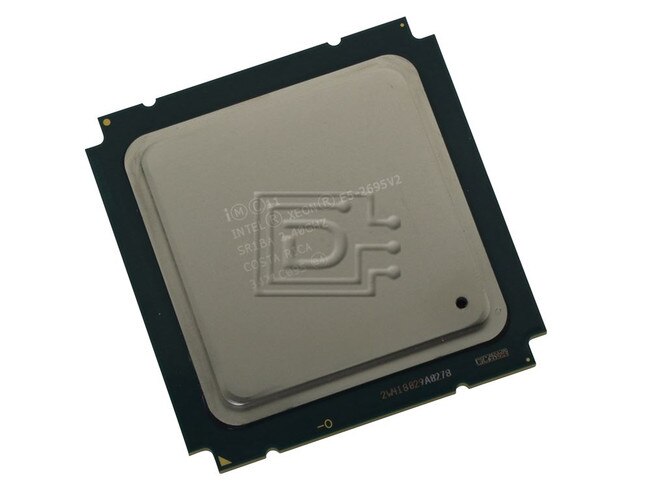

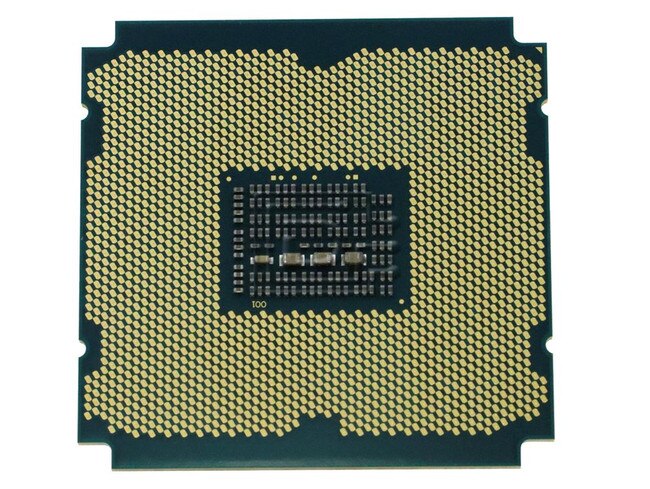

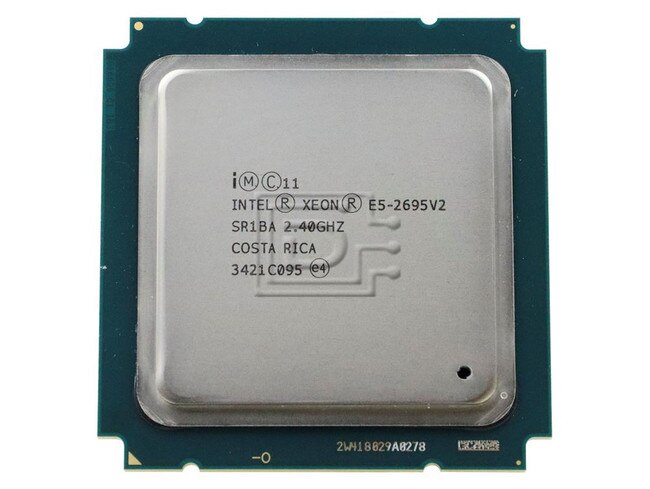

Intel E5-2695 V2 / SR1BA 2.4ghz Xeon Processor

INTEL Part #/MPN: E5-2695V2

DiscTech Item #: INT-E5-2695V2-NP-OE


Interface Types: Socket FCLGA2011

Electrical Interface: Clock 2.4 GHz

On-Board Cache: 32MB

Intel Xeon E5-2695 v2 / SR1BA 12-core 2.40 Ghz Turbo 3.20 Ghz 30 MB SmartCache Processor Ivy Bridge EP CPU only - New Pull

Intel Xeon E5-2695 v2 / SR1BA 12-core 2.40 Ghz Turbo 3.20 Ghz 30 MB SmartCache Processor Ivy Bridge EP CPU only

Supported Socket: FCLGA2011

Building New Server Apps for the Intel® Xeon® Processor Family

Building New Server Apps for the Intel® Xeon® Processor Family

Executive Summary

Bottlenecks. We encounter them all the time—on freeway exits, at the corner coffee shop—and on server racks. Whether you are writing applications for a database server, a Web server, or Web services, end-users’ perception of your feature-rich application is affected by the performance of the server itself. The Intel® Xeon™ processor family features two new processor hardware innovations that help remove processing bottlenecks, increase processing throughput, and provide a significant positive impact on server application performance:

• Intel® NetBurst™ microarchitecture

• Hyper-Threading technology

The Intel NetBurst microarchitecture significantly enhances P61 microarchitecture as well as introduces new innovative performance related features, such as Execution Trace Cache, Rapid Execution Engine, Hyper-Pipelined technology, and Streaming SIMD Extensions 2. It also triples the throughput on the system bus, allowing the Intel Xeon processor family to deliver industry-leading performance today and over the next several years. But typically (even with highly optimized code), not all of the available execution resources are used during each clock cycle, due to dependencies, memory latencies and data bottlenecks.

Compatibility: Any Servers with FCLGA2011 Socket.

Processor NumberE5-2695V2
Intel Smart Cache32 MB
Max Memory Size768 MB
Instruction Set64-bit
# of Cores12
# of Threads24
Processor Base Frequency2.40 GHZ

Max Turbo Frequency3.20GHz
TDP115 W

Sockets SupportedFCLGA2011
Intel Turbo Boost Technologies2.0
Intel vPro TechnologyYes
Intel Hyper-Threading TechnologyYes/td>
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel 64Yes
Idle StatesYes
Intel Demand Based SwitchingYes
Thermal Monitoring TechnologiesYes
Intel Fast Memory AccessYes
Intel Flex AccessYes
Intel Identity Protection TechnologyYes
Trusted Execution TechnologyYes
Execute Disable BitYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: BX80635E52695V2 SR1BA

Weight: 0.5 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
