Intel E810-XXVDA4T Ethernet Network Adapter Quad Port PCIe 4.0 x16 - 10/25 Gigabit SFP28 x 4 Dell WK9RR

INTEL E810-XXVDA4T WK9RR 0WK9RR PCIe Express 10/25GbE Intel Server Adapter Image 1 imageINTEL E810-XXVDA4T WK9RR 0WK9RR PCIe Express 10/25GbE Intel Server Adapter Image 2 imageINTEL E810-XXVDA4T WK9RR 0WK9RR PCIe Express 10/25GbE Intel Server Adapter Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$899.00

Interface Types:PCIe
Electrical Interface:Ethernet 10Gigabit - 10Gbps

Description

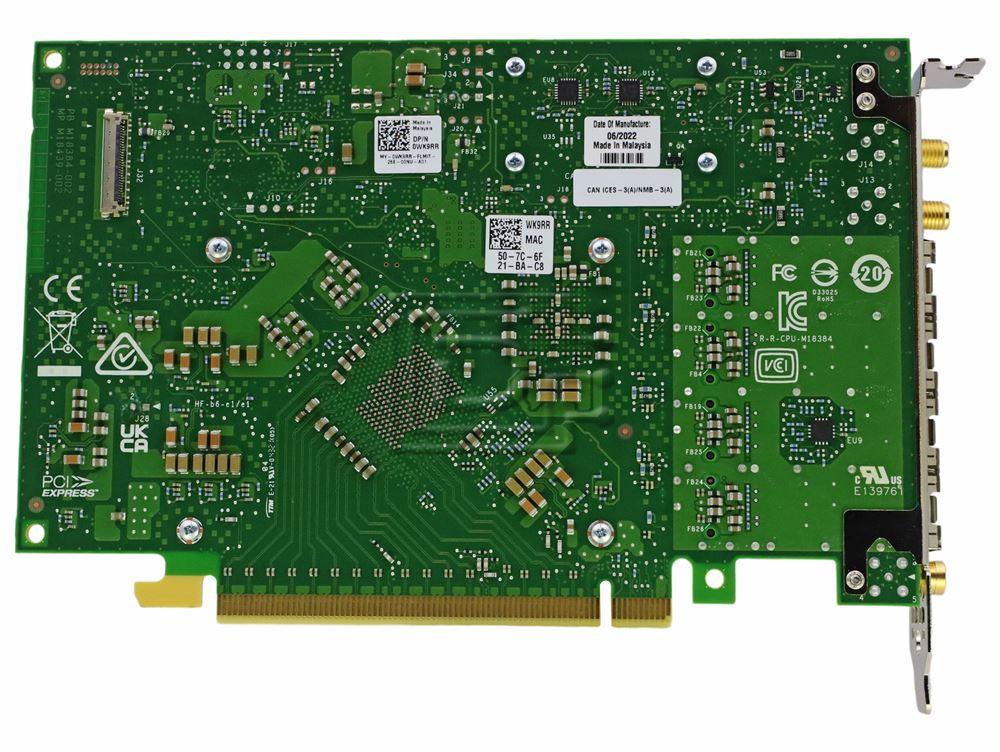

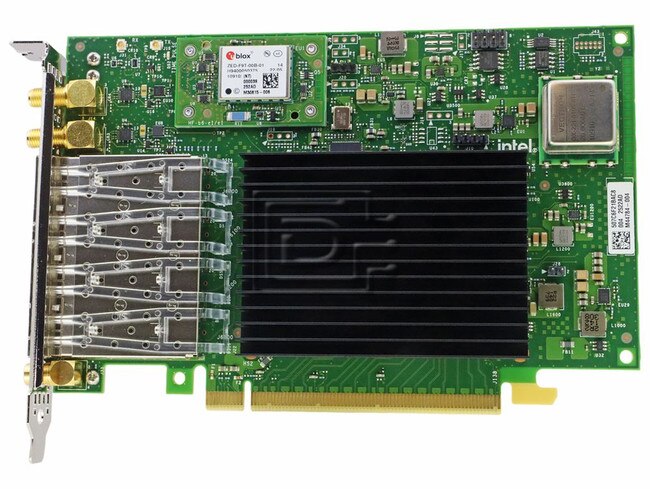

Intel E810-XXVDA4T Ethernet Network Adapter Quad Port PCIe 4.0 x16 - 10/25 Gigabit SFP28 x 4 Dell WK9RR - Brand New

Intel E810-XXVDA4T Ethernet Network Adapter Quad Port PCIe 4.0 x16 - 10/25 Gigabit SFP28 x 4 Dell WK9RR - Brand New

Increasing growth in 5G RAN and edge deployments is driving demand for high-precision timing synchronization across the network. Meet these challenging requirements head-on with a standards-based PCIe adapter that provides greater flexibility at a lower price point than single-purpose timing appliances. Most 5G RAN deployments use 1588 PTP, SyncE, or both to ensure required timing synchronization. Both of these synchronization methods are supported by the E810-XXVDA4T, while additional hardware enhancements ensure reliability and accuracy, and provide greater flexibility and simplicity for timing synchronization deployments..

  • Quad Port SFP28 for 25/10GbE
  • Onboard high-precision oscillator
  • IEEE 1588 Precision Time Protocol (PTP)
  • Optional GNSS mezzanine
  • Synchronous Ethernet (SyncE)
  • SMA, SMB, and U.FL connectors

Compatibility

This adapter is compatible with any server having a vacant PCIe x8 slot.  Low Profile Bracket including...

This product is compatible with the following systems:

  • PowerEdge R630
  • PowerEdge R730
  • PowerEdge C4130
  • PowerEdge FC430
  • PowerEdge FC830
  • PowerEdge R930
  • PowerEdge R330
  • PowerEdge R730xd XL
  • PowerEdge C6320
  • Poweredge R830
  • PowerEdge R640
  • PowerEdge R740
  • PowerEdge R740XD
  • PowerEdge C6420
  • PowerEdge R440
  • PowerEdge FC640
  • PowerEdge R540
  • PowerEdge C4140
  • PowerEdge R6415
  • PowerEdge R7415
  • PowerEdge R7425
  • PowerEdge R840
  • PowerEdge R940xa
  • PowerEdge R340
  • PowerEdge R740xd2
  • PowerEdge XR2
  • PowerVault NX440
  • PowerEdge R6515
  • PowerEdge R6525
  • PowerEdge R7515
  • PowerEdge C6525

Specifications

Adapter FeaturesDescription
Data Rate Supported25/10/1GbE per port
Bus Type/Bus WidthPCIe 4.0 x16
Hardware CertificationsBSMI, CE, CMIM, FCC, ICES, KCC, RCM, UKCA, cURus, and VCCI
BMSI RoHS and RoHS-compliantProduct is compliant with Taiwan Bureau of Standards, Metrology and Inspection (BMSI), and EU RoHS Directive 2 2011/65/EU (Directive 2011/65/EU) and its amendments (e.g. 2015/863/EU)
Connectivity

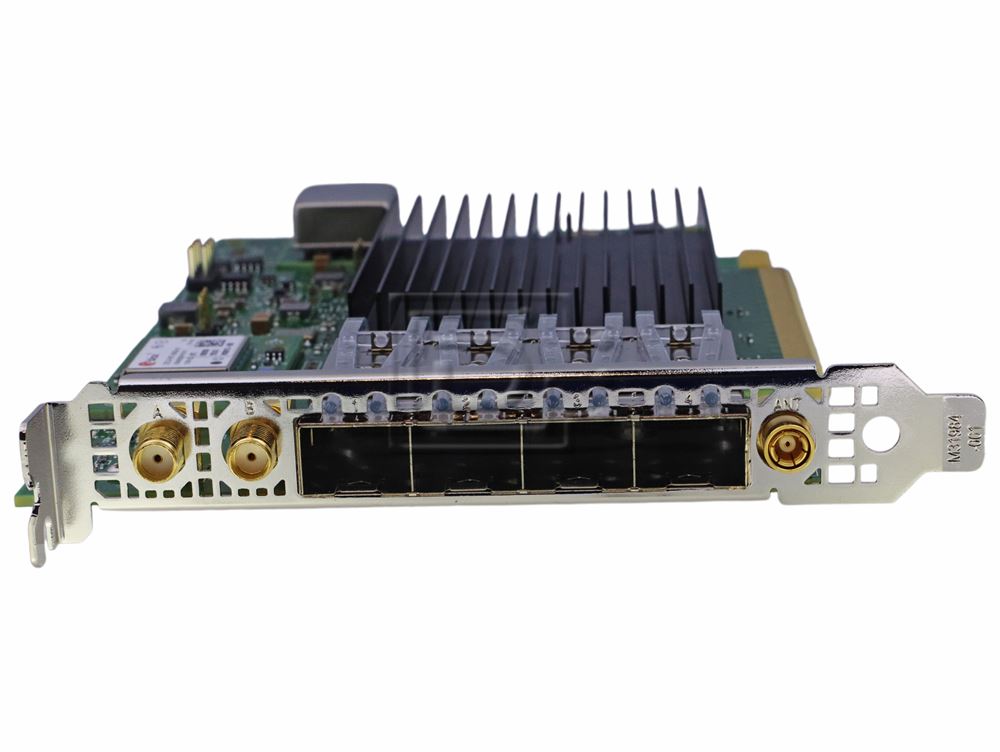

  • Four SFP28 ports
  • SubMiniature version A (SMA) connectors: Two coaxial connectors, each capable of being configured as a 1PPS (one pulse per second) input or output
  • SubMiniature version B (SMB) connector: Coaxial connector for connecting to an external active GNSS antenna
ControllerIntel® Ethernet Controller E810-CAM1
BracketFull height
Dimension6.58 in x 4.37 in (167 mm x 111 mm) (Full-height, half-length)
Click here to view the manufacturer's item description/brochure

Alternate MPNs: WK9RR 0WK9RR

Weight: 0.5 lb

Warranty: 1 Year DiscTech
