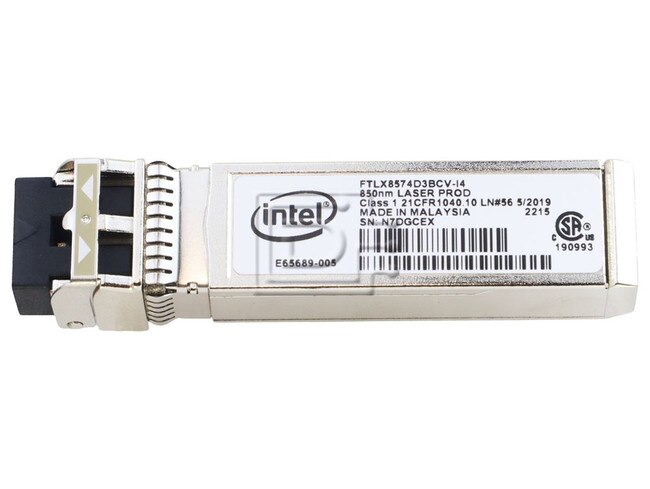

Intel FTLX8574D3BCV-I4 10Gb/s 850nm Multimode Datacom SFP+ Transceiver Dell XYD50
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:138Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | SFP |
| Electrical Interface: | Ethernet 10Gigabit - 10Gbps |
| Voltage: | 3.3V |
Description
Intel FTLX8574D3BCV-I4 10Gb/s 850nm Multimode Datacom SFP+ Transceiver Dell XYD50 - Brand New
Intel FTLX8574D3BCV-I4 10Gb/s 850nm Multimode Datacom SFP+ Transceiver Dell XYD50 - Brand New
FTLX8574D3BCV 1G/10G Dual-Rate SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-84311 , IEEE 802.3-2012 10GBASE-SR/SW2 and 1000BASE-SX3 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF84724 . The FTLX8574D3BCV is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperability with an SFP+ limiting module. This product is for applications specifically designed for 10G SFP+ ports and 1G/10G SFP+ ports and not native 1G SFP ports. The optical transceiver is compliant per the RoHS Directive 2011/65/EU5 . See Finisar Application Note AN-20386 for more details.
Product Features
- Hot-pluggable SFP+ footprint
- Supports rate selectable 1.25 Gb/s or 9.95 to 10.3 Gb/s bit rates
- Power dissipation < 1W
- RoHS-6 compliant (lead-free)
- Commercial temperature range -5°C to 70°C
- Single 3.3V power supply
- Maximum link length of 400m on OM4 MMF
- Uncooled 850nm VCSEL laser
- Receiver limiting electrical interface

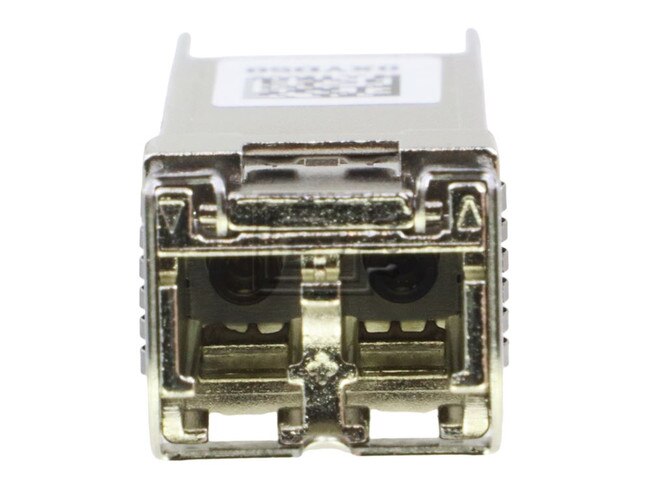

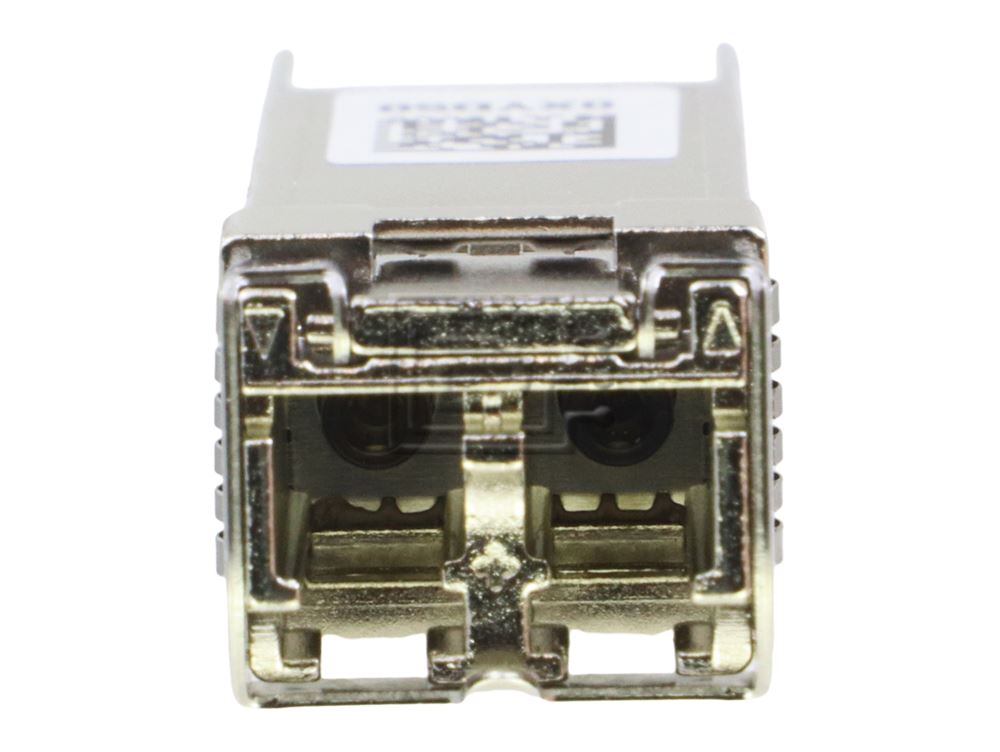

- Duplex LC connector
- Built-in digital diagnostic functions
Applications
- 1000BASE-SX 1G Ethernet
- 10GBASE-SR/SW 10G Ethernet
Specifications
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| Maximum Supply Voltage | Vcc | -0.5 | 4.0 | V |
| Storage Temperature | TS | -40 | 85 | °C |
| Operating Case Temperature | Tc | 0 | 70 | °C |
| Operating Humidity | RH | 5 | 85 | % |
| Receiver Power | RMAX | -1 | dBm | |
| Maximum Bitrate | Bmax | 11.3 | Gbps |
Electrical Characteristics (TOP=25°C, Vcc=3.3Volts)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
|---|---|---|---|---|---|---|
| Power Supply Voltage | Vcc | 3.15 | 3.30 | 3.43 | V | |
| Power Supply Current | Icc | 303 | mA | |||
| Power Consumption | PDISS | 1 | W | |||
| Transmitter Differential data input swing | Vin,pp | 120 | 850 | mV | ||
| Input differential impedance | Zin | 80 | 120 | Ω | ||
| Receiver Differential data output swing | Vout, pp | 300 | 850 | mV | ||
| Output differential impedance | Zin | 80 | 120 | Ω |
Optical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
|---|---|---|---|---|---|---|
| Transmitter Optical Power (average) | PAVE | -7.3 | -1.2 | dBm | 1 | |
| Optical Modulation amplitude (OMA) | POMA | -1.5 | dBm | 2 | ||
| Optical Extinction Ratio | ER | 3 | dB | |||
| Optical Wavelength | Tλ | 840 | 860 | nm | ||
| Insertion loss | IL | 2 | ||||
| Receiver Sensitivity (average) | RAVE | -9.9 | dBm | 3 | ||
| Receiver Sensitivity (OMA) | ROMA | -11.1 | 2 | |||
| Receiver overload | Pmax | -1 | dBm | 4 | ||
| Receiver wavelength | Rλ | 840 | 860 | nm |
ROHS Compliant

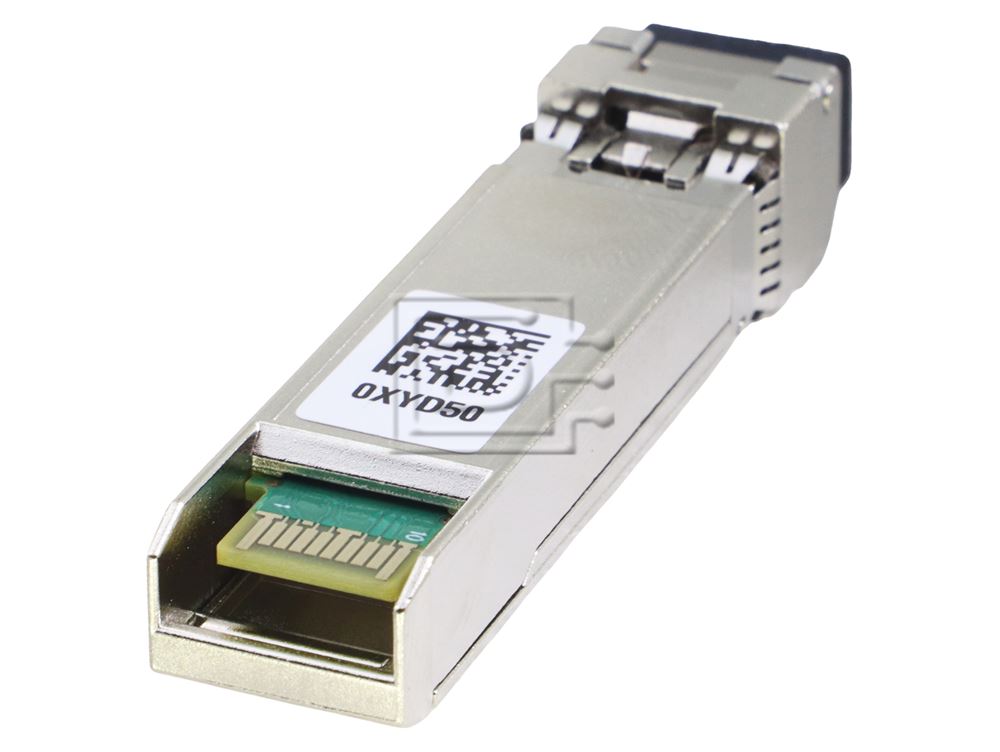

Alternate MPNs: 0XYD50 XYD50 AFBR-710DMZ-IN1
Weight: 0.5 lb
Warranty: 1 Year DiscTech
