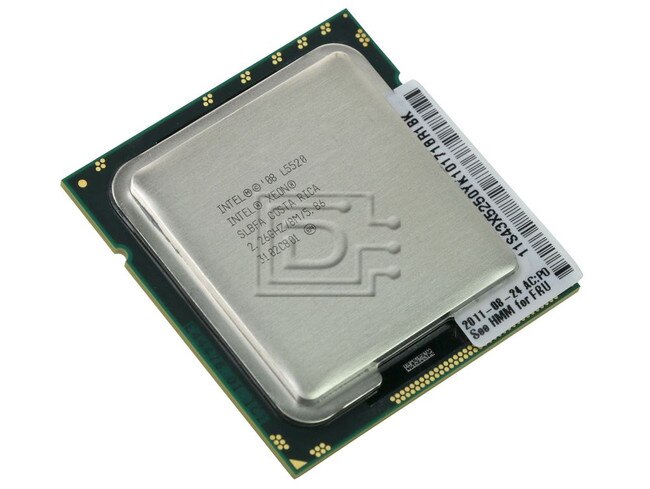

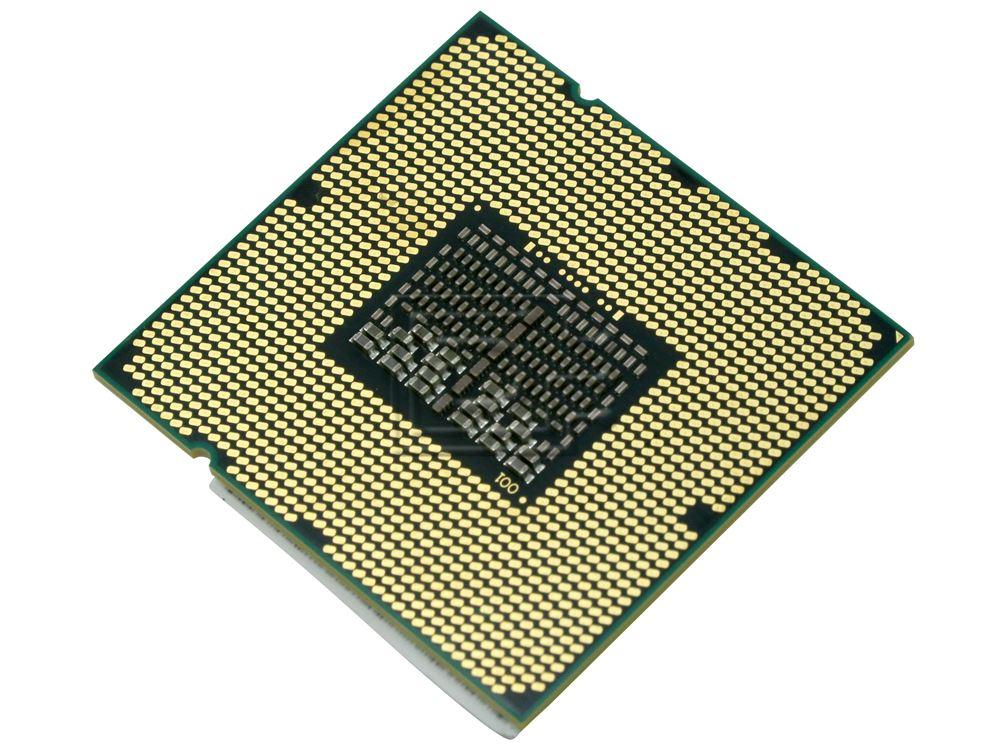

Intel L5520 2.26 GHz Quad Core 8MB SmartCache Processor

Intel L5520 / 46M0697 / 46D1269 2.26 GHz Quad Core 8 MB SmartCache Processor - Socket FCLGA1366 - Refurbished

Intel L5520 / 46M0697 / 46D1269 2.26 GHz Quad Core 8 MB SmartCache Processor - Socket FCLGA1366 - Refurbished

The Intel Xeon processor 5500 series is the first-generation server/workstation multi-core processor to implement key new technologies:

• Intergrated Memory Controller
• Point-to-point link interface based on Intel QuickPath Technology

The processor is optimized for performance with the power efficiencies of a low-power microarchitecture to enable smaller, quieter systems.

Intel Xeon processor 5500 series are multi-core processors, based on 45 nm process technology. The processor family features a range of thermal designed power (TDP) envelopes from 38w TDP up to 130W TCP. These processors feature two Intel QuickPath Interconnect point-to-point links capable of up to 6.4 GT/s, up to 8 MB of shared cache, and an Integrated Memory Controller. The processors support all the existing Streaming SIMD Extensions 2 (SSE2), Streaming SIMD Extension 3 (SSE) and Streaming SIMD Extensions 4 (SSE4). The processors support several Advanced Technologies: Execute Diable Bit, Intel 64 Technology, Enhanced Intel SpeedStep Technology, Intel Virtualization Technology (Intel VT), Intel Hyper-Threading Technology (Intel HT Technology), and Intel Turbo Boost Technology (Intel TBT).

The Intel Xeon processor 5500 series family supports multiple platform segments.

• 2-Socket Workstation Platforms support Intel Xeon Processor W5580, a 130W Thermal Design Power (TDP) SKU. These platforms provide optimal overall performance and reliability, in addition to high-end graphics support. Note specific platform usage conditions apply when implementing these processors.
• 2-Socket High Performance Server and High Performance Computing (HPC) Platforms support Intel Xeon processor 5500 series Advanced SKU (95W TDP). These platforms provide optimal overall performance.
• 2-Socket Volume Server Platforms support Intel Xeon processor 5500 series Standard/Basic SKUs (80W TDP). These platforms provide optimal performance per watt for rack-optimized platforms.
• Ultra Dense Platfroms implement Intel Xeon processor 5500 series Low Power SKU (60W TDP). These processors are intended for dual-processor server blades and embedded servers.
• Intel Xeon Processor L5518 with 60W TDP and elevated case temperatures. The elevated case temperatures are intended to meet the short-term thermal profile requirements of NEBS Level 3. These 2-Socket processors are ideal for thermally-constrained form factors in embedded servers, comms and storage markets.
• Intel Xeon Processor L5508 with 38 TDP and elevated case temperatures. The elevated case temperatures are intended to meet the short-term thermal profile requirements of NEBS Level 3. These 2-Socket processors are ideal for thermally-constrained form factors in embedded servers, comms and storage markets.
• 1-Socket Workstation Platforms support Intel Xeon processor 5500 series SKUs. These platforms enable a wide range of options for either the performance, power, or cost sensitive customer.

No Intel Xeon processor 5500 series product family p[rocessors retain any end user data when powered down and/or when the parts are physically removed from the socket.

Compatibility:

ROHS Compliant

Alternate MPNs: 46M0697 46D1269

Weight: 1 lb

Warranty: 1 Year DiscTech

Refurbished

1 Year DiscTech Warranty
