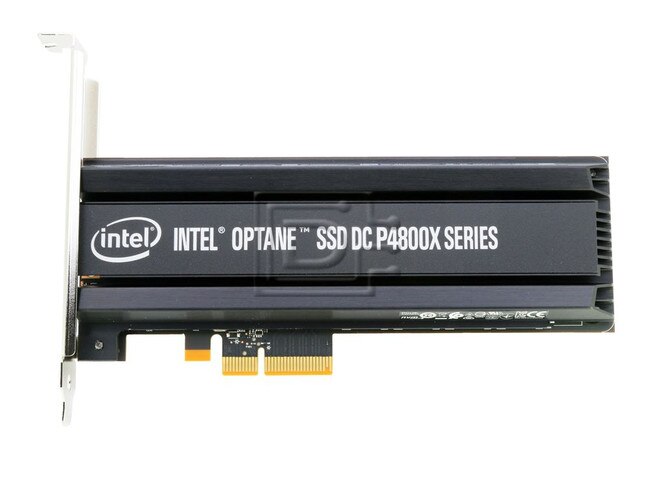

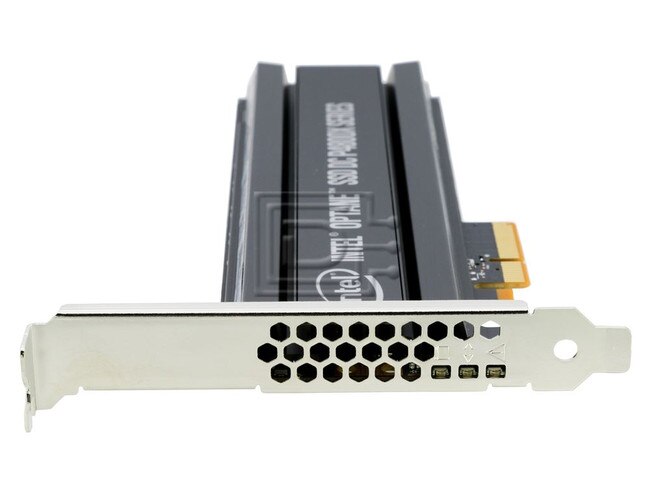

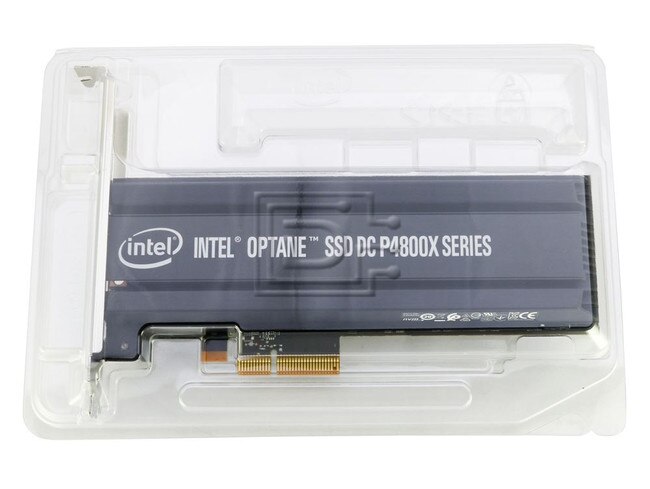

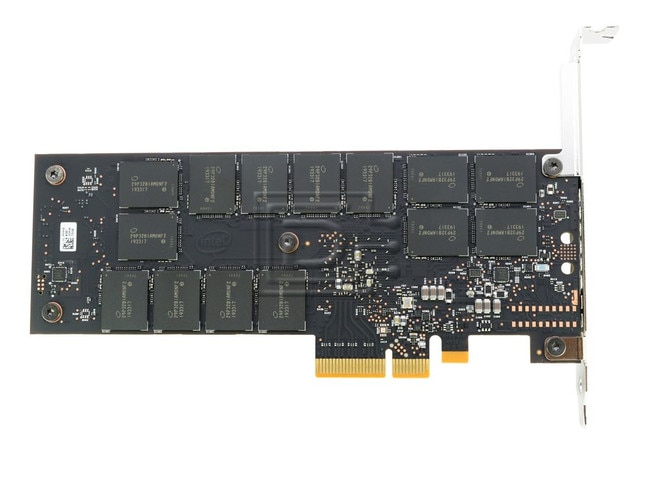

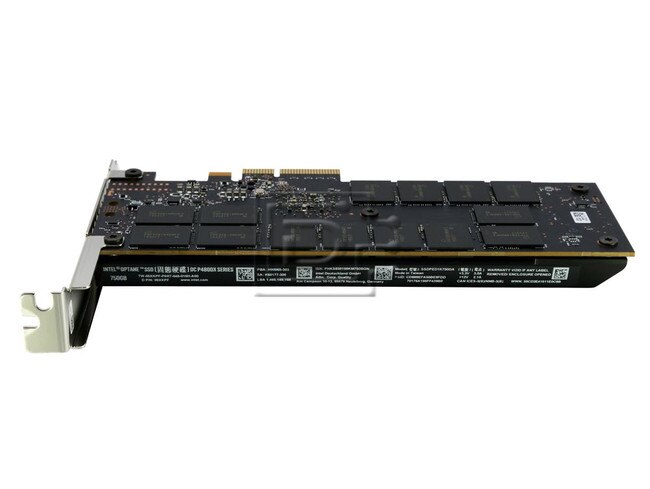

Intel Optane 4800X SSDPED1K750GA01 / Dell 5XKPF 750GB HHHL SED PCIe NVMe SSD


DiscTech Item #: INT-SSDPED1K750GA01-BN-OE-DEG

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 750GB

Speed: Solid State Memory

Interface Types: PCIe

Form Factor: Half-Height/Half-Length

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 2500/2200

Average Seek Time: 10 µs/12 µs

Electrical Interface: PCIe - v3.0 - 16GBps

SSD Endurance DWPD: Enterprise Write Intensive

Intel Optane SSDPED1K750GA01 / SSDPED1K750GA5F / Dell 5XKPF 750GB HHHL P4800X Series SED 3D XPoint PCIe 3.0 NVMe SSD - Brand New Intel Optane SSDPED1K750GA01 / SSDPED1K750GA5F / Dell 5XKPF 750GB HHHL / Half-Height Half-Length P4800X Series SED / Self-Encrypting Drive 3D XPoint PCIe / PCI Express 3.0 x4 NVMe  / NVM Express SSD / Solid State Drive - Brand New

Intel Optane SSD DC P4800X Series
World’s Most Responsive Data Center SSD

Solve the most demanding storage and memory challenges with the Intel Optane SSD DC P4800X Series

Every day, the amount of data created across the world is exploding to new levels. Enterprises and cloud service providers thrive on this data to make critical decisions, gain new insights from the data, and differentiate services. But, today’s current storage technologies leave a technology gap in data storage tiers. DRAM is far too expensive to scale and while NAND has the capacity and cost structure to scale, it lacks sufficient performance to function in the memory space. To address the gap, a storage solution that behaves like system memory is needed.

Combines Attributes of Memory and Storage
The Intel Optane SSD DC P4800X is the first product to combine the attributes of memory and storage. With an industry-leading combination of high throughput, low latency, high QoS and ultra-high endurance, this innovative solution is optimized to break through data access bottlenecks by providing a new data storage tier. The DC P4800X accelerates applications for fast caching and fast storage to increase scale per server and reduce transaction costs for latency sensitive workloads. In addition, the DC P4800X enables data centers to deploy bigger and more affordable datasets to gain new insights from large memory pools.

High Throughput for Breakthrough Performance
Realize breakthrough application performance with the DC P4800X. It is designed to deliver 5-8x faster performance at low queue depth workloads, exhibiting extremely high throughput for single accesses and super low latency. Where NAND-based SSDs are often measured at a queue depth of 32 (SATA) or 128 (NVMe) in order to showcase maximum throughput, the DC P4800X can reach as much as 500,000 IOPS, or ˜2GB/s, at a queue depth of 11. This new technology is perfectly suited to accelerate enterprise applications to new, breakthrough levels of performance.

Low Latency: Responsive Under Load
With a new data storage tier created by Intel Optane technology, data centers can consistently realize amazing response times under any workload. With NAND-based SSDs, random write operations require an immense amount of background media management. These tasks can add significant delay to the read operations. The Intel Optane SSD DC P4800X maintains consistent read response times regardless of the write throughput applied to the drive. Read response times remain below < 30μs while withstanding up to 2GB/s of random write pressure

Predictably Fast Service: QoS
In an environment of fast growing data and ever demanding needs, data centers must deploy solutions that enable predictably fast service. The DC P4800X is ideal for critical applications with demanding latency requirements. Its 99% read response time is 60x that of a high-endurance NAND SSD under random write workload. Optimized to minimize delays in data access times, the DC P4800X results in faster time to insight for decision making.

Ultra-High Endurance
Endurance affects the life expectancy and costs of enterprise SSDs. The DC P4800X is designed for high write environments, and can withstand intense write traffic that is typically demanded of memory. With its extremely high endurance, the life of the DC P4800X is extended, making it suitable for write-intensive applications such as online transaction processing, high performance computing, write caching and logging.

Use Cases for Today’s Data Center
Data centers can explore two key use cases for the DC P4800X: fast storage or cache, or extended memory.

Fast storage or cache refers to the tiering and layering which enable a better memory-to-storage hierarchy. The DC P4800X provides a new storage tier that breaks through the bottlenecks of traditional NAND storage to accelerate applications, and enable more work to get done per server.

The extended memory use case allows an Intel Optane SSD to participate in a shared memory pool with DRAM at either the OS or application level enabling bigger memory or more affordable memory. Bigger memory dramatically increases the size of ‘working sets’ to enable new insights from data in growing segments such as scientific computing, healthcare, and autonomous driving. More affordable memory means data centers can use Intel Optane SSDs to displace some DRAM.

About Intel Optane Technology
Intel Optane technology is a unique combination of 3D XPoint memory media with Intel’s advanced system memory controller, interface hardware, and software IP. This revolutionary technology is offered in several form factors to unleash vast system performance in a range of products.

In the Intel Optane SSD DC P4800X, the revolutionary Intel Optane technology delivers the unparalleled combination of high throughput, low latency, high QoS, and ultra-high endurance.

Compatibility: This drive is compatible with any personal computer, array, or server that uses HHHL PCIe Drives

Intel® Optane™ SSD DC P4800X Series
750GB, 1/2 Height PCIe x4, 3D XPoint
Product CollectionIntel® Optane™ DC SSD P4800X Series
Code NameProducts formerly Cold Stream
Capacity750 GB
Launch DateQ4'17
Performance Specifications
Sequential Bandwidth - 100% Read (up to)2500 MB/s
Sequential Bandwidth - 100% Write (up to)2200 MB/s
Random Read (100% Span)550000 IOPS (4K Blocks)
Random Write (100% Span)550000 IOPS (4K Blocks)
Power - Active18
Power - Idle6
Vibration - OperatingNA
Vibration - Non-Operating3.13 GRMS
Shock (Operating and Non-Operating)50 G, 170 in/s, trapezoidal
Operating Temperature Range0°C to 70°C
Endurance Rating (Lifetime Writes)41 PBW
Mean Time Between Failures (MTBF)2 million hours
Uncorrectable Bit Error Rate (UBER)< 1 sector per 1017 bits read
Package Specifications
Form FactorHHHL (CEM3.0)
InterfacePCIe NVMe 3.0 x4
Advanced Technologies
Enhanced Power Loss Data ProtectionYes
High Endurance Technology (HET)AES 256 bit
Temperature Monitoring and LoggingYes
End-to-End Data ProtectionYes
Intel® Smart Response TechnologyNo
Intel® Rapid Start TechnologyNo
Intel® Remote Secure EraseNo

Click here to view the manufacturer's item description/brochure

Alternate MPNs: SSDPED1K750GA5F 5XKPF 05XKPF

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
