INTEL Part #/MPN: PWLA8494GT
DiscTech Item #: INT-PWLA8494GT-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45, PCI, PCI-X
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 256MB

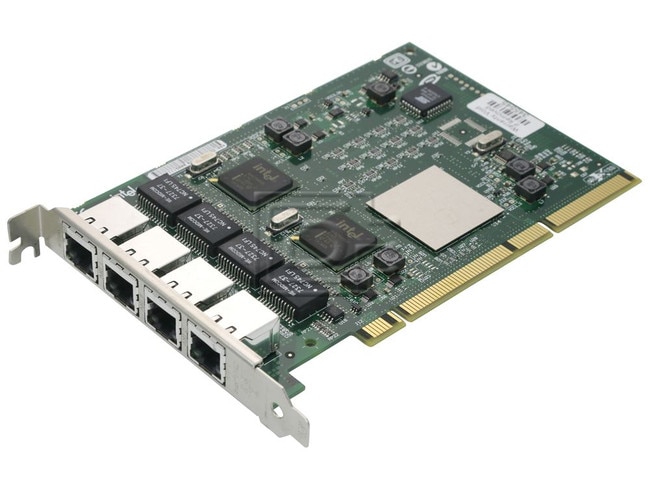

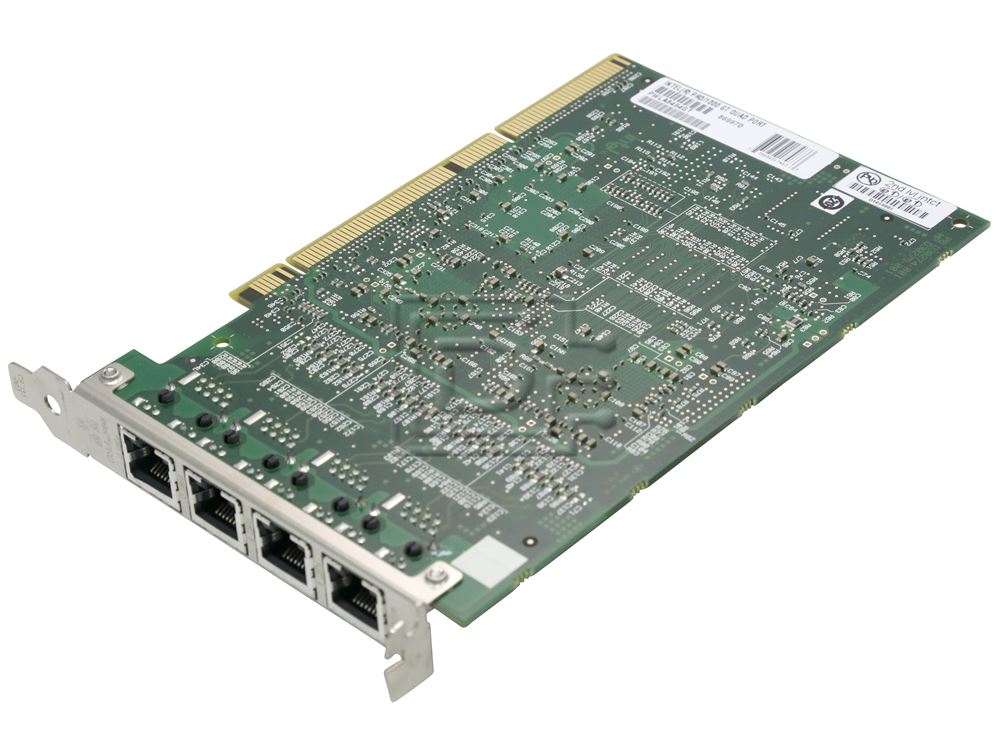

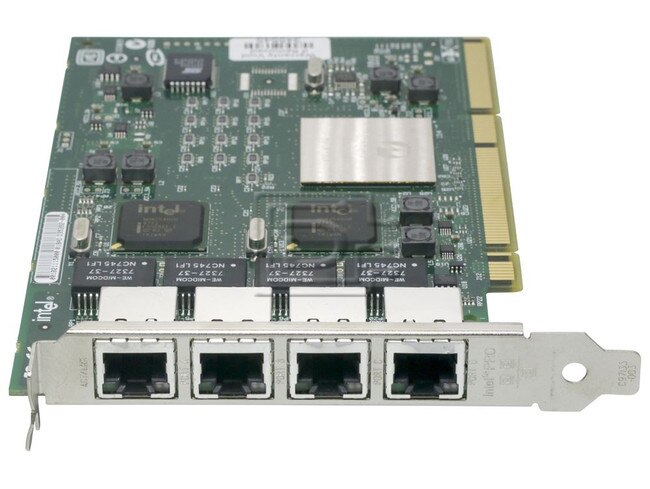

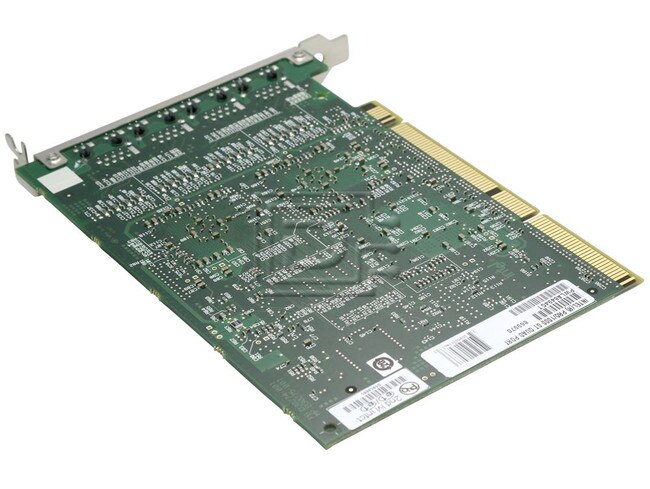

Intel Pro/1000 GT Quad Port Ethernet Server Adapter 10/100/1000Mbps PWLA8494GT - New Pull
Intel Pro/1000 GT Quad Port Ethernet Server Adapter 10/100/1000Mbps PWLA8494GT - New Pull
The Intelligent Way to Connect
Access multiple network segments, conserve valuable Peripheral Component Interconnect (PCI) slots in servers, and migrate existing Category-5 (CAT-5) networks to Gigabit Ethernet easily and cost-effectively with the Intel® PRO/1000 GT Quad Port Server Adapter. Standards-based management features help ensure compatibility with the latest server and networking environments. Enhance server performance further by teaming connections on this adapter with each other, with connections on other Intel® PRO Server Adapters or with LAN-on-motherboard components using the Intel® Advanced server features to achieve multi-Gigabit scalability and redundant failover capability.
Alt Pt#: PWLA8494GTBLK
Compatibility: This intel server adapter is compatible with any PC or server with 32bit PCI or 64bit PCI-X slot.
 | | ||
| Features | Benefits | ||
| Data Rate per port | 10, 100, 1000 Mbps | ||
| Bus Type | PCI / PCI-X | ||
| Bus Speed | 66/100/133 MHz | ||
| Onboard Memory | 256KB | ||
| Form Factor | Full Ht / Half Length FHHL | ||
| Interrupt Levels | INTA, INTB, INTC, INTD | ||
| Advanced configuration and Power Interface (ACPI) Wake on Lan (WoL), Preboot Execution Environment (PXE) | Lower power consumption, remote wake and remote booting. | ||
| Intel® NH82546GB Gigabit Controller | Enhances high performance and reliability | ||
| Meets IEEE 802.3ab Technology | Supports high interoperability | ||
| Advanced Cable Diagnostics | Dynamically tests and reports network problems (error rate, cable length) and automatically compensates for cable issues (cross over cable, wrong pin-out/polarity) | ||
| Support for Many Network Operating Systems (NOSs) | Enables widespread deployment | ||
Click here to view the manufacturer's item description/brochure
Alternate MPNs: PWLA8494GTBLK
Weight: 1 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
