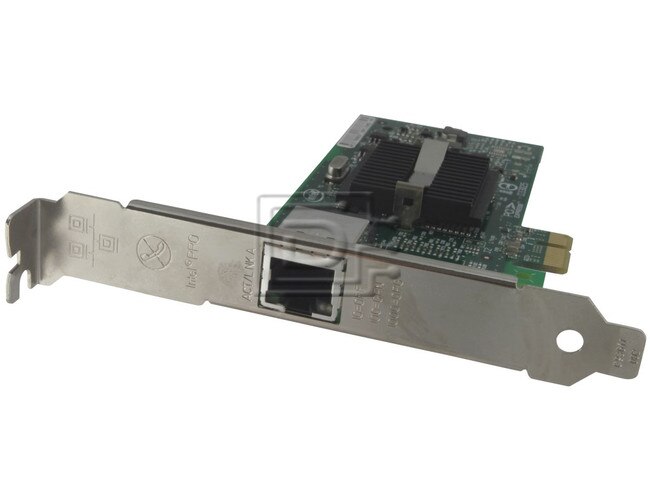

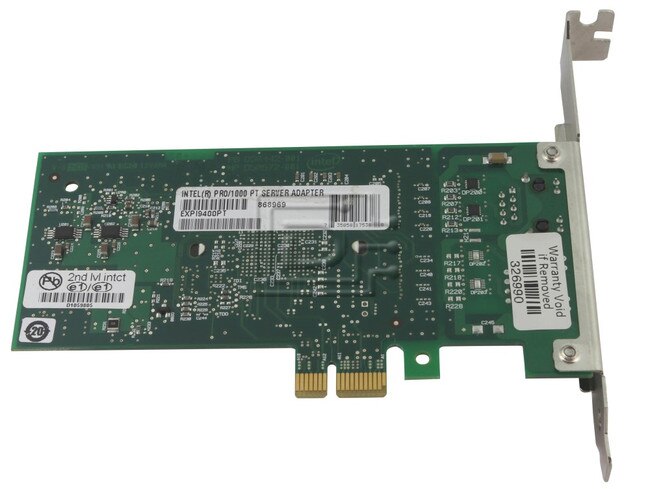

Intel Pro/1000 Intel PRO/1000 PT Server Adapter EXPI9400PT


DiscTech Item #: INT-EXPI9400PT-NP-OE


Interface Types: Ethernet RJ45, PCIe

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 8MB

Intel Pro/1000 Intel PRO/1000 PT Single Port PCI-E 1x Server Adapter EXPI9400PT - New Pull

Intel Pro/1000 Intel PRO/1000 PT Single Port Server Adapter EXPI9400PT - New Pull

One Gigabit Copper Server Connection in a PCI Express* 1x Slot

Conserve valuable PCI Express (PCIe*) server slots while adding Gigabit Ethernet capability with the Intel PRO/1000 PT Single Port Server Adapter. The dedicated I/O bandwidth of PCIe ensures priority performance for Gigabit Ethernet connectivity in Category-5 networks.

The Intel PRO/1000 PT Server Adapter features 10/100/ 1000 Mbps self-configuration for compatibility with mixed-speed network devices, and is supported by Intel PRO Intelligent Install and the new Intel PROSet Utility for Microsoft* Device Manager. Intel PROSet simplifies adapter installation and gives you point-and-click power to configure and manage all your Intel PRO Network Connections for connectivity you can count on.

One high-performance PCI Express 10/100/1000 Mbps connection.

Built on Intel lead-free1 technology

***Does NOT include Optional low-profile bracket included for high-density, rack-mounted servers

Features Benefits
Intel 82571GB Gigabit Controller Enhances high performance and reliability
Load balancing on multiple CPUs Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with receive-side scaling from Microsoft or Scalable I/O on Linux
Interrupt moderation Delivers increased performance while significantly reducing CPU utilization
Compatible with x4, x8, and x16 full-height and low-profile PCI Express* slots Allows use in any PCI Express server slots
Support for most network operating systems (NOS) Enables widespread deployment
Remote management support Reduces support costs with remote management based on industry-wide standards
Category-5 unshielded twisted pair (UTP), 4-pair cabling Uses existing 4-pair cabling and saves re-wiring costs
RoHS compliant Compliant with the new European Union directive (effective July 2006) to reduce the use of hazardous materials
Intel PROSet Utility for Microsoft* Device Manager Provides point-and-click power over individual adapters, advanced adapter features, connection teaming, and VLAN configuration
Advanced cable diagnostics Dynamically tests and reports network problems (error rate, cable length) and automatically compensates for cable issues (cross-over cable, wrong pin-out/polarity)

Click here to view the manufacturer's item description/brochure

Weight: 0.5 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
