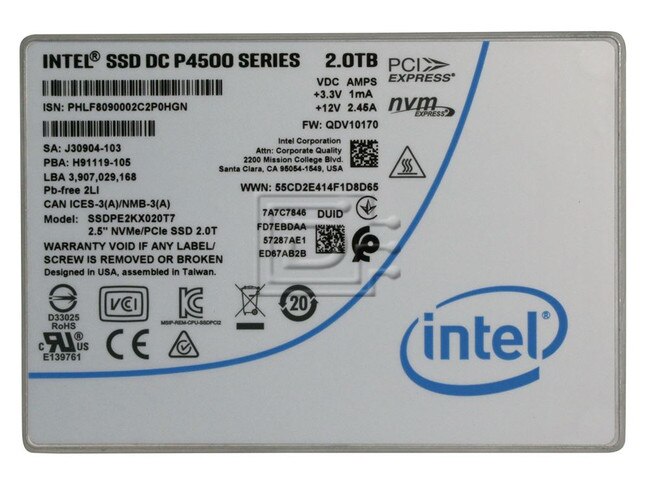

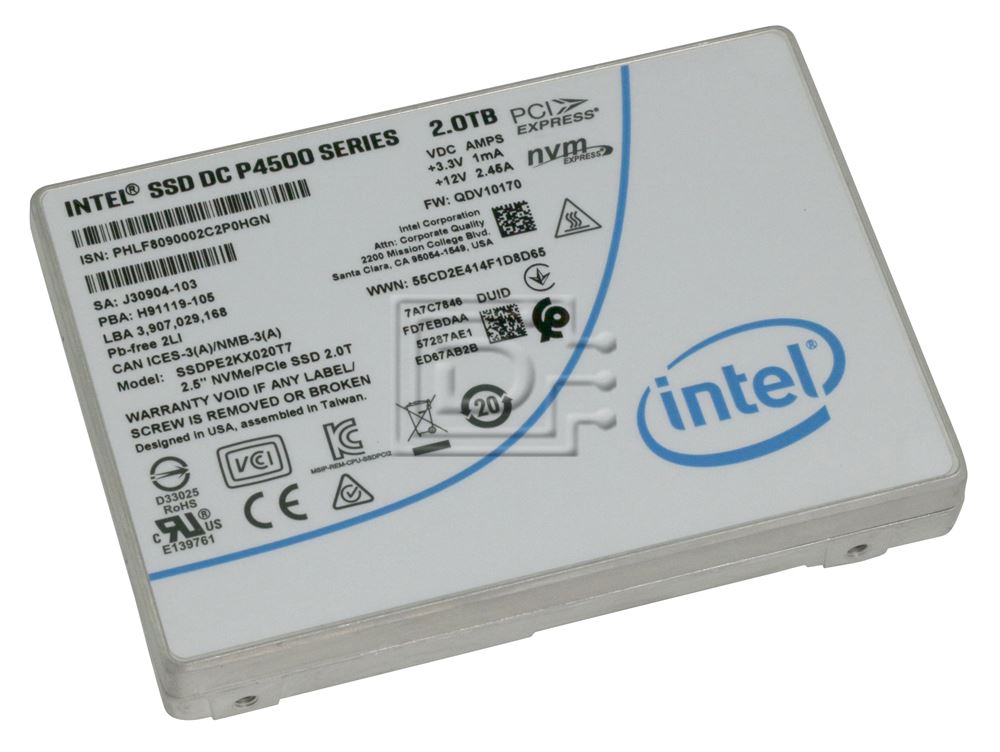

Intel SSDPE2KX020T701 2TB PCIe SSD

INTEL Part #/MPN: SSDPE2KX020T701

DiscTech Item #: INT-SSDPE2KX020T701-BN-5Y


$450.00

This item is not in stock. Please call us for options.

  • Special Order - Call for Lead Time
    Special Order - Call for Lead Time

    This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$450.00

This item is not in stock. Please call us for options.


Capacity: 2TB

Speed: Solid State Memory

Interface Types: NVMe U.2

Form Factor: 2.5inx7mm Fits All laptops

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: 3290 / 1140

Average Seek Time: 80 / 29 µs

Electrical Interface: PCIe - v3.0 - 32GBps

SSD Type: TLC

SSD Endurance DWPD: Enterprise Read Intensive

Intel SSDPE2KX020T701 2TB 2.5in TLC DC P4500 Series Read Intensive SED PCIe NVMe 3.1 SSD - Brand New

Equivalent/Comparable to: SSDPE2KX020T801 / SSDPE2KX020T8

Intel SSDPE2KX020T701 2TB / 2000GB 2.5" Triple-Level Cell Data Center / DC P4500 Series Read Intensive Drive Writes Per Day / DWPD-0.5 Self-Encrypting Drive / SED Peripheral Component Interface Express / PCIe Non-Volatile Memory Express / NVMe 3.1 Solid State Disk Drive / SSD - Brand New

Intel® 3D NAND SSD DC P4500 Series Data Center (DC), PCI Express* (P)

Cloud Inspired. Storage Optimized.

Designed for modern cloud storage solutions such as software-defined and converged infrastructures.
Pairing a new Intel developed controller, unique firmware innovations, and industry-leading 3D NAND density, the Intel® SSD Data Center P4500 Series—a member of the 2nd Gen Intel® 3D NAND SSD family—delivers an all new design to support cloud storage and software-defined infrastructures. The Intel SSD DC P4500 Series is stacked with a combination of performance, capacity, manageability, and reliability to help data centers fast-track their business and meet the overall demands of their digital business.

An SSD Built for Cloud Storage Architectures
The cloud continues to drive innovation, new services, and agility for businesses which are seeing the need to deploy services faster, scale effectively, and reduce the human costs of managing assets. Multi-cloud has become a core element for any enterprise strategy, with top cloud providers openly embracing PCIe*/NVMe*-based SSDs because of the scalable performance, low latency, and continued innovation.

Within the shift to the cloud is an increased adoption of software-defined and converged infrastructures. This fast adoption is being driven by the need to increase efficiency, refresh existing hardware, deploy new workloads, and reduce operational expenditures.

The Intel SSD DC P4500 significantly increases server agility and utilization, while also accelerating applications, across a wide range of cloud workloads.

Optimized for Storage Efficiency Across a Range of Workloads
This cloud-inspired SSD is built with an entirely new NVMe controller, optimized for read intensive workloads and designed to maximize CPU utilization.

With controller support for up to 128 queues, the DC P4500 helps minimize the risk of idle CPU cores and performs most effectively on Intel platforms with Intel® Xeon® processors. The queue pair-to-CPU core mapping supports high drive count and also supports multiple SSDs scaling on Intel platforms.

With the DC P4500, data centers can increase users, add more services, and perform more workloads per server, or quickly repartition to adapt to conditions. Now you can store more and know more.

Manageability to Maximize IT Efficiency

New firmware manageability features help reduce server downtime through improved update processes and expanded monitoring capabilities.

SMART management and Intel custom log pages provide advanced drive telemetry to manage thermals, monitor endurance, and track drive health status. Management coverage is now expanded across a wider range of drive states with support for the NVMe-Management Interface (NVMe-MI) specification, an industry standard way to manage the SSD out-of-band.

Industry-leading Reliability and Security
As capacity per server continues to scale, the risk of data corruption and errors increases. With an eye toward this risk, Intel has built industry-leading end-to-end data protection into the DC P4500.1 This includes protection from silent data corruption which can cause catastrophic downtime and errors in major businesses.

Power Loss Imminent (PLI) provides protection from unplanned power loss, and is obtained through a propriety combination of power management chips, capacitors, firmware algorithms, and a built-in PLI self-test. Intel’s PLI feature provides data centers with high confidence of preventing data loss during unplanned power interrupts.

Designed for Today’s Modern Data Centers
The DC P4500 is Intel’s new 3D NAND SSD for readintensive workloads in cloud-driven data centers. The mix of performance, capacity, manageability, and reliability make it the ideal solution for software-defined and converged infrastructures. Learn more now at www.intel.com/ssd..

Features At-a-Glance

Capacity

  • 1 TB
  • 2 TB
  • 4 TB

Performance

  • 64k Sequential Read/Write – up to 3290/1890 MB/s
  • 4k Random Read/Write – up to 710,000/68,000 IOPS

Manageability

  • Support for NVM Express-Management Interface (NVMe-MI), NVMe SMART / Health and Log Pages

Reliability

  • End-to-end data protection from silent data corruption, uncorrectable bit error rate < 1 sector per 1017 bits read

Interface

  • PCIe 3.1 x4, NVMe 1.2

Form Factor

  • U.2 2.5in x 15mm (for serviceability, hot-plug, and density)
  • Add-in-Card: Half-Height Half-Length, low-profile (for legacy and mainstream server compatibility)

Media

  • Intel 3D NAND, TLC

Endurance

  • Random/JEDEC up to 0.7 DWPD / 4.6 PBW
  • Sequential workload up to 4.62 DWPD / 19.8 PBW

Power

  • Max read/write 10.9W / 18.3W
Equivalent/Comparable to: SSDPE2KX020T801 / SSDPE2KX020T8


Compatibility:

This drive is compatible with any server or laptop that accepts 2.5"x 5,7,9 or 15mm (SFF Hard Drive) NVME PCIe drives.

Intel® SSD DC P4500 Series
Model NumberSSDPE2KX020T701
ESSENTIALS
PRODUCT COLLECTIONIntel® SSD DC P4500 Series
CODE NAME Products formerly Cliffdale
CAPACITY2 TB
STATUSLaunched
LAUNCH DATEQ2'17
LITHOGRAPHY TYPE3D NAND TLC
PERFORMANCE
SEQUENTIAL READ (UP TO)3290 MB/s
SEQUENTIAL WRITE (UP TO)1140 MB/s
RANDOM READ (100% SPAN)515000 IOPS
RANDOM READ (100% SPAN)41000 IOPS
LATENCY - READ80 µs
LATENCY - WRITE29 µs
POWER - ACTIVE Sequential Avg. 13.75 W (Write), 8.95 W (Read)
POWER - IDLE5 W
RELIABILITY
VIBRATION - OPERATING2.17 GRMS
VIBRATION - NON-OPERATING3.13 GRMS
SHOCK (OPERTING AND NON-OPERATING)1000 G/0.5 msec
OPERTING TEMPERATURE RANGE0°C to 70°C
ENDURANCE RATING (LIFETIME WRITES)1790 PBW
MEAN TIME BETWEEN FAILURES (MTBF)2 million hours
UNCORRECTABLE BIT ERROR RATE (UBER)1 sector per 10^17 bits read
PACKAGE SPECIFICATIONS
WEIGHT134g
FORM FACTOR2.5" 15mm
INTERFACEPCIe NVMe 3.1 x4
ADVANCED TECHNOLOGIES
ENHANCED POWER LOSS DATA PROTECTIONYes
HARDWARE ENCRYPTIONAES 256 bit
HIGH ENDURANCE TECHNOLOGY (HET)No
TEMPERATURE MONITORING AND LOGGINGYes
END-TO-END DATA PROTECTIONYes
INTEL SMART RESPONSE TECHNOLOGYNo
INTEL RAPID START TECHNOLOGYNo
INTEL REMOTE SECURE ERASENo

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 950689 115534-00 SSDPE2KX020T7

Weight: 0.5 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
