Intel SSDPE2MD400G4 / Dell KFR6H 400GB PCIe SSD
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 400GB |
| Speed: | Solid State |
| Interface Types: | NVMe U.2 |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | PCIe 3.0 16GBps |
Description

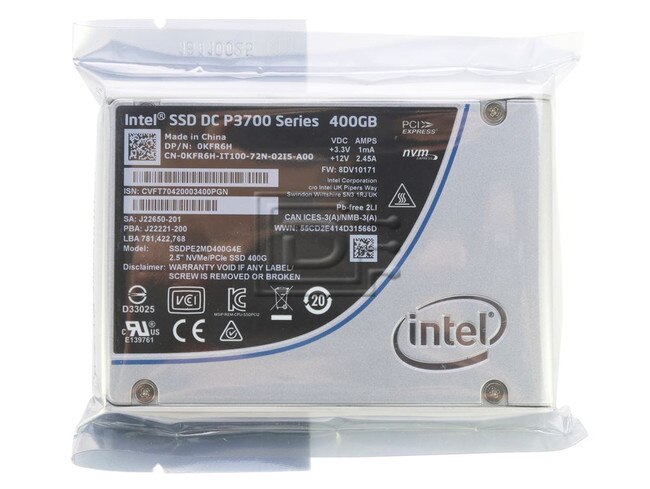

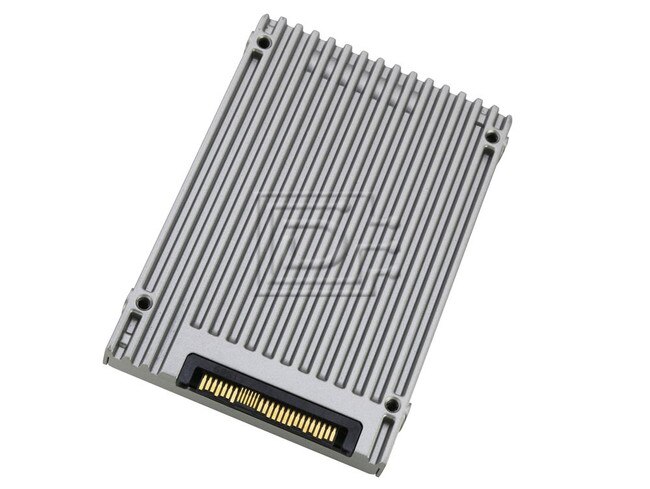

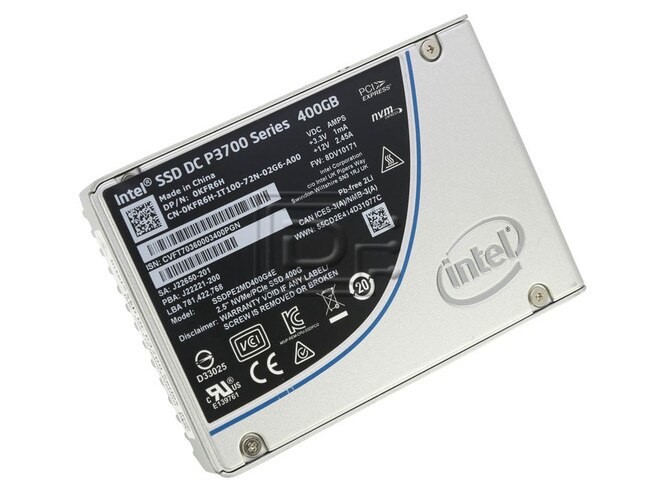

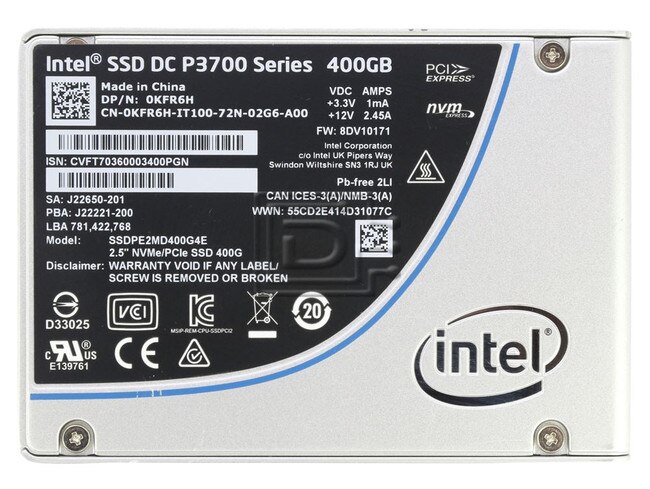

Intel SSDPE2MD400G4 / SSDPE2MD400G4E / Dell KFR6H 400GB 2.5" DC P3700 Series PCIe NVMe 3.0 MLC SSD - Brand New
Intel SSDPE2MD400G4 / SSDPE2MD400G4E / Dell KFR6H 400GB 2.5" DC P3700 Series PCIe NVMe 3.0 MLC SSD - Brand New
Intel Model Number: SSDPE2MD400G4
Breakthrough performance – The Intel® Solid-State Drive Data Center Family for PCIe brings extreme data throughput directly to Intel® Xeon® processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel® Solid-State Drive Data Center P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through a host bus adapter (HBA) (approximately 500K IOPS).
Modernizes data center storage – Intel led the industry in creation of a new Non-Volatile Memory Express (NVMe) storage interface standard. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology.
Comprehensive solution – Intel is driving transition to NVMe SSDs by providing a comprehensive product line, enabling extensive system compatibility, delivering Intel drivers as well as supporting industry driver development, and completing numerous industry standard compliance certifications.
Proven quality and reliability – Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility testing ensures a highly reliable SSD. The Intel® SSD Data Center Tool provides a powerful set of management capabilities.
Compatibility
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) PCIe drives.
Specifications
| Intel Model Number | SSDPE2MD400G4 |
|---|---|
| Ordering Part Number | SSDPE2MD400G4E |
| Capacity | 400GB |
| Interface | PCIe NVMe 3.0 x4 |
| Product Specification | |
| Sequential Read | 2700 MB/s |
| Sequential Write | 1080 MB/s |
| Random Read (100% Span) | 450000 IOPS |
| Random Write (100% Span) | 75000 IOPS |
| Latency - Read | 20 µs |
| Latency - Write | 20 µs |
| Power - Active | 12W (write), 9W (read) |
| Power - Idle | 4W |
| Vibration - Operating | 2.17 GRMS |
| Vibration - Non-Operating | 3.13 GRMS |
| Shock (Operating and Non-Operating) | 1000G/0.5msec |
| Operating Temperature Range | 0°C to 70°C |
| Weight (g/lb) | 115/0.254 |
| Endurance Rating (Lifetime Writes) | 7.3 PBW (JEDEC Workload) |
| Mean Time Between Failures (MTBF) | 2,000,000 Hrs |
| Uncorrectable Bit Error Rate (UBER) | less than 1 sector per 1e17 bits read |
| Form Factor | 2.5" 15mm |
| Lithography | 20 nm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDPE2MD400G4E KFR6H 0KFR6H
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
