INTEL Part #/MPN: SSDPE2ME016T401
DiscTech Item #: INT-SSDPE2ME016T401-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 1.6TB
Speed: Solid State Memory
Interface Types: PCIe
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 2600
Average Seek Time: 20 µs/20 µs
Electrical Interface: PCIe - v3.0 - 16GBps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

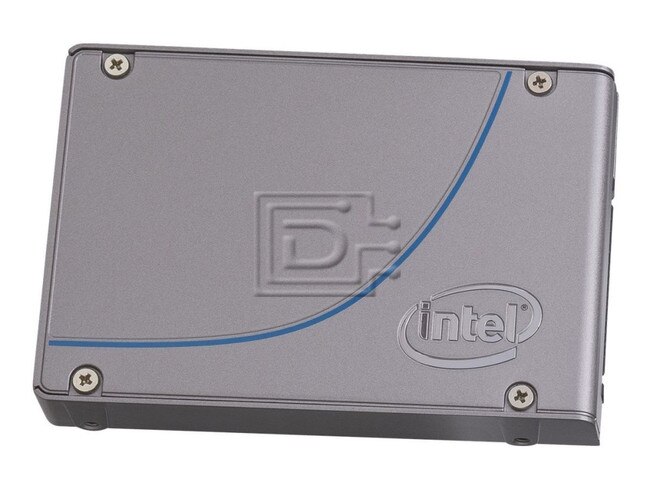

Intel SSDPE2ME016T401 / SSDPE2ME016T4 1.6TB 2.5in MLC DC P3600 Series PCIe NVMe 3.0 SSD - Brand New
Intel SSDPE2ME016T401 1600GB 2.5" Multi-Level Cell Data Center P3600 Series Peripheral Component Interface Express Non-Volatile Memory Express 3.0 Solid State Disk Drive - Brand New
Intel Model Number: SSDPE2ME016T4
Alt. Ordering Part Number: SSDPE2ME016T410
Breakthrough performance – The Intel® Solid-State Drive Data Center Family for PCIe brings extreme data throughput directly to Intel® Xeon® processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel® Solid-State Drive Data Center P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through a host bus adapter (HBA) (approximately 500K IOPS).
Modernizes data center storage – Intel led the industry in creation of a new Non-Volatile Memory Express (NVMe) storage interface standard. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology.
Comprehensive solution – Intel is driving transition to NVMe SSDs by providing a comprehensive product line, enabling extensive system compatibility, delivering Intel drivers as well as supporting industry driver development, and completing numerous industry standard compliance certifications.
Proven quality and reliability – Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility testing ensures a highly reliable SSD. The Intel® SSD Data Center Tool provides a powerful set of management capabilities.
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) PCIe drive.
| Intel Model Number | SSDPE2ME016T4 |
|---|---|
| Ordering Part Numbers | SSDPE2ME016T401 SSDPE2ME016T410 |
| Capacity | 1.6TB/1600GB |
| Interface | PCIe NVMe 3.0 x4 |
| Product Specification | |
| Sequential Read | 2600 MB/s |
| Sequential Write | 1600 MB/s |
| Random Read (100% Span) | 450000 IOPS |
| Random Write (100% Span) | 50000 IOPS |
| Latency - Read | 20 µs |
| Latency - Write | 20 µs |
| Power - Active | 20W (write), 9W (read) |
| Power - Idle | 4W |
| Vibration - Operating | 2.17 GRMS |
| Vibration - Non-Operating | 3.13 GRMS |
| Shock (Operating and Non-Operating) | 1000G/0.5msec |
| Operating Temperature Range | 0°C to 70°C |
| Weight (g/lb) | 125/0.276 |
| Endurance Rating (Lifetime Writes) | 8.76 PBW (JEDEC Workload) |
| Mean Time Between Failures (MTBF) | 2,000,000 Hrs |
| Uncorrectable Bit Error Rate (UBER) | less than 1 sector per 1e17 bits read |
| Form Factor | 2.5" 15mm |
| Lithography | 20 nm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDPE2ME016T4 SSDPE2ME016T410
Weight: 1 lb
Warranty: 5 Year Manufacturer
