INTEL Part #/MPN: SSDPE2ME400G401
DiscTech Item #: INT-SSDPE2ME400G401-BN-5Y
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Speed: Solid State Memory
Interface Types: PCIe
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 2100
Average Seek Time: 20 µs/20 µs
Electrical Interface: PCIe - v3.0 - 16GBps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

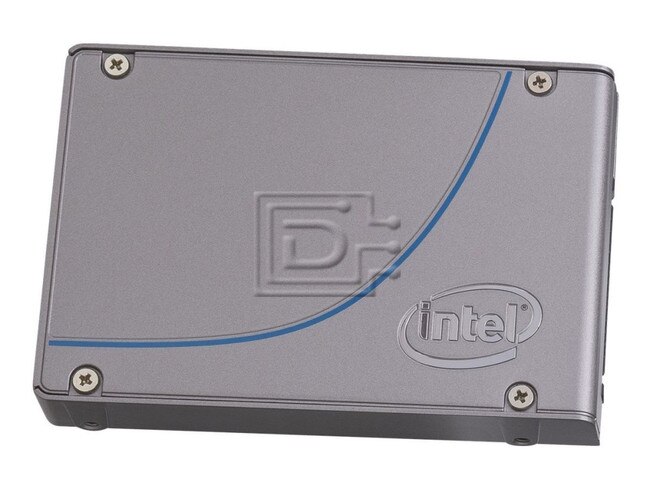

Intel SSDPE2ME400G401 / SSDPE2ME400G4 400GB 2.5in MLC DC P3600 Series PCIe NVMe 3.0 SSD - Brand New
Intel SSDPE2ME400G401 400GB 2.5" Multi-Level Cell Data Center P3600 Series Peripheral Component Interface Express Non-Volatile Memory Express 3.0 Solid State Disk Drive - Brand New
Intel Model Number: SSDPE2ME400G4
Alt. Ordering Part Number: SSDPE2ME400G410
Breakthrough performance – The Intel® Solid-State Drive Data Center Family for PCIe brings extreme data throughput directly to Intel® Xeon® processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel® Solid-State Drive Data Center P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through a host bus adapter (HBA) (approximately 500K IOPS).
Modernizes data center storage – Intel led the industry in creation of a new Non-Volatile Memory Express (NVMe) storage interface standard. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology.
Comprehensive solution – Intel is driving transition to NVMe SSDs by providing a comprehensive product line, enabling extensive system compatibility, delivering Intel drivers as well as supporting industry driver development, and completing numerous industry standard compliance certifications.
Proven quality and reliability – Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility testing ensures a highly reliable SSD. The Intel® SSD Data Center Tool provides a powerful set of management capabilities.
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) PCIe drives.
|Intel Model Number||SSDPE2ME400G4|
|Ordering Part Numbers||SSDPE2ME400G401 |
|Interface||PCIe NVMe 3.0 x4|
|Sequential Read||2100 MB/s|
|Sequential Write||550 MB/s|
|Random Read (100% Span)||320000 IOPS|
|Random Write (100% Span)||30000 IOPS|
|Latency - Read||20 µs|
|Latency - Write||20 µs|
|Power - Active||8W (write), 7W (read)|
|Power - Idle||4W|
|Vibration - Operating||2.17 GRMS|
|Vibration - Non-Operating||3.13 GRMS|
|Shock (Operating and Non-Operating)||1000G/0.5msec|
|Operating Temperature Range||0°C to 70°C|
|Endurance Rating (Lifetime Writes)||2.19 PBW (JEDEC Workload)|
|Mean Time Between Failures (MTBF)||2,000,000 Hrs|
|Uncorrectable Bit Error Rate (UBER)||less than 1 sector per 1e17 bits read|
|Form Factor||2.5" 15mm|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: SSDPE2ME400G4 SSDPE2ME400G410
Weight: 1 lb
Warranty: 5 Year Manufacturer
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
