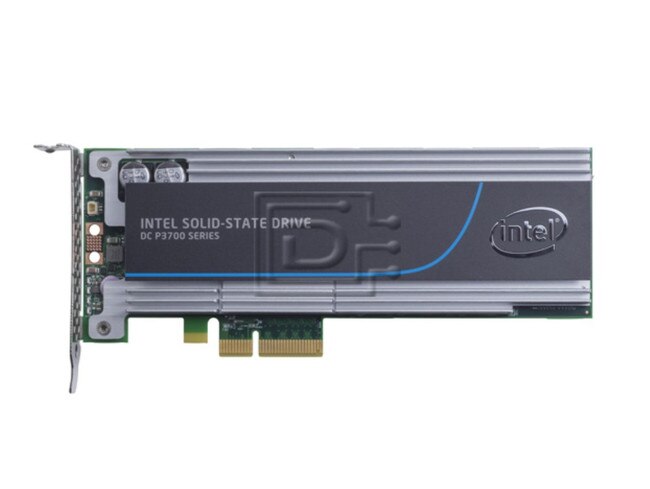

Intel SSDPEDMD016T401 1.6TB PCIe Solid State Drive


DiscTech Item #: INT-SSDPEDMD016T401-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 1.6TB

Speed: Solid State Memory

Interface Types: PCIe

Form Factor: Half-Height/Half-Length

Sector Size: 512 / 512e

Sustained Throughput: 2800 / 1900

Average Seek Time: 20 µs / 20 µs

Electrical Interface: PCIe - v3.0 - 16GBps


SSD Endurance DWPD: Enterprise Mixed Use

Wattage/VA: 22W

Intel SSDPEDMD016T401 / SSDPEDMD016T410 1.6TB HHHL Mixed Use 15-DWPD MLC DC 3700 Series PCIe NVMe 3.0 SSD - Brand New

Intel SSDPEDMD016T401 1600GB Half Height / Half Length Mixed Use 15-Drive Writes Per Day Multi-Level Cell Data Center 3700 Series PCI Express / Peripheral Component Interface Express Non-Volatile Memory Express 3.0 Solid State Disk Drive - Brand New

Intel Solid State Drive Data Center Family for PCIe DC P3700 Series

Make the Switch to Faster Data
Deliver breakthrough performance with Intel PCIe Solid State Drives

Breakthrough Performance
The Intel Solid State Drive (SSD) Data Center Family for PCIe brings extreme data throughput directly to Intel Xeon processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The Intel SSD Data Center Family for PCIe is capable of reading dat up to 2.8GB/s and 460k Input/Output Operations Per Second (IOPS) and writing up to 2.0GB/s and 175k IOPS.

The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel SSD DC P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through an HBA (~500K IOPS). At 200IOPS per Hard Disk Drive (HDD), 2,300 15K HDDs would be need to match the performance of one Intel SSD Data Center Family for PCIe device.

Intel SSD Data Center Family for PCIe’s consistently amazing performance provides fast, unwavering data streams directly to Intel Xeon processors making server data transfers efficient. SSD performance consistency provides scalable throughput when multiple SSDs are unified into a single storage volume. The massive storage bandwidth increase fees Intel Xeon processor systems giving data center servers a performance boost.

Proven Quality and Reliability
Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility test ensures a high reliable SSD. By combining SSD NAND management techniques and NAND silicon enhancements, High Endurance Technology (HET) enables the Intel DC P3700 Series to achieve 17 drive writes per day ove a five year drive life.

Modernize Data Center Storage
NVMe is engineered for current and future Non-Volatile Memory (NVM) technologies, unlike SAS/SATA SSDs. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology. Intel Xeon processors efficiently transfer data in fewer clock cycles with the NVMe optimized software stack compared to the legacy Advanced Host Controller Interface (AHCI) stack, reducing latency and overhead. Direct CPU connection also eliminates Host-Bus-Adapter cards, further reducing latency and TCO.

Comprehensive Solution
Intel’s product line enables extensive system compatibility, completes numerous industry standard compliance certifications, and delivers Intel drivers, supporting industry drive development. The Intel SSD Data Center Family for PCIe provides a full range of endurance up to 17 full-capacity writes per day, capacity up to 2TB, and 2.5-inch and ADD-in Card (AIC) form factors. Intel-enabled NVMe software drivers are provide by major operating system vendors including Microsoft Server 2012 and 2008, Windows 7, 8, and 8.1, Read Hat 7.0/6.6/6.5, SLES 11 SP3, UEFI, 2.3.1, and Linux Open Source development community. The new 2.5 inch form factor with hot-swap capability provides convenient front panel serviceability allowing quick, uninterrupted installation. The AIC form factor conveniently fits in half-height, half-length (HHHL) slots.

Alternate MPN: SSDPEDMD016T410


This drive is compatible with any server that accepts Half Height/Half Length PCIe drives.

Intel SSD DC P3700 Series
Model/Part No.SSDPEDMD016T401
Alt Model/Part No.SSDPEDMD016T410
Lithogratphy Type20nm
Sequential Read (up to)2800 MB/s
Sequential Write (up to)1900 MB/s
Random Read (100% Span)450000 IOPS
Random Write (100% Span)150000 IOPS
Latency - Read20 µs
Latency - Write20 µs
Power - Active22W (write), 10W (read)
Power - Idle4W
Vibration - Operating2.17 GRMS
Vibration - Non-Operating3.13 GRMS
Shock (Operating and Non-Operating)50 G Trapezoidal 170 in/s
Operating Temerature Range0°C to 55°C
Endurance Rating (Lifetime Writes)43.8 PBW (JEDEC Workload), 15 DWPD
Mean Time Between Failure (MTBF)2,000,000 Hrs
Uncortectable Bit Error Rate (UBER)less than 1 sector per 1e17 bits read
Package Specifications
Weightup to 195 g
Form FactorHHHL (CEM2.0)
InterfacePCIe NVMe 3.0 x4
Advanced Technologies
Enhanced Power Loss Data ProtectionYes
High Endurance Technology (HET)Yes
Temperature Moitoring and LoggingYes
End-to-End Data ProtectionYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SSDPEDMD016T410

Weight: 1 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
