INTEL Part #/MPN: SSDPEDMD020T401
DiscTech Item #: INT-SSDPEDMD020T401-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 2TB
Speed: Solid State Memory
Interface Types: PCIe
Form Factor: Half-Height/Half-Length
Sector Size: 512 / 512e
Sustained Throughput: 2800
Electrical Interface: PCIe - v3.0 - 16GBps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive

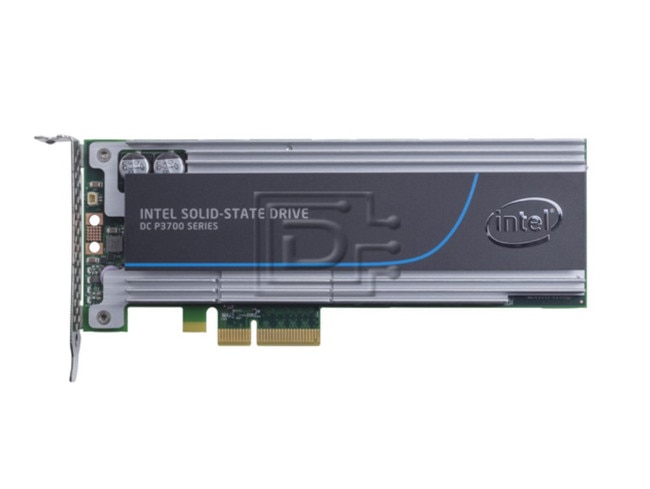

Intel SSDPEDMD020T401 / SSDPEDMD020T4 2TB 1/2 Height DC P3700 Series PCIe 3.0 SSD - Brand New
Intel SSDPEDMD020T401 2TB 1/2 Height DC P3700 Series PCIe 3.0 SSD - Brand New
Intel Model Number: SSDPEDMD020T4
Alt. Ordering Part Number: SSDPEDMD020T410
Intel SSD Data Center Family for PCIe P3700 provides breakthrough performance to modernize data center storage from an industry leader.
Intel P3700 brings extreme data throughput directly to Xeon processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs1. The performance of a single drive from DC P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through an HBA (500K IOPS). At 200 IOPS per Hard Disk Drive (HDD), 2,300 15K HDDs would be needed to match the performance of one these drives. Consistently amazing performance provides fast, unwavering data streams directly to Intel Xeon processors making server data transfers efficient. SSD performance consistency provides scalable throughput when multiple SSDs are unified into a single storage volume. The massive storage bandwidth increase feeds Intel Xeon processor systems giving data center servers a performance boost. Servers can now support more users simultaneously, compute on larger data sets, and address high-performance computing at lower Total Cost of Ownership (TCO). Intel led the industry in creation of a new Non-Volatile Memory Express (NV ME) storage interface standard. NV ME is engineered for current and future NVMe technologies, unlike SAS/SATA SSDs. NV ME overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology. Intel Xeon processors efficiently transfer data in fewer clock cycles with the NV ME optimized software stack compared to the legacy Advance Host Controller Interface (AHCI) stack, reducing latency and overhead. Direct CPU connection also eliminates Host-Bus-Adapter (HBA) cards, further reducing latency and TCO. The new 2.5" form-factor with hot-swap capability provides convenient front panel serviceability allowing quick, uninterrupted installation. The AIC form-factor conveniently fits in half-height, half-length slots.
Compatibility:
This drive is compatible with any server that accepts Half Height/Half Length PCIe drives.
Intel Model Number | SSDPEDMD020T4 |
---|---|
Ordering Part Numbers | SSDPEDMD020T401 SSDPEDMD020T410 |
Capacity | 2TB/2000GB |
Interface | PCIe NVMe 3.0 x4 |
Product Specification | |
Sequential Read | 2800 MB/s |
Sequential Write | 2000 MB/s |
Random Read (100% Span) | 450000 IOPS |
Random Write (100% Span) | 175000 IOPS |
Latency - Read | 20 µs |
Latency - Write | 20 µs |
Power - Active | 25W (write), 10W (read) |
Power - Idle | 4W |
Vibration - Operating | 2.17 GRMS |
Vibration - Non-Operating | 3.13 GRMS |
Shock (Operating and Non-Operating) | 50 G Trapezoidal, 170 in/s |
Operating Temperature Range | 0°C to 55°C |
Weight (g/lb) | 195/0.430 |
Endurance Rating (Lifetime Writes) | 10.95 PBW (JEDEC Workload) |
Mean Time Between Failures (MTBF) | 2,000,000 Hrs |
Uncorrectable Bit Error Rate (UBER) | less than 1 sector per 1e17 bits read |
Form Factor | HHHL (CEM2.0) |
Lithography | 20 nm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDPEDMD020T4 SSDPEDMD020T410
Weight: 1 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
