INTEL Part #/MPN: SSDPEDME012T401
DiscTech Item #: INT-SSDPEDME012T401-BN-5Y
- Brand New
- Warranty:5 Year Manufacturer
- Low Stock:Call for ETA
Capacity: 1.2TB
Speed: Solid State
Interface Types: PCIe
Form Factor: HHHL (Half-Height/Half-Length)
Sector Size: 512 / 512e
Sustained Throughput: 2600
Average Seek Time: 20 µs/20 µs
Electrical Interface: PCIe - v3.0 - 16GBps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive / RI

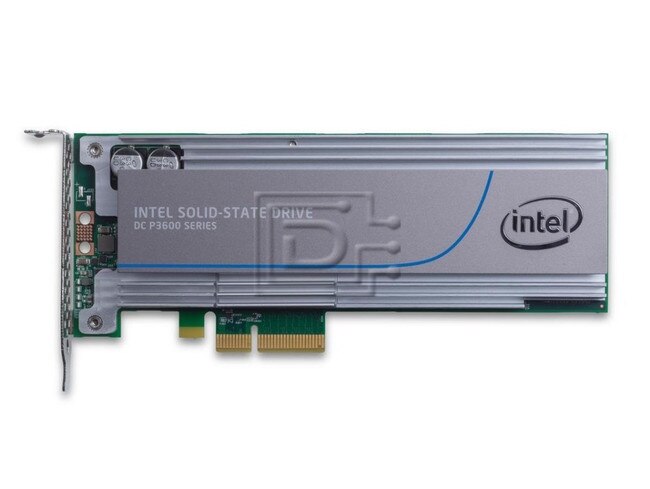

Intel SSDPEDME012T401 / SSDPEDME012T4 1.2TB Half Height DC P3600 Series PCIe NVMe 3.0 SSD - Brand New
Intel SSDPEDME012T401 / SSDPEDME012T4 1200GB 1/2 Height Data Center P3600 Series Peripheral Component Interface Express Non-Volatile Memory Express 3.0 Solid State Disk Drive - Brand New
Intel Model Number: SSDPEDME012T4
Alt. Ordering Part Number: SSDPEDME012T410
Breakthrough performance – The Intel® Solid-State Drive Data Center Family for PCIe brings extreme data throughput directly to Intel® Xeon® processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel® Solid-State Drive Data Center P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through a host bus adapter (HBA) (approximately 500K IOPS).
Modernizes data center storage – Intel led the industry in creation of a new Non-Volatile Memory Express (NVMe) storage interface standard. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology.
Comprehensive solution – Intel is driving transition to NVMe SSDs by providing a comprehensive product line, enabling extensive system compatibility, delivering Intel drivers as well as supporting industry driver development, and completing numerous industry standard compliance certifications.
Proven quality and reliability – Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility testing ensures a highly reliable SSD. The Intel® SSD Data Center Tool provides a powerful set of management capabilities.
Compatibility:
This drive is compatible with any server that accepts Half Height/Half Length PCIe drives.
| Intel Model Number | SSDPEDME012T4 |
|---|---|
| Ordering Part Numbers | SSDPEDME012T401 SSDPEDME012T410 |
| Capacity | 1.2TB/1200GB |
| Interface | PCIe NVMe 3.0 x4 |
| Product Specification | |
| Sequential Read | 2600 MB/s |
| Sequential Write | 1250 MB/s |
| Random Read (100% Span) | 450000 IOPS |
| Random Write (100% Span) | 50000 IOPS |
| Latency - Read | 20 µs |
| Latency - Write | 20 µs |
| Power - Active | 15W (write), 9W (read) |
| Power - Idle | 4W |
| Vibration - Operating | 2.17 GRMS |
| Vibration - Non-Operating | 3.13 GRMS |
| Shock (Operating and Non-Operating) | 50 G Trapezoidal, 170 in/s |
| Operating Temperature Range | 0°C to 55°C |
| Weight (g/lb) | 195/0.430 |
| Endurance Rating (Lifetime Writes) | 6.57 PBW (JEDEC Workload) |
| Mean Time Between Failures (MTBF) | 2,000,000 Hrs |
| Uncorrectable Bit Error Rate (UBER) | less than 1 sector per 1e17 bits read |
| Form Factor | HHHL (CEM2.0) |
| Lithography | 20 nm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDPEDME012T4 SSDPEDME012T410
Weight: 1 lb
Warranty: 5 Year Manufacturer
Brand New
5 Year Manufacturer Warranty
