Intel SSDPEDME016T401 1600GB PCIe SSD
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 1.6TB |
| Speed: | Solid State |
| Interface Types: | PCIe |
| Form Factor: | HHHL (Half-Height/Half-Length) |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | PCIe 3.0 16GBps |
Description

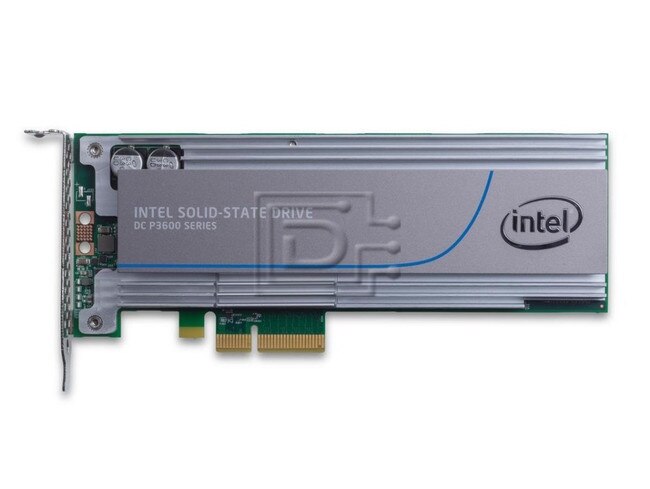

Intel SSDPEDME016T401 / SSDPEDME016T4 1.6TB Half Height DC P3600 Series PCIe NVMe 3.0 SSD - Brand New
Intel SSDPEDME016T401 1600GB 1/2 Height Data Center P3600 Series Peripheral Component Interface Express Non-Volatile Memory Express 3.0 Solid State Disk Drive - Brand New
Intel Model Number: SSDPEDME016T4
Alt. Ordering Part Number: SSDPEDME016T410
Breakthrough performance – The Intel® Solid-State Drive Data Center Family for PCIe brings extreme data throughput directly to Intel® Xeon® processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel® Solid-State Drive Data Center P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through a host bus adapter (HBA) (approximately 500K IOPS).
Modernizes data center storage – Intel led the industry in creation of a new Non-Volatile Memory Express (NVMe) storage interface standard. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology.
Comprehensive solution – Intel is driving transition to NVMe SSDs by providing a comprehensive product line, enabling extensive system compatibility, delivering Intel drivers as well as supporting industry driver development, and completing numerous industry standard compliance certifications.
Proven quality and reliability – Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility testing ensures a highly reliable SSD. The Intel® SSD Data Center Tool provides a powerful set of management capabilities.
Compatibility
This drive is compatible with any server that accepts Half Height/Half Length PCIe drives.
Specifications
| Intel Model Number | SSDPEDME016T4 |
|---|---|
| Ordering Part Numbers | SSDPEDME016T401 SSDPEDME016T410 |
| Capacity | 1.6TB/1600GB |
| Interface | PCIe NVMe 3.0 x4 |
| Product Specification | |
| Sequential Read | 2600 MB/s |
| Sequential Write | 1600 MB/s |
| Random Read (100% Span) | 450000 IOPS |
| Random Write (100% Span) | 56000 IOPS |
| Latency - Read | 20 µs |
| Latency - Write | 20 µs |
| Power - Active | 20W (write), 9W (read) |
| Power - Idle | 4W |
| Vibration - Operating | 2.17 GRMS |
| Vibration - Non-Operating | 3.13 GRMS |
| Shock (Operating and Non-Operating) | 50 G Trapezoidal, 170 in/s |
| Operating Temperature Range | 0°C to 55°C |
| Weight (g/lb) | 195/0.430 |
| Endurance Rating (Lifetime Writes) | 8.76 PBW (JEDEC Workload) |
| Mean Time Between Failures (MTBF) | 2,000,000 Hrs |
| Uncorrectable Bit Error Rate (UBER) | less than 1 sector per 1e17 bits read |
| Form Factor | HHHL (CEM2.0) |
| Lithography | 20 nm |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDPEDME016T4 SSDPEDME016T410
Weight: 1 lb
Warranty: 5 Year Manufacturer
Condition
The product is brand new.
Warranty
5 Year Manufacturer Warranty
