Intel SSDPEDME020T401 2000GB PCIe SSD

INTEL Part #/MPN: SSDPEDME020T401

DiscTech Item #: INT-SSDPEDME020T401-BN-5Y


$2,499.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$2,499.00

Capacity: 2TB

Speed: Solid State Memory

Interface Types: PCIe

Form Factor: Half-Height/Half-Length

Sector Size: 512 / 512e

Sustained Throughput: 2600

Average Seek Time: 20 µs/20 µs

Electrical Interface: PCIe - v3.0 - 32GBps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

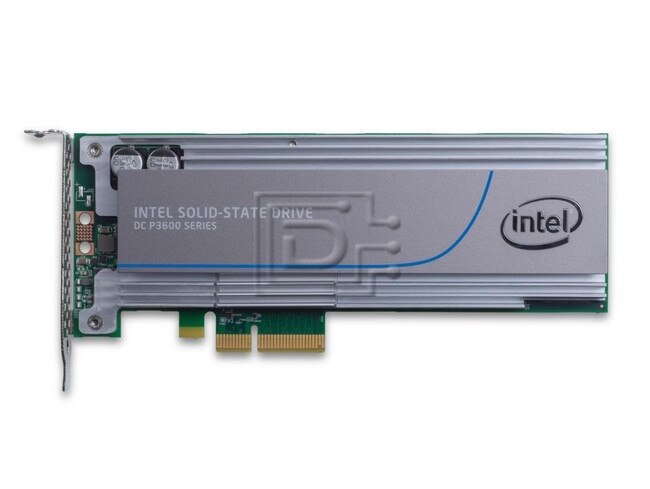

Intel SSDPEDME020T401 / SSDPEDME020T4 2TB Half Height DC P3600 Series PCIe NVMe 3.0 SSD - Brand New

Intel SSDPEDME020T401 2000GB 1/2 Height Data Center P3600 Series Peripheral Component Interface Express Non-Volatile Memory Express 3.0 Solid State Disk Drive - Brand New

Intel Model Number: SSDPEDME020T4
Alt. Ordering Part Number: SSDPEDME020T410

Breakthrough performance – The Intel® Solid-State Drive Data Center Family for PCIe brings extreme data throughput directly to Intel® Xeon® processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel® Solid-State Drive Data Center P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through a host bus adapter (HBA) (approximately 500K IOPS).

Modernizes data center storage – Intel led the industry in creation of a new Non-Volatile Memory Express (NVMe) storage interface standard. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology.

Comprehensive solution – Intel is driving transition to NVMe SSDs by providing a comprehensive product line, enabling extensive system compatibility, delivering Intel drivers as well as supporting industry driver development, and completing numerous industry standard compliance certifications.

Proven quality and reliability – Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility testing ensures a highly reliable SSD. The Intel® SSD Data Center Tool provides a powerful set of management capabilities.


Compatibility:

This drive is compatible with any server that accepts Half Height/Half Length PCIe drives.

Intel Model NumberSSDPEDME020T4
Ordering Part NumbersSSDPEDME020T401
SSDPEDME020T410
Capacity2TB/2000GB
InterfacePCIe NVMe 3.0 x4
Product Specification
Sequential Read2600 MB/s
Sequential Write1700 MB/s
Random Read (100% Span)450000 IOPS
Random Write (100% Span)56000 IOPS
Latency - Read20 µs
Latency - Write20 µs
Power - Active25W (write), 10W (read)
Power - Idle4W
Vibration - Operating2.17 GRMS
Vibration - Non-Operating3.13 GRMS
Shock (Operating and Non-Operating)50 G Trapezoidal, 170 in/s
Operating Temperature Range0°C to 55°C
Weight (g/lb)195/0.430
Endurance Rating (Lifetime Writes)10.95 PBW (JEDEC Workload)
Mean Time Between Failures (MTBF)2,000,000 Hrs
Uncorrectable Bit Error Rate (UBER)less than 1 sector per 1e17 bits read
Form FactorHHHL (CEM2.0)
Lithography20 nm

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SSDPEDME020T4 SSDPEDME020T410

Weight: 1 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
