INTEL Part #/MPN: SSDPE2MD016T401
DiscTech Item #: INT-SSDPE2MD016T401-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 1.6TB
Speed: Solid State Memory
Interface Types: PCIe
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 2800/1900
Average Seek Time: 20 µs / 20 µs
Electrical Interface: PCIe - v3.0 - 16GBps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use
Wattage/VA: 22W

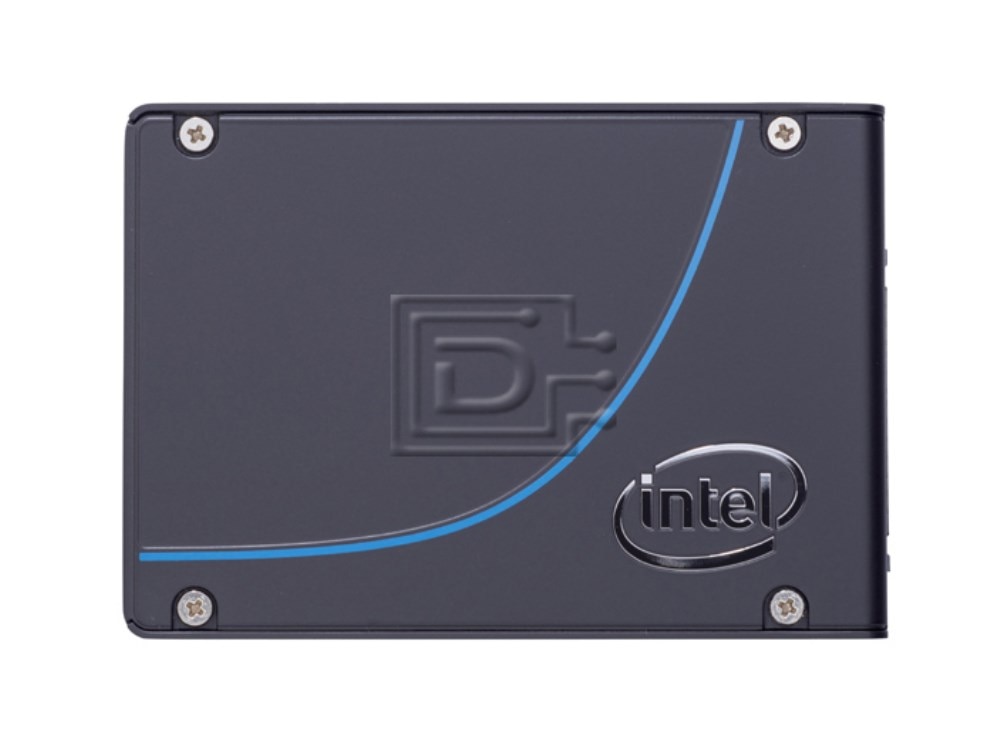

Intel SSDPE2MD016T401 / SSDPE2MD016T410 1.6TB 2.5in Mixed Use 15-DWPD MLC DC P3700 Series PCIe NVMe 3.0 SSD - Brand New
Intel SSDPE2MD016T401 1600GB 2.5" Mixed Use 15 Drive Writes Per Day Multi-Level Cell Data Center P3600 Series PCI Express / Peripheral Component Interface Express Non-Volatile Memory Express 3.0 Solid State Disk Drive - Brand New
Intel Solid State Drive Data Center Family for PCIe DC P3700 Series
Make the Switch to Faster Data
Deliver breakthrough performance with Intel PCIe Solid State Drives
Breakthrough Performance
The Intel Solid State Drive (SSD) Data Center Family for PCIe brings extreme data throughput directly to Intel Xeon processors with up to six times faster data transfer speed than 6 Gbps SAS/SATA SSDs. The Intel SSD Data Center Family for PCIe is capable of reading dat up to 2.8GB/s and 460k Input/Output Operations Per Second (IOPS) and writing up to 2.0GB/s and 175k IOPS.
The performance of a single drive from the Intel SSD Data Center Family for PCIe, specifically the Intel SSD DC P3700 Series (460K IOPS), can replace the performance of 7 SATA SSDs aggregated through an HBA (~500K IOPS). At 200IOPS per Hard Disk Drive (HDD), 2,300 15K HDDs would be need to match the performance of one Intel SSD Data Center Family for PCIe device.
Intel SSD Data Center Family for PCIe’s consistently amazing performance provides fast, unwavering data streams directly to Intel Xeon processors making server data transfers efficient. SSD performance consistency provides scalable throughput when multiple SSDs are unified into a single storage volume. The massive storage bandwidth increase fees Intel Xeon processor systems giving data center servers a performance boost.
Proven Quality and Reliability
Intel SSD Data Center Family for PCIe devices are based on Intel-developed controller, firmware, and leading manufacturing process NAND flash memory. Rigorous qualification and compatibility test ensures a high reliable SSD. By combining SSD NAND management techniques and NAND silicon enhancements, High Endurance Technology (HET) enables the Intel DC P3700 Series to achieve 17 drive writes per day ove a five year drive life.
Modernize Data Center Storage
NVMe is engineered for current and future Non-Volatile Memory (NVM) technologies, unlike SAS/SATA SSDs. NVMe overcomes SAS/SATA SSD performance limitations by optimizing hardware and software to take full advantage of NVM SSD technology. Intel Xeon processors efficiently transfer data in fewer clock cycles with the NVMe optimized software stack compared to the legacy Advanced Host Controller Interface (AHCI) stack, reducing latency and overhead. Direct CPU connection also eliminates Host-Bus-Adapter cards, further reducing latency and TCO.
Comprehensive Solution
Intel’s product line enables extensive system compatibility, completes numerous industry standard compliance certifications, and delivers Intel drivers, supporting industry drive development. The Intel SSD Data Center Family for PCIe provides a full range of endurance up to 17 full-capacity writes per day, capacity up to 2TB, and 2.5-inch and ADD-in Card (AIC) form factors. Intel-enabled NVMe software drivers are provide by major operating system vendors including Microsoft Server 2012 and 2008, Windows 7, 8, and 8.1, Read Hat 7.0/6.6/6.5, SLES 11 SP3, UEFI, 2.3.1, and Linux Open Source development community. The new 2.5 inch form factor with hot-swap capability provides convenient front panel serviceability allowing quick, uninterrupted installation. The AIC form factor conveniently fits in half-height, half-length (HHHL) slots.
Alternate MPN: SSDPE2MD016T410
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) PCIe drives.
Intel SSD DC P3700 Series | |
---|---|
Model/Part No. | SSDPE2MD016T401 |
Alt Model/Part No. | SSDPE2MD016T410 |
Capacity | 1.6TB/1,600GB |
Lithogratphy Type | 20nm |
Performance | |
Sequential Read (up to) | 2800 MB/s |
Sequential Write (up to) | 1900 MB/s |
Random Read (100% Span) | 450000 IOPS |
Random Write (100% Span) | 150000 IOPS |
Latency - Read | 20 µs |
Latency - Write | 20 µs |
Power - Active | 22W (write), 10W (read) |
Power - Idle | 4W |
Reliability | |
Vibration - Operating | 2.17 GRMS |
Vibration - Non-Operating | 3.13 GRMS |
Shock (Operating and Non-Operating) | 1000G/0.5msec |
Operating Temerature Range | 0°C to 70°C |
Endurance Rating (Lifetime Writes) | 43.8 PBW (JEDEC Workload), 15 DWPD |
Mean Time Between Failure (MTBF) | 2,000,000 Hrs |
Uncortectable Bit Error Rate (UBER) | less than 1 sector per 1e17 bits read |
Package Specifications | |
Weight | 125g/0.28lbs |
Form Factor | 2.5" 15mm |
Interface | PCIe NVMe 3.0 x4 |
Advanced Technologies | |
Enhanced Power Loss Data Protection | Yes |
High Endurance Technology (HET) | Yes |
Temperature Moitoring and Logging | Yes |
End-to-End Data Protection | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDPE2MD016T410
Weight: 1 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
