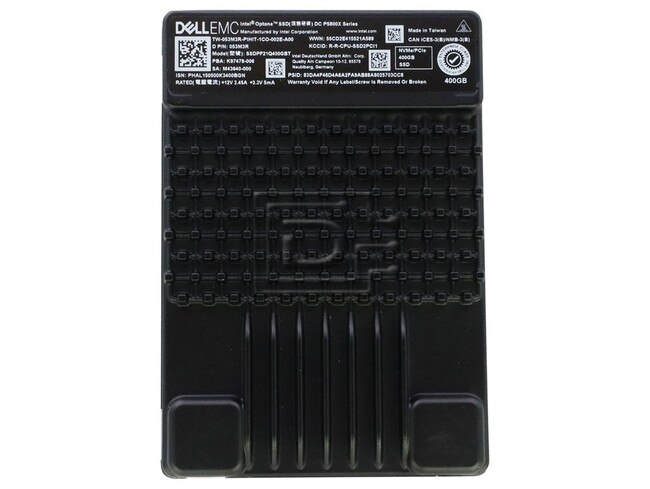

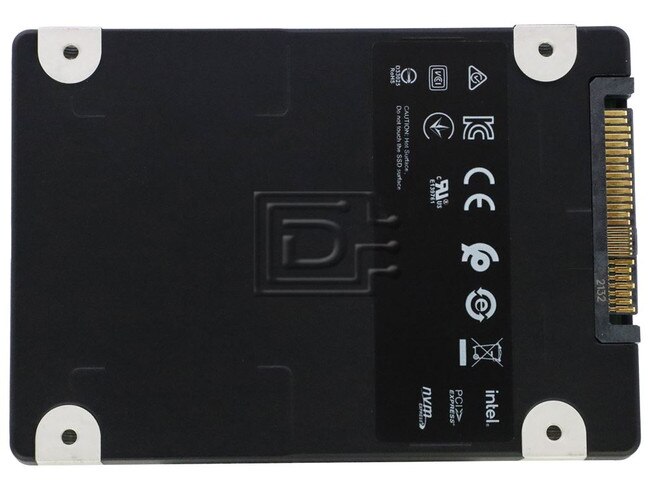

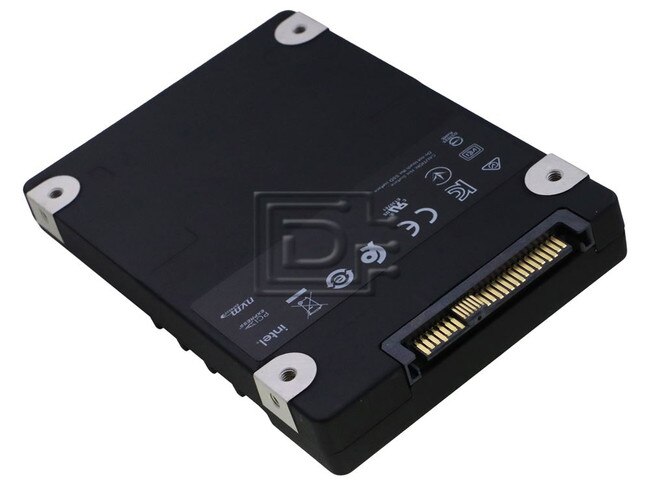

Dell 53M3R / Intel SSDPF21Q400GBT 400GB 2.5" DC P5800X Series NVMe U.2 PCIe 4.0 X4 SSD Write Intensive 100 DWPD SSD 53M3R 053M3R

INTEL Part #/MPN: SSDPF21Q400GBT

DiscTech Item #: INT-SSDPF21Q400GBT-BN-OE-DEL


$995.00
$995.00

Enterprise Grade

Capacity: 400GB

Speed: Solid State Memory

Interface Types: NVMe U.2, PCIe

Form Factor: 2.5inx15mm SFF Server Drive

Sustained Throughput: 7200/6200

Electrical Interface: PCIe - v4.0 - 32GBps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Write Intensive

Dell 53M3R / Intel SSDPF21Q400GBT 400GB 2.5" DC P5800X Series NVMe U.2 PCIe 4.0 X4 SSD Write Intensive 100 DWPD SSD 53M3R 053M3R - Brand New

Dell 53M3R / Intel SSDPF21Q400GBT 400GB 2.5" DC P5800X Series NVMe U.2 PCIe 4.0 X4 SSD Write Intensive 100 DWPD SSD 53M3R 053M3R - Brand New

Intel Model Number: SSDPF21Q400GBT

Dell DPN: 53M3R 053M3R

Intel Optane SSD P5800X series delivers high throughput and low latency – Intel Optane SSD P5800X series can accelerate access to the large and complex datasets that enterprises and cloud service providers (CSPs) need to run their high-demand workloads.

Demanding workloads are held back by legacy storage – Today’s data-intensive workloads demand low latency and high throughput to help drive predictive business decisions. IT organizations must try to meet those demands within ever-more-constrained budgets. DRAM and NAND have historically acted as the performance buffer between compute and capacity storage, but they both leave an ever-widening gap for the modern, scaled-out data center. DRAM can be too expensive to scale, which means that density might fall further behind relative to the CPU-core growth rate. NAND offers capacity with lower cost and greater scalability, but even fast NAND solid state drives (SSDs) are no longer adequate for data-driven applications that need to predictively access and process data or act as a buffer to today’s multi-gigabit Ethernet network connections.

Closing the performance gap – The Intel Optane SSD P5800X series delivers low latency, high quality of service (QoS), fast throughput, and high endurance. These high-capacity SSDs fill the critical storage performance gap, making them ideal for caching or data tiering. Unlike NAND SSDs, Intel Optane SSDs use write-in-place technology, which enables them to read and write simultaneously without performance degradation.

Blazing fast performance – The PCIe 4.0–compliant Intel Optane SSD P5800X series delivers consistent low-latency performance for applications that need to access and process data in real time. The drives can also act as buffers to fast Ethernet network interface card (NIC) connections. The Intel Optane SSD P5800X series can reach up to 1.5M input/output operations per second (IOPS) of random read or random write performance at low queue depths (QDs). The PCIe bus is designed as a bidirectional bus, with both reads and writes. Because of this, the Intel Optane SSD P5800X series can achieve greater-than-specification-sheet performance—up to 2M IOPS—under 70/30 random mixed workloads (see Figure 2).1 Compared to the Samsung PM1735 NVM Express (NVMe) NAND SSD, the Intel Optane SSD P5800X series delivers up to 2.2x higher KIOPS at 70/30 random mixed workloads.

Unrivaled low random read latency – The low-latency Intel Optane SSD P5800X series delivers near-nanosecond response times under any workload, maintaining consistent read response times, regardless of the write throughput. Near-nanosecond latency means improved application response times. With its bidirectional capability, the low latency of the Intel Optane SSD P5800X series remains consistent until saturation. Latency is improved even more by being able to read smaller 512B data chunks. For industries like financial services, this capability means businesses can get faster time to insight for fraud detection, analytics, compliance, market modeling, and securities market transactions.


Compatibility:

This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard Drive) PCIe drives.

Intel Model NumberSSDPF21Q400GBT
DELL Part Number53M3R 053M3R
Product Specification
Capacity400GB
InterfacePCIe NVMe 4.0 x4
Sequential Read7200 MB/s
Sequential Write6200 MB/s
Random Read (100% Span)1500000 IOPS
Random Write (100% Span)1500000 IOPS
Hardware EncryptionAES 256 bit
Enhanced Power Loss Data ProtectionYes
Power - Active21W
Power - Idle4.7W
Vibration - Operating2.17 GRMS
Vibration - Non-Operating3.13 GRMS
Shock (Operating and Non-Operating)1000G/0.5msec
Operating Temperature Range0°C to 70°C
Weight (g/lb)115/0.254
Endurance Rating (Lifetime Writes)100 DWPD
Mean Time Between Failures (MTBF)2,000,000 Hrs
Uncorrectable Bit Error Rate (UBER)less than 1 sector per 10e17 bits read
Form Factor2.5" 15mm
ComponentsIntel(R) Optane (TM) Memory Media

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 53M3R 053M3R

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
