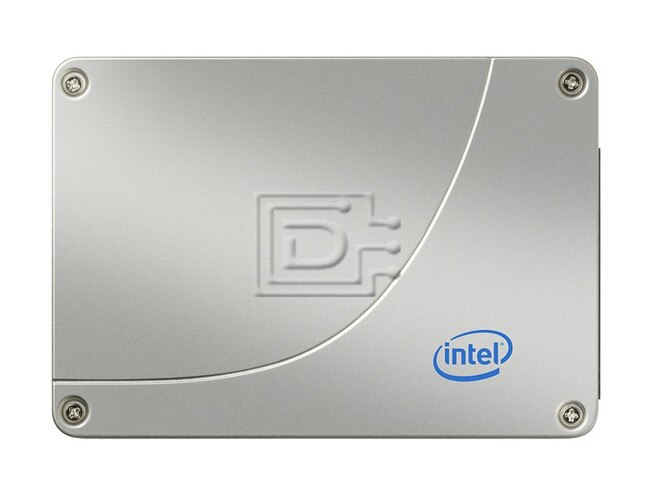

Intel SSDSA2BW120G301 120GB 2.5" 3Gbps MLC 320 Series SATA SSD

INTEL SSDSA2BW120G301 SSDSA2BW120G3 SATA SSD image

INTEL Part #/MPN: SSDSA2BW120G301

DiscTech Item #: INT-SSDSA2BW120G301-BN-OE

$195.00

Brand New
Condition Levels Explained
The product is brand new.
Warranty:1 Year DiscTech
Product Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
Low Stock:Call for ETA
Stock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back

$195.00

Capacity: 120GB

Speed: Solid State

Interface Types: SATA

Form Factor: 2.5" x 7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 270

Electrical Interface: SATA 300 - 3Gbps

SSD Type: MLC

Intel SSDSA2BW120G301 / SSDSA2BW120G3 120GB 2.5in 3Gbps MLC 320 Series SATA SSD - Brand New

Intel SSDSA2BW120G301 120GB 2.5" 3.0 Gbps Multi-Level Cell 320 Series Serial Advanced Technology Attachment Solid State Disk Drive - Brand New

Intel Model Number: SSDSA2BW120G3

Overview

The Intel SSD 320 Series delivers leading performance for Serial Advanced Technology Attachment (SATA)-based computers by combining Intel's leading 25nm NAND Flash Memory technology with SATA 3Gb/s interface support, the Intel SSD 320 Series delivers sequential read speeds of up to 270 MB/s and sequential write speeds of up to 220 MB/s. The industry-standard form factors enable interchangeability with existing hard disk drives (HDDs) and native SATA HDD drop-in replacement with the enhanced performance, reliability, ruggedness, and power savings offered by an SSD.

As compared to standard SATA HDDs, the Intel SSD 320 Series offers these key features:

High I/O and throughput performance
Low power
Increased system responsiveness
High reliability
Enhanced ruggedness

Hot Plug Support

Hot Plug insertion and removal is supported in the presence of a proper connector and appropriate operating system (OS), as described in the SATA 2.6 specification. This product supports asynchronous signal recovery and issues an unsolicited COMINIT when first mated with a powered connector to guarantee reliable detection by a host system without hardware device detection.

SMART Logs

The Intel SSD 320 Series implements the following Log Addresses: 00h, 02h, 03h, 06h, and 07h. The Intel SSD 320 Series implements host vendor specific logs (addresses 80h-9Fh) as read and write scratchpads, where the default value is zero (0). Intel SSD 320 Series does not write any specific values to these logs unless directed by the host through the appropriate commands. The Intel SSD 320 Series also implements a device vendor specific log at address A9h as a read-only log area with a default value of zero (0).

Device Statistics

In addition to the SMART attribute structure, statistics pertaining to the operation and health of the Intel SSD 320 Series can be reported to the host on request through the Device Statistics log as defined in the ATA specification. The Device Statistics log is a read-only GPL/SMART log located at read log address 0x04 and is accessible using READ LOG EXT, READ LOG DMA EXT or SMART READ LOG commands.

Compatibility:

This drive is compatible wth any server that accepts 2.5"x7mm (Thin / Case) SATA Drives.

Intel Model Number	SSDSA2BW120G3
Ordering Part Number	SSDSA2BW120G301
Capacity	120GB
Form Factor	2.5" 7mm
Interface	SATA 3.0 (3Gb/s)
Lithography	25 nm
Components	Intel NAND Flash Memory Multi-Level Cell (MLC) Technology
Essentials
Sequential Read	270 MB/s
Sequential Write	130 MB/s
Random Read (8GB Span)	38000 IOPS
Random Read (100% Span)	38000 IOPS
Random Write (8GB Span)	14000 IOPS
Random Write (100% Span)	400 IOPS
Latency - Read	75 µs
Latency - Write	90 µs
Power - Active	150 mw (MobileMark 2007 Workload), 2.0 W (64K Sequential Write)
Power - Idle	100 mw (DIPM), .7 W (Non-DIPM)
Vibration - Operating	2.17 GRMS (5-700 Hz)
Vibration - Non-Operating	3.13 GRMS (5-800 Hz)
Shock (operating and Non-Operating)	1,500 G/.5 msec
Operating Temperature Range	0°C to 70°C
Mean Time Between Failures (MTBF)	1,200,000 Hours
Uncorrectoable Bit Error Rate (UBER)	1 sector per 100,000,000,000,000,000
Enhanced Power Loss Data Protection	Yes
Weight (g/lb)	90/0.198
