INTEL Part #/MPN: SSDSA2CT040G310
DiscTech Item #: INT-SSDSA2CT040G310-RF-OE
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) & repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Sustained Throughput: 200
Electrical Interface: SATA 300 - 3.0Gbps
SSD Type: MLC

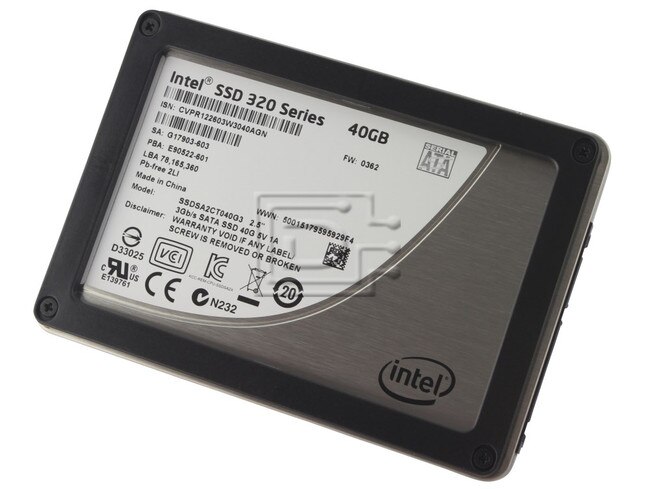

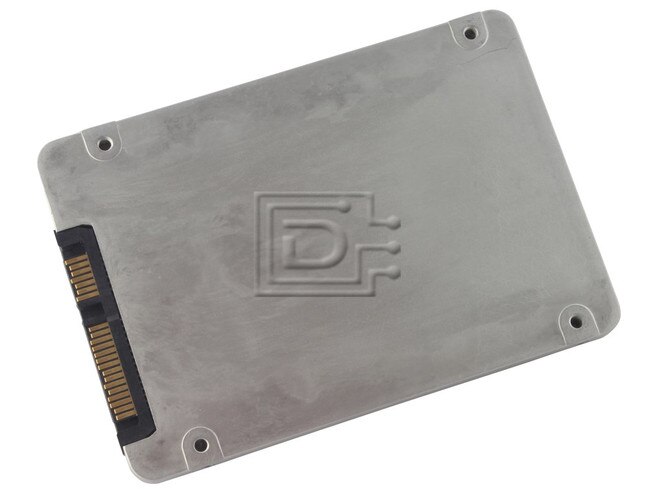

Intel 320 Series SSDSA2CT040G310 / SSDSA2CT040G3 40GB 2.5in 3Gbps MLC SATA SSD - Refurbished
Intel 320 Series SSDSA2CT040G310 40GB 2.5" 3.0 Gbps Multi-Level Cell Serial Advanced Technology Attachment Solid State Disk Drive - Refurbished
Intel Model Number: SSDSA2CT040G3
Alt Ordering Part Nunber: SSDSA2CT040G301
The Intel SSD 320 Series delivers leading performance for Serial Advanced Technology Attachment (SATA)-based computers by combining Intel's leading 25nm NAND Flash Memory technology with SATA 3Gb/s interface support, the Intel SSD 320 Series delivers sequential read speeds of up to 270 MB/s and sequential write speeds of up to 220 MB/s. The industry-standard form factors enable interchangeability with existing hard disk drives (HDDs) and native SATA HDD drop-in replacement with the enhanced performance, reliability, ruggedness, and power savings offered by an SSD.
As compared to standard SATA HDDs, the Intel SSD 320 Series offers these key features:
- High I/O and throughput performance
- Low power
- Increased system responsiveness
- High reliability
- Enhanced ruggedness
Hot Plug Support
Hot Plug insertion and removal is supported in the presence of a proper connector and appropriate operating system (OS), as described in the SATA 2.6 specification. This product supports asynchronous signal recovery and issues an unsolicited COMINIT when first mated with a powered connector to guarantee reliable detection by a host system without hardware device detection.
The Intel SSD 320 Series implements the following Log Addresses: 00h, 02h, 03h, 06h, and 07h. The Intel SSD 320 Series implements host vendor specific logs (addresses 80h-9Fh) as read and write scratchpads, where the default value is zero (0). Intel SSD 320 Series does not write any specific values to these logs unless directed by the host through the appropriate commands. The Intel SSD 320 Series also implements a device vendor specific log at address A9h as a read-only log area with a default value of zero (0).
In addition to the SMART attribute structure, statistics pertaining to the operation and health of the Intel SSD 320 Series can be reported to the host on request through the Device Statistics log as defined in the ATA specification. The Device Statistics log is a read-only GPL/SMART log located at read log address 0x04 and is accessible using READ LOG EXT, READ LOG DMA EXT or SMART READ LOG commands.
This drive is compatible with all servers that accepts 2.5"x9mm (Fits in ALL laptops) SATA drives.
|Intel Model Number||SSDSA2CT040G3|
|Ordering Part Numbers||SSDSA2CT040G310 / SSDSA2CT040G301|
|Form Factor||2.5" x 9.5mm|
|Interface||SATA 3.0 (3Gb/s)|
|Components||Intel NAND Flash Memory Multi-Level Cell (MLC) Technology|
|Sequential Read||200 MB/s|
|Sequential Write||45 MB/s|
|Random Read (8GB Span)||30000 IOPS|
|Random Read (100% Span)||30000 IOPS|
|Random Write (8GB Span)||3700 IOPS|
|Random Write (100% Span)||300 IOPS|
|Latency - Read||75 µs|
|Latency - Write||90 µs|
|Power - Active||150 mw (MobileMark 2007 Workload), 2.0 W (64K Sequential Write)|
|Power - Idle||100 mw (DIPM), .7 W (Non-DIPM)|
|Vibration - Operating||2.17 GRMS (5-700 Hz)|
|Vibration - Non-Operating||3.13 GRMS (5-800 Hz)|
|Shock (operating and Non-Operating)||1,500 G/.5 msec|
|Operating Temperature Range||0°C to 70°C|
|Mean Time Between Failures (MTBF)||1,200,000 Hours|
|Uncorrectoable Bit Error Rate (UBER)||1 sector per 100,000,000,000,000,000|
|Enhanced Power Loss Data Protection||Yes|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: SSDSA2CT040G301 SSDSA2CT040G3 INTELSSDSA2CT04
Weight: 0.5 lb
Warranty: 1 Year DiscTech
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
