INTEL Part #/MPN: SSDSC2BA100G301
DiscTech Item #: INT-SSDSC2BA100G301-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:27Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 100GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Electrical Interface: SATA 600 - 6.0Gbps

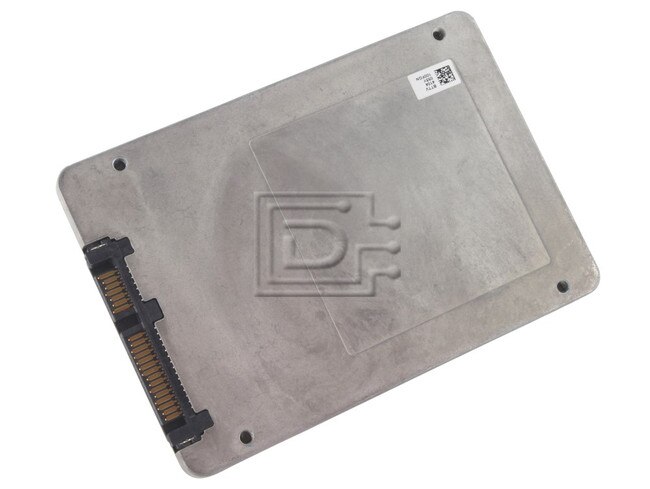

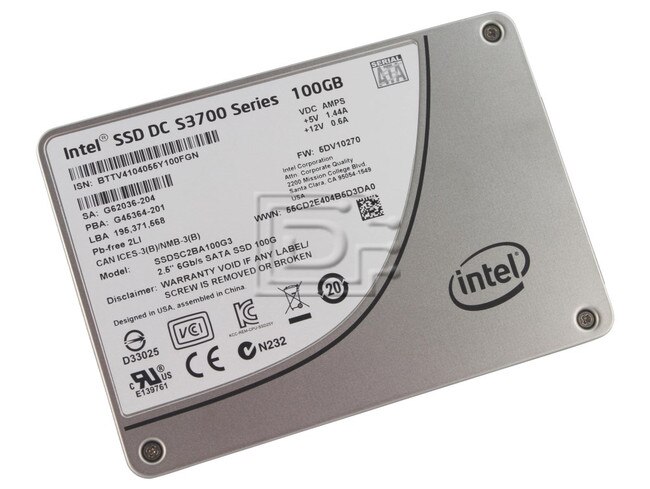

Intel DC S3700 SSDSC2BA100G301 / SSDSC2BA100G3 100GB 2.5in 6Gbps SATA MLC SSD - New Pull
Intel Data Center S3700 SSDSC2BA100G301 100GB 2.5" 6.0 Gbps Serial Advanced Technology Attachment Multi-Level Cell Solid State Disk Drive - New Pull
Intel Model Number: SSDSC2BA100G3
Ensuring fast and consistent command response times with low power consumption, the Intel® Solid-State Drive DC S3700 delivers superior performance with 4 KB random read performance of up to 75,000 input/output operations per second (IOPS)1 and 4 KB write performance of up to 36,000 IOPS2 while reducing overall energy costs. In addition to efficient performance, the Intel® SSD DC S3700 protects data loss and corruption with full end-to-end security. Combining an advanced error correction scheme in the NAND, SRAM, and DRAM memory, this Intel SSD also protects data in transit through parity checks, cyclic redundancy checks (CRC), and logical block address (LBA) tag validation. Furthering data assurance is the Advanced Encryption Standard (AES) and enhanced power-loss protection. And with High Endurance Technology (HET), the Intel SSD DC S3700 meets the most demanding write needs, achieving ten writes per day over a five-year life.
Compatibility:
This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA drives
| Model Number | SSDSC2BA100G3 |
|---|---|
| Ordering Part Number | SSDSC2BA100G301 |
| Capacity | 100GB |
| Performance | |
| Interface Type | SATA |
| Sequential Read | 500 MB/s |
| Sequential Write | 200 MB/s |
| Random Read (8GB Span) | 75000 IOPS |
| Random Write (8GB Span) | 19000 IOPS |
| Latency - Read | 50 µs |
| Latency - Write | 65 µs |
| Power - Active | 2.9W |
| Power - Idle | 650mW |
| Vibration - Operating | 2.17 Grms |
| Vibration - Non-Operating | 3.13 Grms |
| Shock (Operating and Non-Operating) | 1,000 G/0.5 msec |
| Operating Temperature Range | 0°C to 70°C |
| Mean Time Between Failures (MTBF) | 2,000,000 Hours |
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^16 bits read |
| Physical | |
| Height (in/mm) | 0.276/7.0 |
| Weight (lb/g) | 0.159/72.0 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: SSDSC2BA100G3
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
