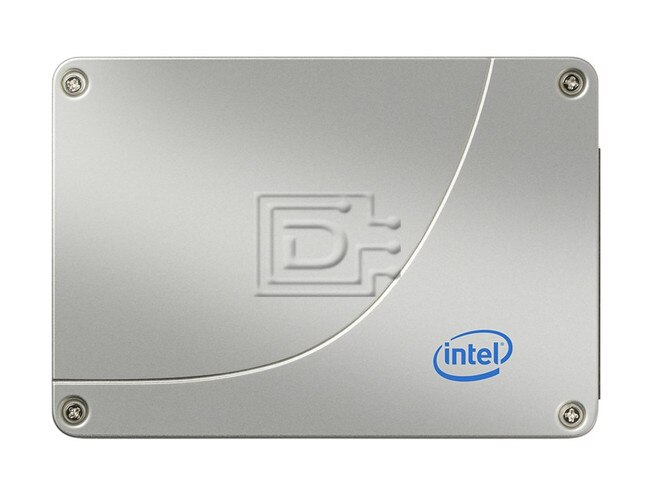

Intel SSDSC2BA200G301 200GB SATA SSD

INTEL SSDSC2BA200G301 SSDSC2BA200G3 SSDSC2BA200G301 SATA SSD Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 5 Year ManufacturerWarranty
    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

$415.00

Capacity:200GB
Speed:Solid State
Interface Types:SATA
Form Factor:2.5" x 7mm Fits All laptops
SSD Endurance DWPD:Enterprise Mixed Use / MU
Electrical Interface:SATA 600 - 6Gbps
Click to see more 200GB SATA Solid State Drives

Description

Intel SSDSC2BA200G301 / SSDSC2BA200G3 200GB 2.5in 6Gbps DC S3700 SATA MLC SSD - Brand New

Intel SSDSC2BA200G301 200GB 2.5" 6.0 Gbps Data Center S3700 Serial Advanced Technology Attachment Multi-Level Cell Solid State Disk Drive - Brand New

Intel Model Number: SSDSC2BA200G3

Ensuring fast and consistent command response times with low power consumption, the Intel® Solid-State Drive DC S3700 delivers superior performance with 4 KB random read performance of up to 75,000 input/output operations per second (IOPS)1 and 4 KB write performance of up to 36,000 IOPS2 while reducing overall energy costs. In addition to efficient performance, the Intel® SSD DC S3700 protects data loss and corruption with full end-to-end security. Combining an advanced error correction scheme in the NAND, SRAM, and DRAM memory, this Intel SSD also protects data in transit through parity checks, cyclic redundancy checks (CRC), and logical block address (LBA) tag validation. Furthering data assurance is the Advanced Encryption Standard (AES) and enhanced power-loss protection. And with High Endurance Technology (HET), the Intel SSD DC S3700 meets the most demanding write needs, achieving ten writes per day over a five-year life.

Compatibility

This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA Drives.

Specifications

Intel Model NumberSSDSC2BA200G3
Ordering Part NumberSSDSC2BA200G301
Capacity200GB
Performance
Interface TypeSATA
Sequential Read500 MB/s
Sequential Write365 MB/s
Random Read (8GB Span)75000 IOPS
Random Write (8GB Span)32000 IOPS
Latency - Read50 µs
Latency - Write65 µs
Power - Active4.4W
Power - Idle650mW
Vibration - Operating2.17 Grms
Vibration - Non-Operating3.13 Grms
Shock (Operating and Non-Operating)1,000 G/0.5 msec
Operating Temperature Range0°C to 70°C
Mean Time Between Failures (MTBF)2,000,000 Hours
Uncorrectable Bit Error Rate (UBER)1 sector per 10^17 bits read
Physical
Height (in/mm)0.276/7.0
Weight (lb/g)0.159/72.0
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: SSDSC2BA200G3

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Condition

Brand New

Warranty

5 Year Manufacturer Warranty
